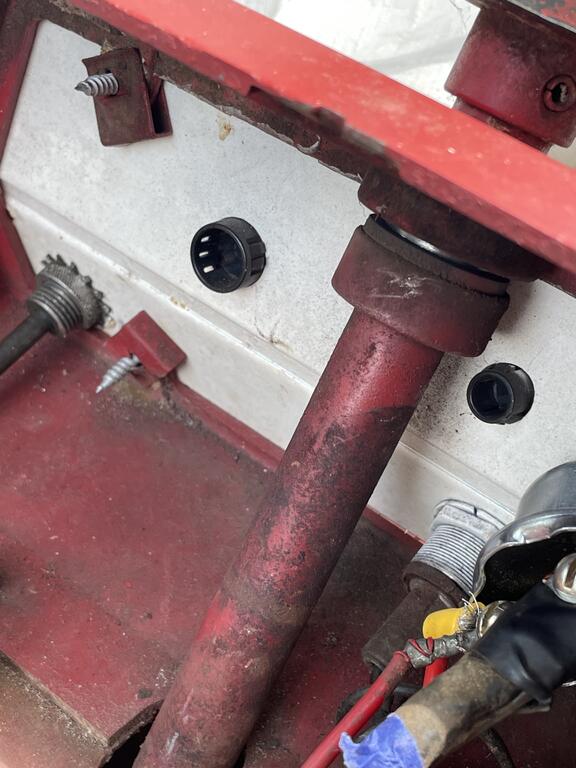

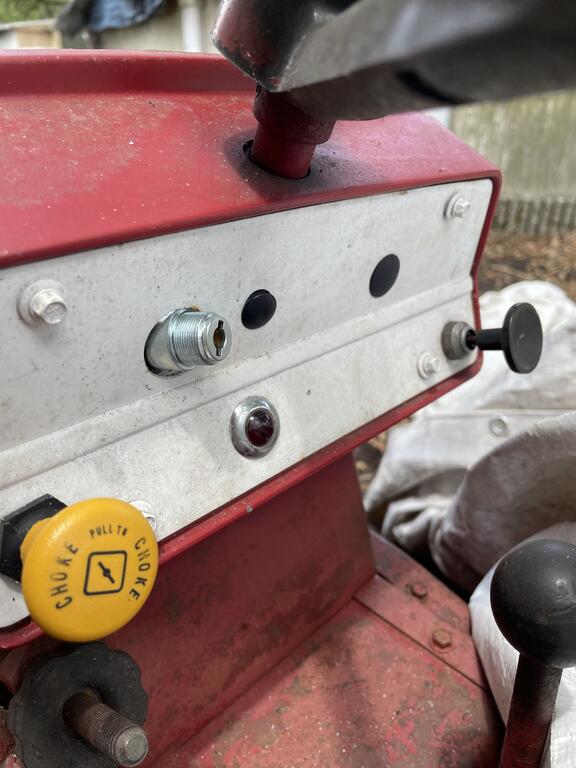

FLtractor 163 #1 Posted April 19 Afternoon, In process wiring new ignition.. what is supposed to go in these black plastic plugged holes? Cigarette lighter goes in.. larger one? What about smaller? Share this post Link to post Share on other sites

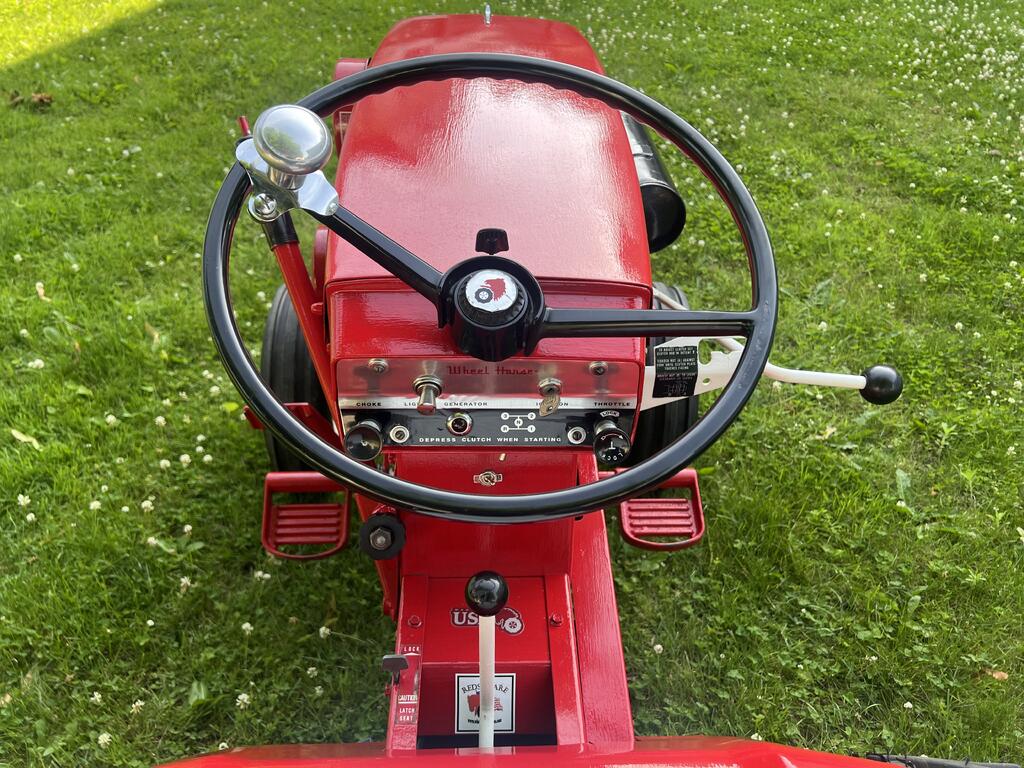

Thegearhead0324 1,534 #2 Posted April 19 It’s not exact but very similar, should go little something like this pic of my 1257. 2 Share this post Link to post Share on other sites
ri702bill 12,169 #3 Posted April 19 With the "Ejector Seat" lever on the lower left!! 5 Share this post Link to post Share on other sites
squonk 46,656 #4 Posted April 19 2 minutes ago, ri702bill said: With the "Ejector Seat" lever on the lower left!! There's a nut you tighten to make that latch movement a little stiffer. I was driving along a few years back and didn't notice that lever vibrated rearward. Next thing I knew the tractor was 10 feet in front of me and pulling away! 3 Share this post Link to post Share on other sites
FLtractor 163 #5 Posted April 19 1 hour ago, Thegearhead0324 said: It’s not exact but very similar, should go little something like this pic of my 1257. Thank you for the picture… do you happen to have a link for that beautiful chrome lighter that matches? You got that dash decal from redoyourhorse? Share this post Link to post Share on other sites
Thegearhead0324 1,534 #6 Posted April 19 @FLtractor , the cig lighter is original, also works too. The decal I got from redoyourhorse, there are a lot of decals on there, very good quality as I’ve ordered a few times. 1 Share this post Link to post Share on other sites
FLtractor 163 #7 Posted April 19 12 minutes ago, Thegearhead0324 said: @FLtractor , the cig lighter is original, also works too. The decal I got from redoyourhorse, there are a lot of decals on there, very good quality as I’ve ordered a few times. Oh ok. Thank you for the info 1 Share this post Link to post Share on other sites
Retired Wrencher 6,690 #8 Posted April 20 (edited) FL tractor Just remember to use 6ga wire for the key switch if you are not using the original wires. . Edited April 21 by Retired Wrencher Share this post Link to post Share on other sites
Racinbob 12,980 #9 Posted April 20 18 hours ago, ri702bill said: With the "Ejector Seat" lever on the lower left!! I installed a spring underneith to hold that thing latched on my 500 Special project. Share this post Link to post Share on other sites

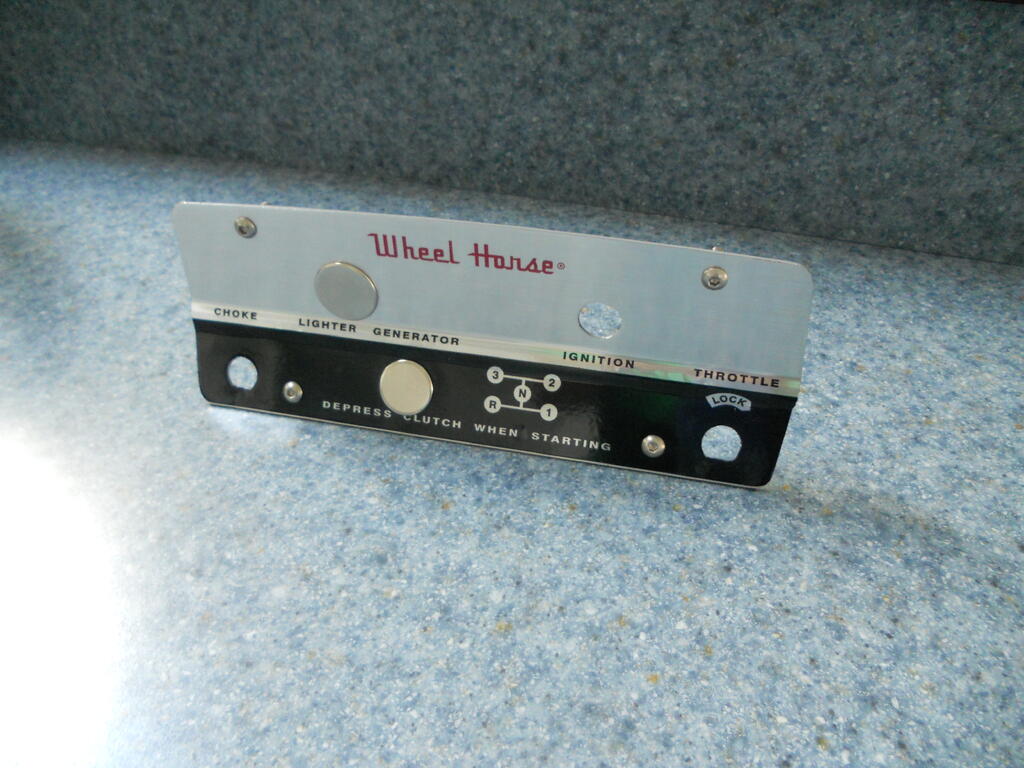

Racinbob 12,980 #10 Posted April 20 (edited) @FLtractor Take a peek at these offerings by Redo. I used one on the Indy. METAL DASH PLATE DECALS - Redo Your Horse Edited April 20 by Racinbob 1 1 Share this post Link to post Share on other sites
FLtractor 163 #11 Posted April 21 On 4/20/2026 at 6:49 AM, Retired Wrencher said: FL tractor Just remember to use 6ga wire for the key switch if you are not using the original wires. . For the battery and starter wires to igntion correct? 6 ga wire for those only Share this post Link to post Share on other sites
Retired Wrencher 6,690 #12 Posted April 22 (edited) Yes one on the positive side to the of the key switch to the positive side of the battery. Then one from the ground to the star generator the rest is just normal wire. Find you tractor in the manual section being at 856 will be there towards the front of the manual. It’ll have the wiring diagram. I think there’s only four wires if I remember correctly. Edited April 22 by Retired Wrencher Share this post Link to post Share on other sites
