Racinbob

Small Block Starter Refresh

Recommended Posts

Racinbob

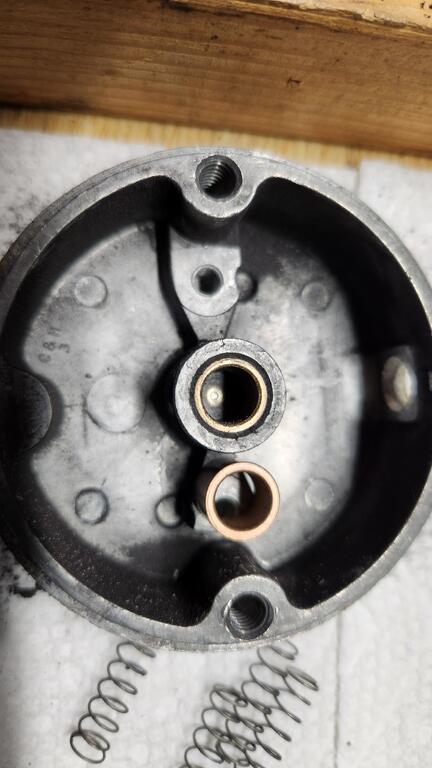

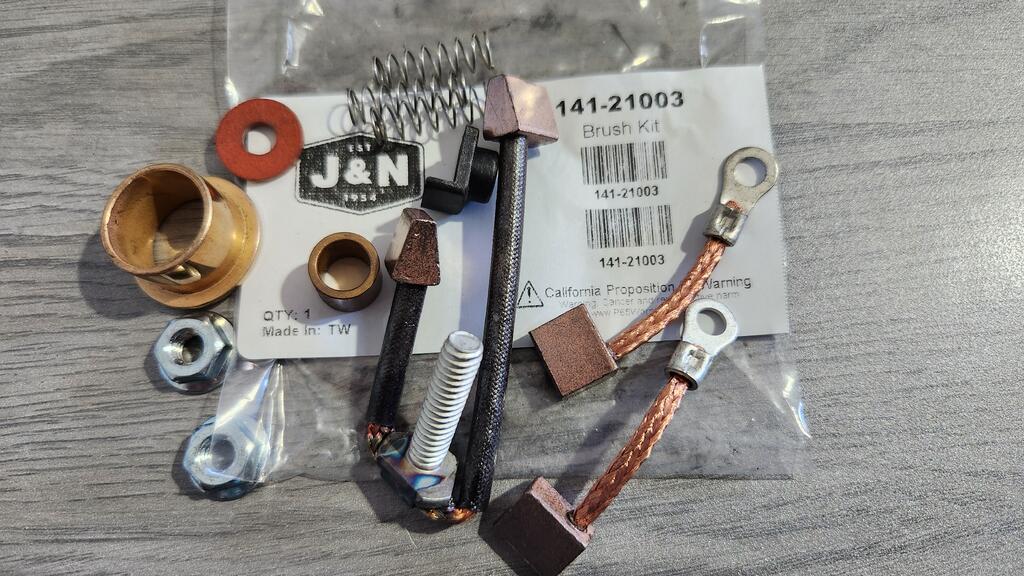

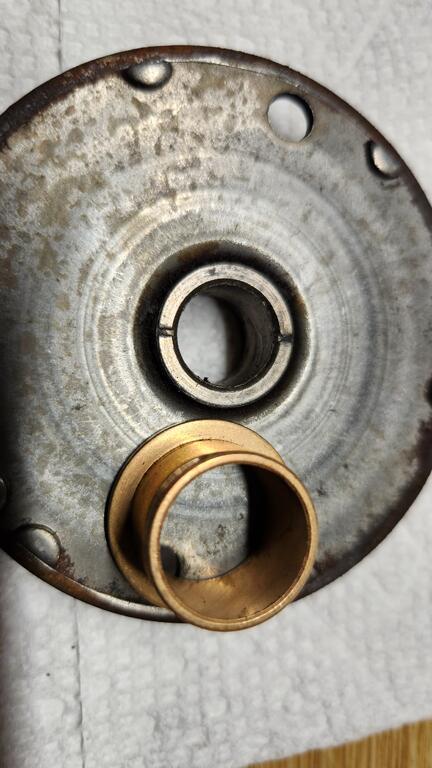

It's been a few months since I put a new starter on the K-181 for the reborn B-80. I purchased the rebuild kit for the old one but have yet to find one with the correct bushing on the gear end. The brush end was correct. This morning I just decided to clean it up, lube the bushings and put it back together. It's just going to be sitting on the shelf as a spare.




Small_Block_Starter_d.jpg.8567b4fc9f1495503cdc72fda6d5523e.jpg2061512620_SmallBlockStarterc.jpg.441a11af51122224aa429c959a81739c.jpgSmall_Block_Starter_e.jpg.5a3877332fd8db756146b89948a962d6.jpg

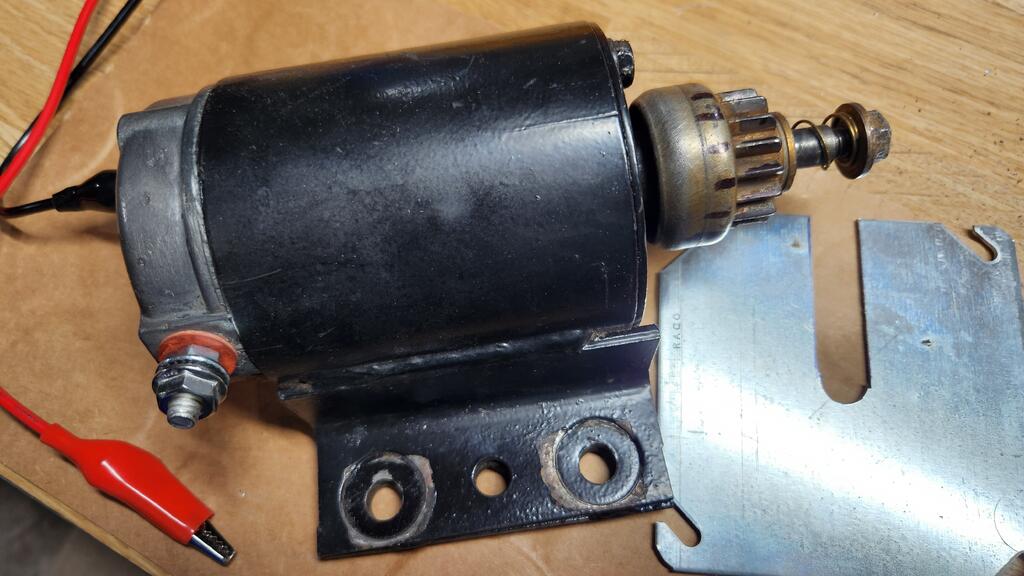

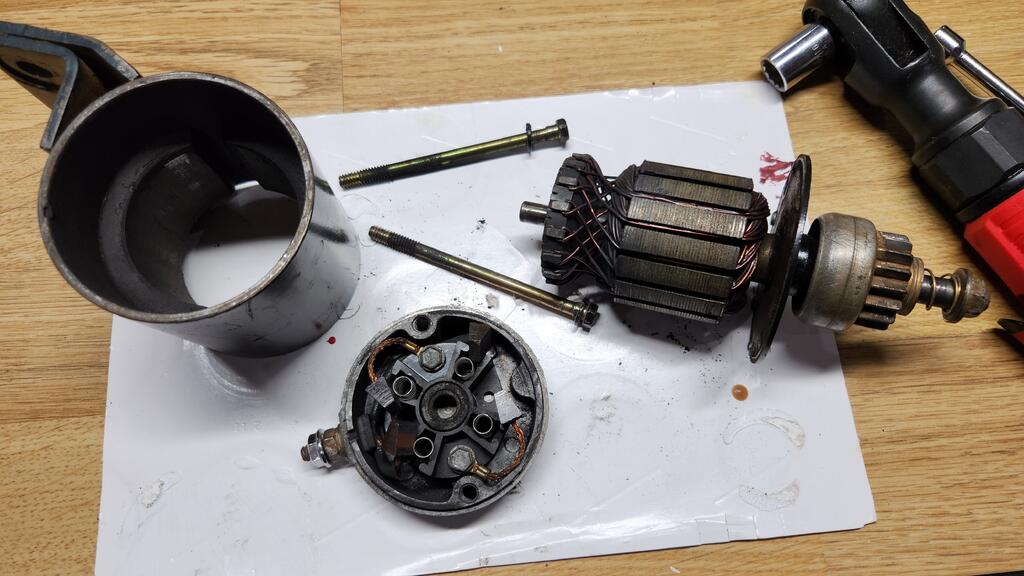

I cleaned up the important stuff, put new brushed in and reassembled it. Leave it to an old electrician to use a 4" sq cover to whip up a hold the brushes down while you put the end cap back on tool. It worked great. Tested and It's good to go.
