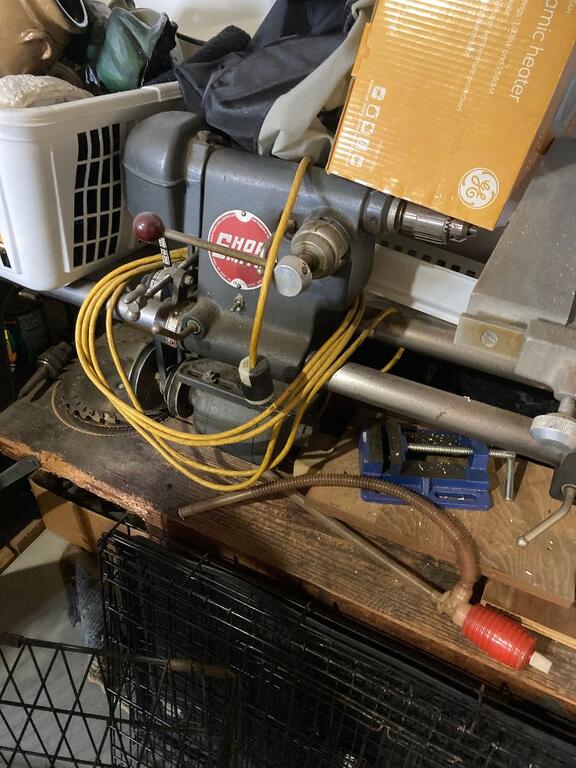

ri702bill 10,595 #1 Posted 8 hours ago There was a fair amount of wear on the ends of the C81 Clutch Shaft where it goes thru the frame. Metal on metal, no bearings & not easily lubricated. I installed the bronze bushings on the 502 frame a while back, using the milling machine. The C Series has two sets of welded 3/4" diameter rods to hold the foot rests, the rear ones were in the way - could not do this in the milling machine. There were 3 choices - cut the rear rods off & reweld them later, do the work by hand, or - break out the 1950's ShopSmith 10E and use it. I went with option #3 - while the assembly & setup are extensive, it gives the best results. Pictures are for the RH bearing: the setup needs to come apart and be reassembled opposite hand to do the left. 8 Share this post Link to post Share on other sites
