314A snow plow lever

[Gabe 29]

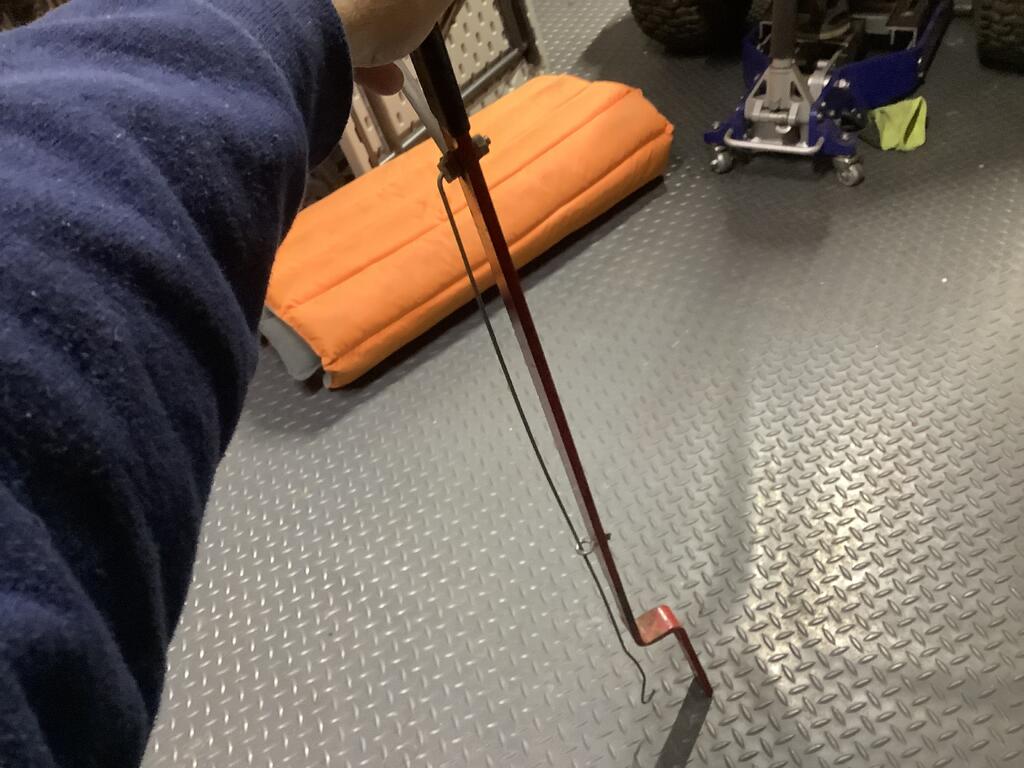

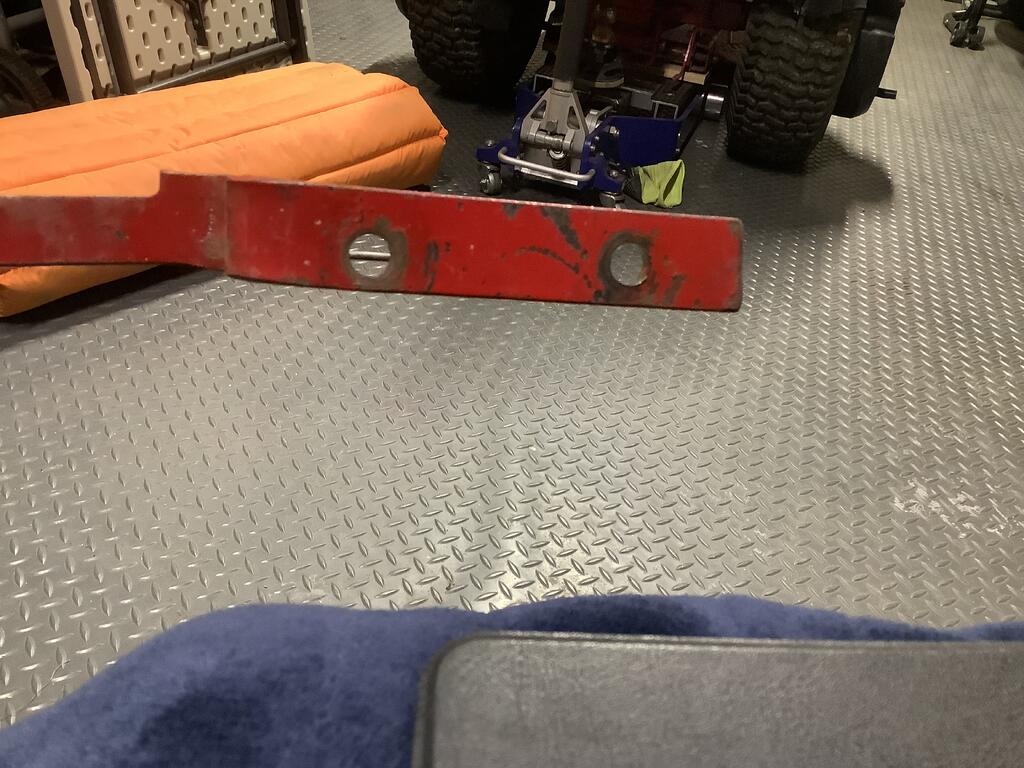

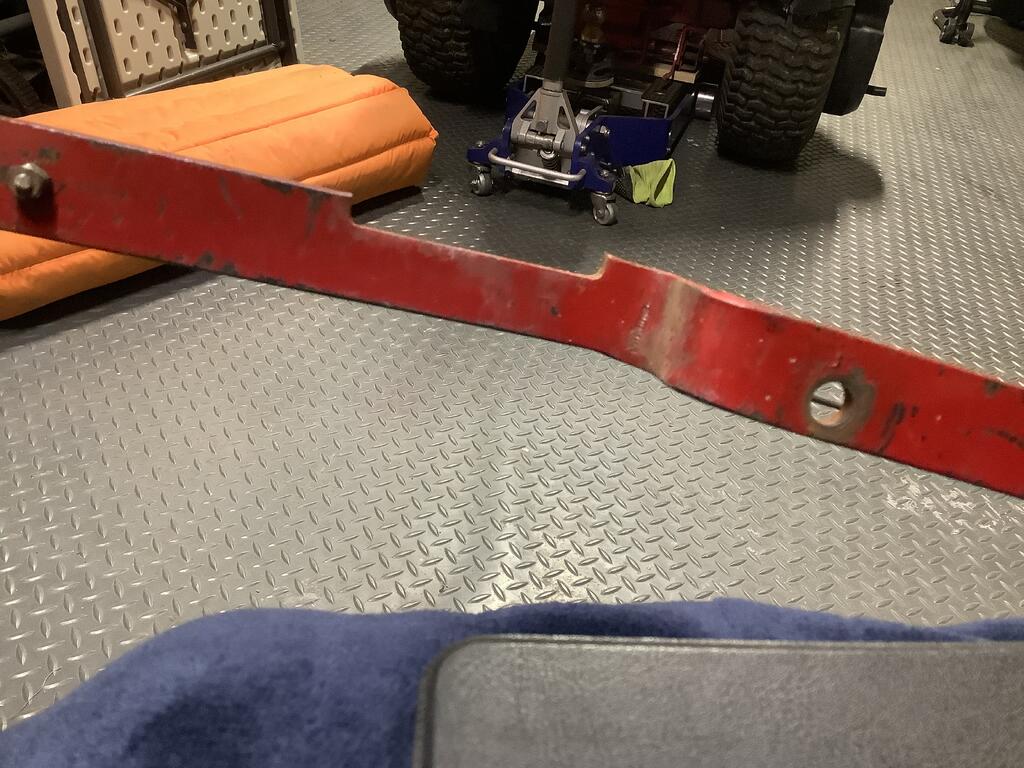

Can someone tell me the correct measurement from the center of the top hole that attaches to the triangle on the frame to the center of the bottom hole for the rod, the one I have was cut off, so I’m unable to attach the rod, any advice is appreciated. I have 1/4”. Flat bar to weld the extension

[Ed Kennell 43,507]

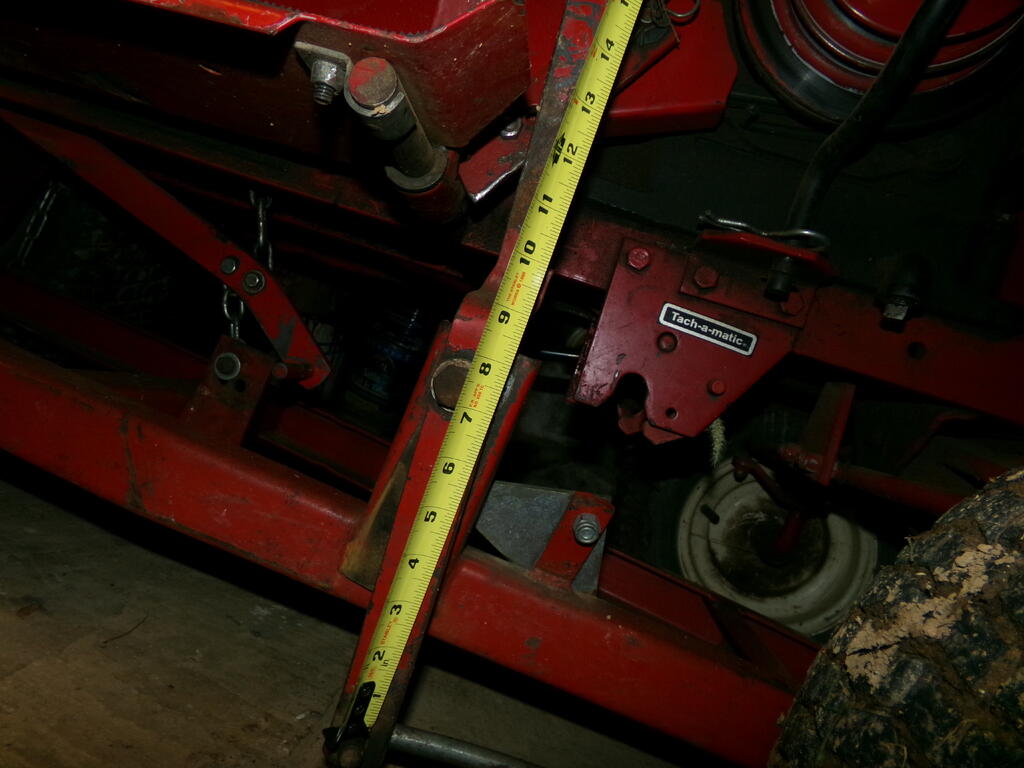

Mine is on 7.75" centers,  and the triangle does not connect to the lever.   It has its own support bar.





Edited 4 hours ago by Ed Kennell

[Gabe 29]

Yes you are correct, I didn’t know how to explain that, but the lever looks identical, thank you! 🫡🇺🇸

[Gabe 29]

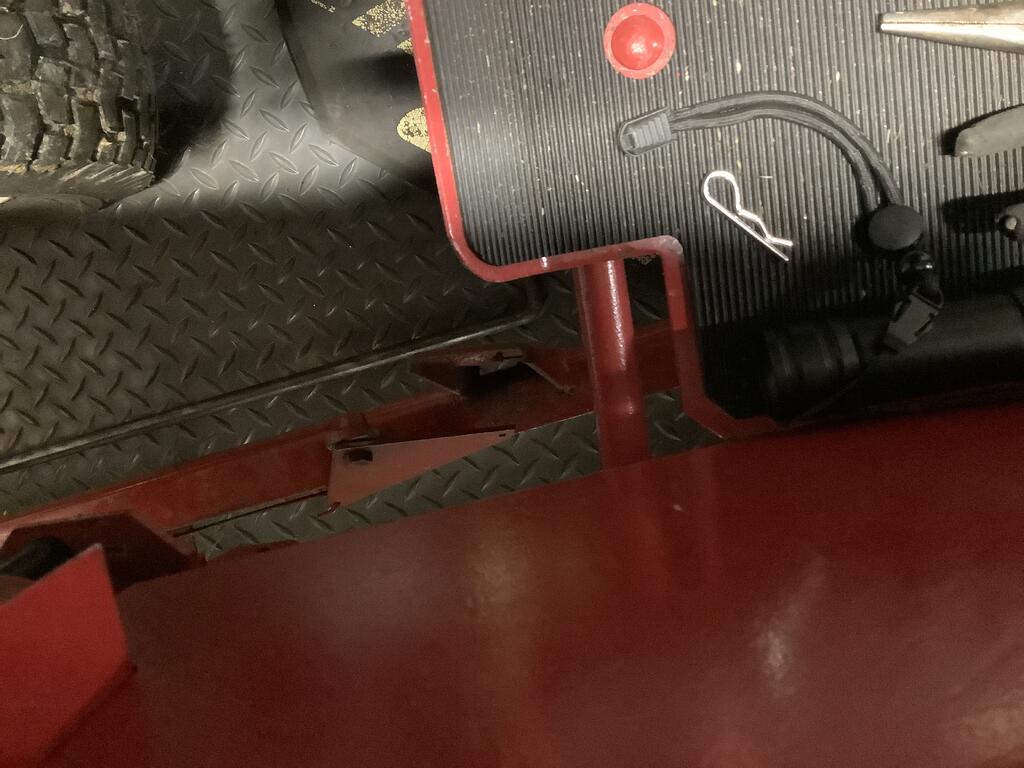

My attachment points where the hanger attaches to the triangle is slanted to the right it is not 90 degree position, is this normal? I used it like this before I found the rod that swivels the blade, so at that time I did not know the lever was short until this year lol, I used to use snow or get out to move the blade left or right. Appreciate the reply a photo👍

[Ed Kennell 43,507]

That looks correct. Mine is also slanted.

[Gabe 29]

Awesome, looks like that top mount is threaded, I never had the correct threaded bolt, just a smaller one that slid thru and had a nut ago keep it  in place, couldn’t find the bolt size to thread count, but I manage with it the other way.. I have some chains sittting in vinegar lol to get red of the rust, then I’ll probably have to cut them, my tires are 22/7.5/12 thanks again

[Ed Kennell 43,507]

That should be a 1/2-13   thread.





Edited 4 hours ago by Ed Kennell

[Gabe 29]

Thanks man

[Gabe 29]

Ed, I just ran a tap thru it, you were 100% correct👊 thanks again

[ri702bill 10,430]

45 minutes ago, Ed Kennell said:

That should be a 1/2-13   thread.

Use a 1/2-13 full threaded hex bolt long enough to have 4 to 6 threads protruding out the back to allow the use of a jam nut.

That way, set the handle gap and tighten the jam nut to hold the adjustment...

[Ed Kennell 43,507]

To get my levers to clear the foot rest and motion control foot pedals I usually have to add spacers and on some I  turn the levers backwards.    I do have some custom set ups.
