Tonytoro416 1,277 #1 Posted 14 hours ago (edited) Would anyone be willing to take a picture of the battery box and generator clearance? Or maybe battery box dimensions. I made the one on my restoration but thought I made it to correct size. Currently the generator hits the battery box when trying to tension belt. I have the correct belt length according to the manual Edited 8 hours ago by Tonytoro416 1 Share this post Link to post Share on other sites

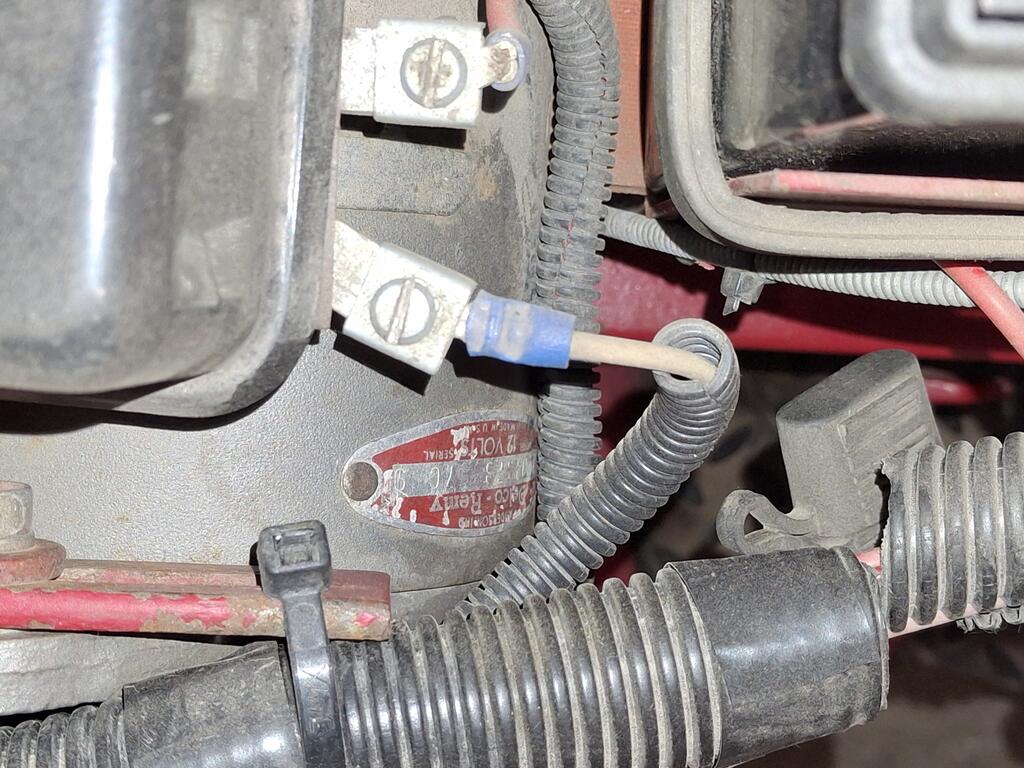

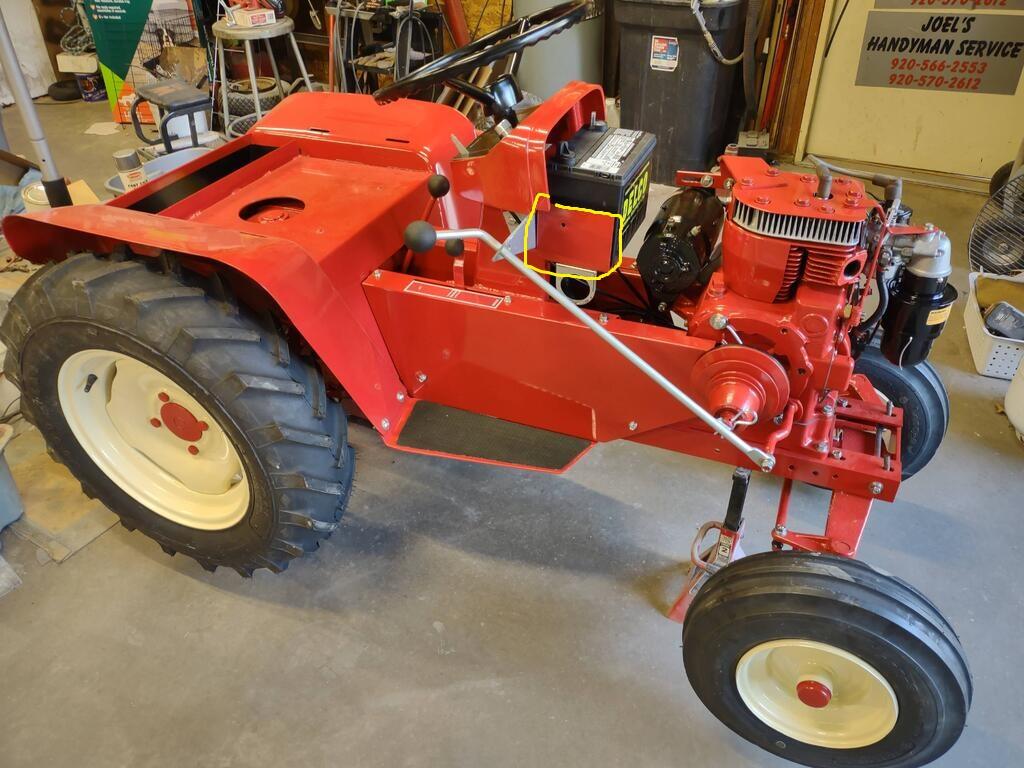

Achto 29,903 #2 Posted 13 hours ago (edited) I'm not at home to take measurements but here are some pics for you to reference. Could it be that your belt is too long ? Edited 13 hours ago by Achto 2 1 Share this post Link to post Share on other sites
squonk 44,650 #3 Posted 13 hours ago (edited) The box side dimension is 5" There is about 3/4" of clearance between the box edge and the regulator with the proper belt on my 953 Edited 13 hours ago by squonk 1 1 Share this post Link to post Share on other sites
Tonytoro416 1,277 #4 Posted 11 hours ago I have a 35” belt and according to the manual that’s what it takes. Also do you know if the pto lever is 953 only? 1 Share this post Link to post Share on other sites
