Phan

Wheel Horse 12 - Electric PTO

Recommended Posts

Phan

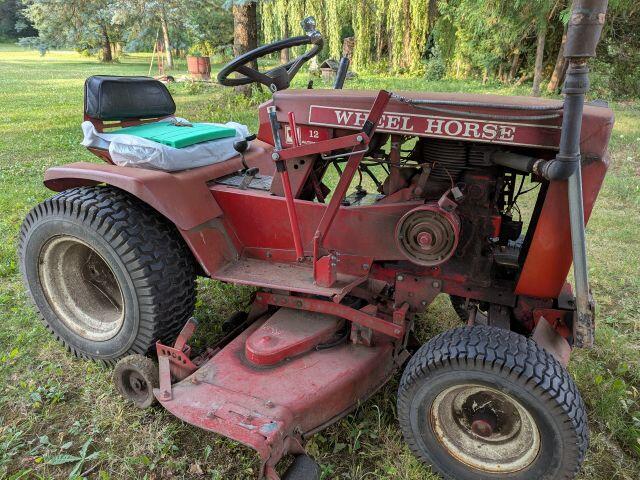

Hello - It runs pretty strong!  However, its PTO the cover was removed (I still have it) - Sadly, the owner passed away. Can anyone please advise me on how to reattach it back (I tried to unscrew but was very tigh) and test if it still works. Thank you!

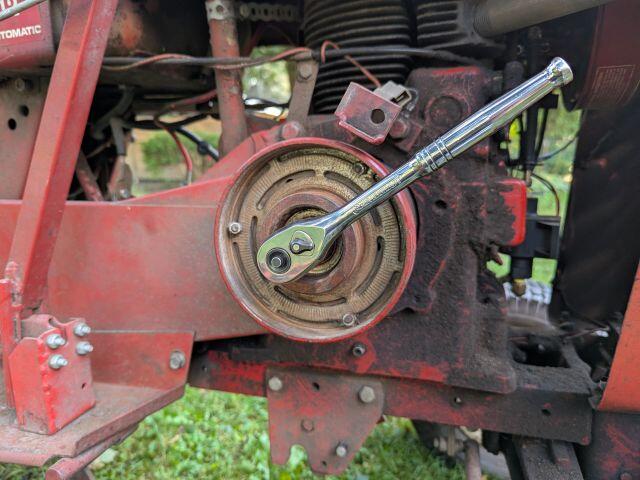

WH12 PXL_20250816_222203064.jpg

WH12 PXL_20250804_230030331.jpg

Share this post


Link to post
Share on other sites

gwest_ca

May be something in these that will help



  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

953 nut

Probably find an answer in this thread.



Share this post


Link to post
Share on other sites

Phan
1 hour ago, gwest_ca said:

May be something in these that will help



Thank you! Will read it!

Share this post


Link to post
Share on other sites

Phan
1 hour ago, 953 nut said:

Probably find an answer in this thread.



If so, I am not sure about mine.

  • Confused 1

Share this post


Link to post
Share on other sites

daveoman1966
Posted (edited)

why can't I post photos here...   I have a solution to the D-PTO problem described.

Edited by daveoman1966
  • Sad 1

Share this post


Link to post
Share on other sites

953 nut
6 hours ago, daveoman1966 said:

why can't I post photos here...   I have a solution to the D-PTO problem described.

Looks like you may have allowed your "Supporter" membership to expire.  Your name isn't in RED anymore.

Share this post


Link to post
Share on other sites

daveoman1966
On 10/4/2025 at 7:59 PM, 953 nut said:

Looks like you may have allowed your "Supporter" membership to expire.  Your name isn't in RED anymore.

ooops.  Gettin old and fergetful....  Just renewed... Thanx.



  • Thanks 1

Share this post


Link to post
Share on other sites

daveoman1966

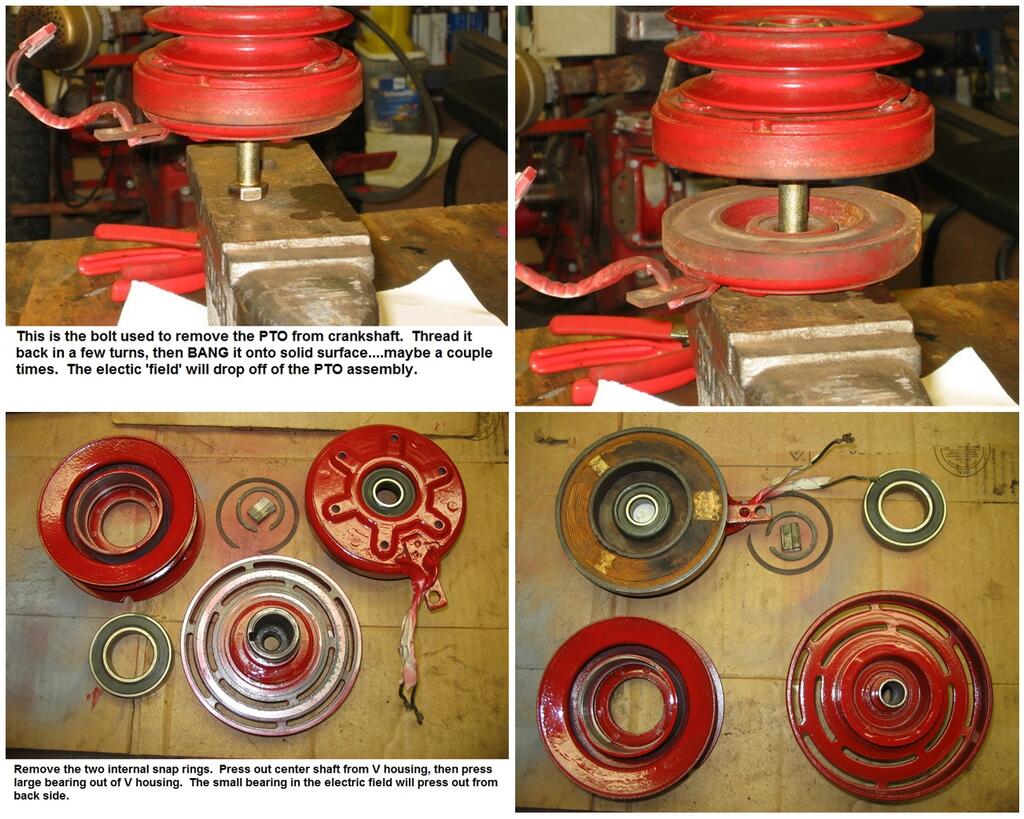

There is ONE safe way to remove the ENTIRE Dlectric PTO clutch:  here it is:

Removing it with any sort of 3-jaw puller or the like will just about guaranteed destruction..  (Don't ask me how I know that.)

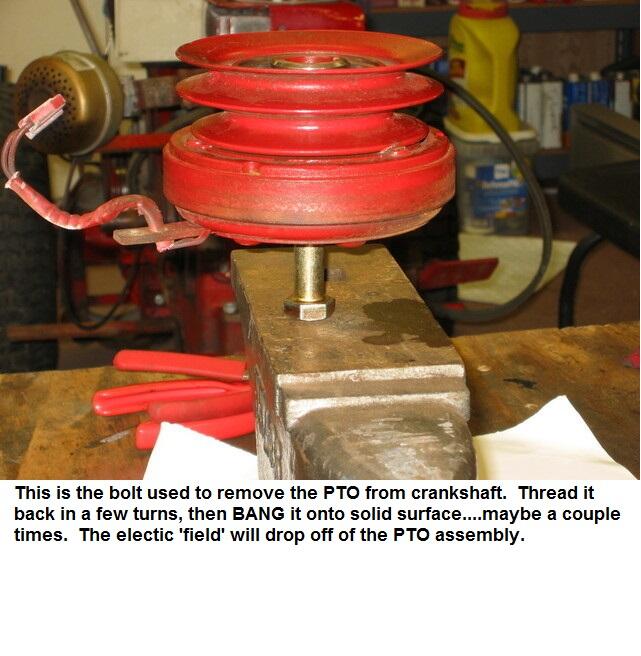

elect pto (8).JPG

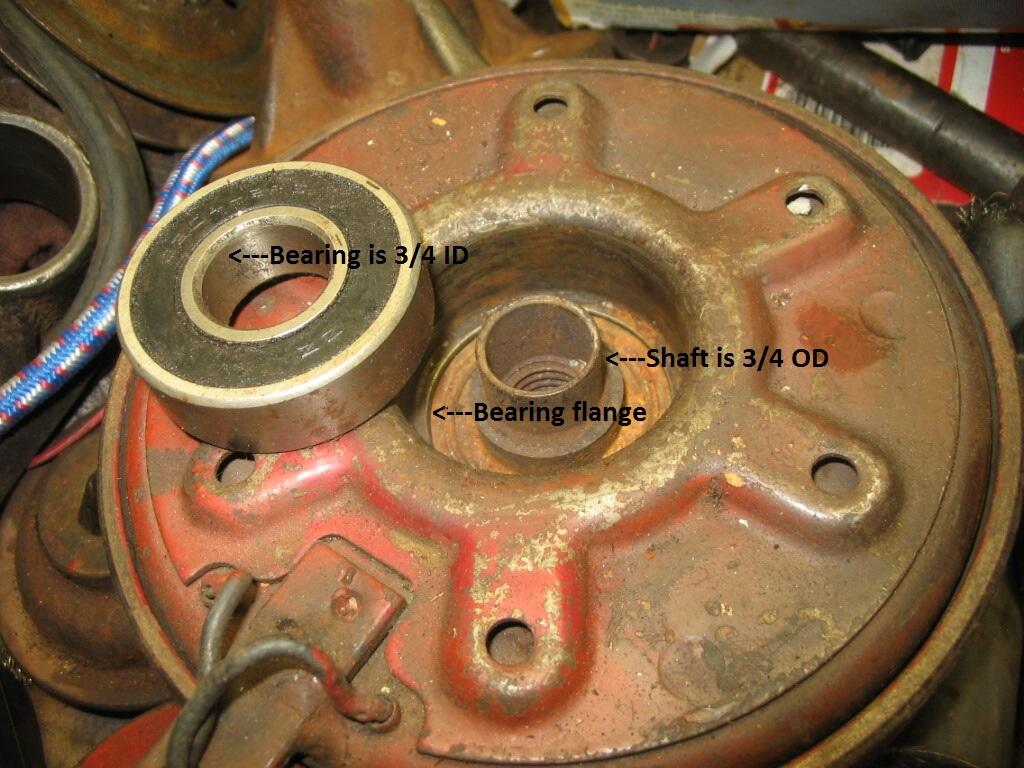

E PTO (2).JPG

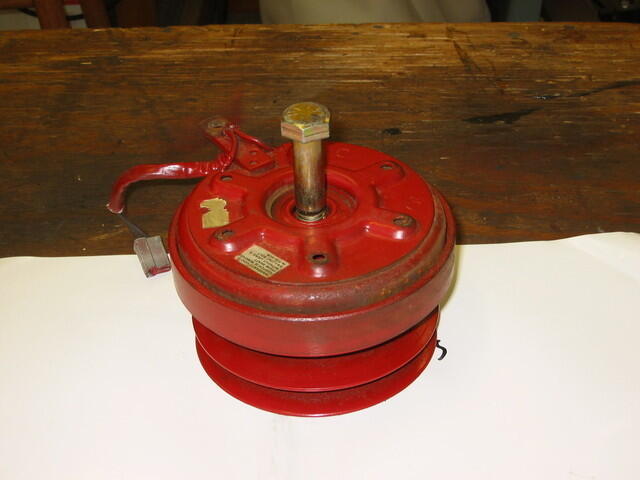

elect pto (9).JPG

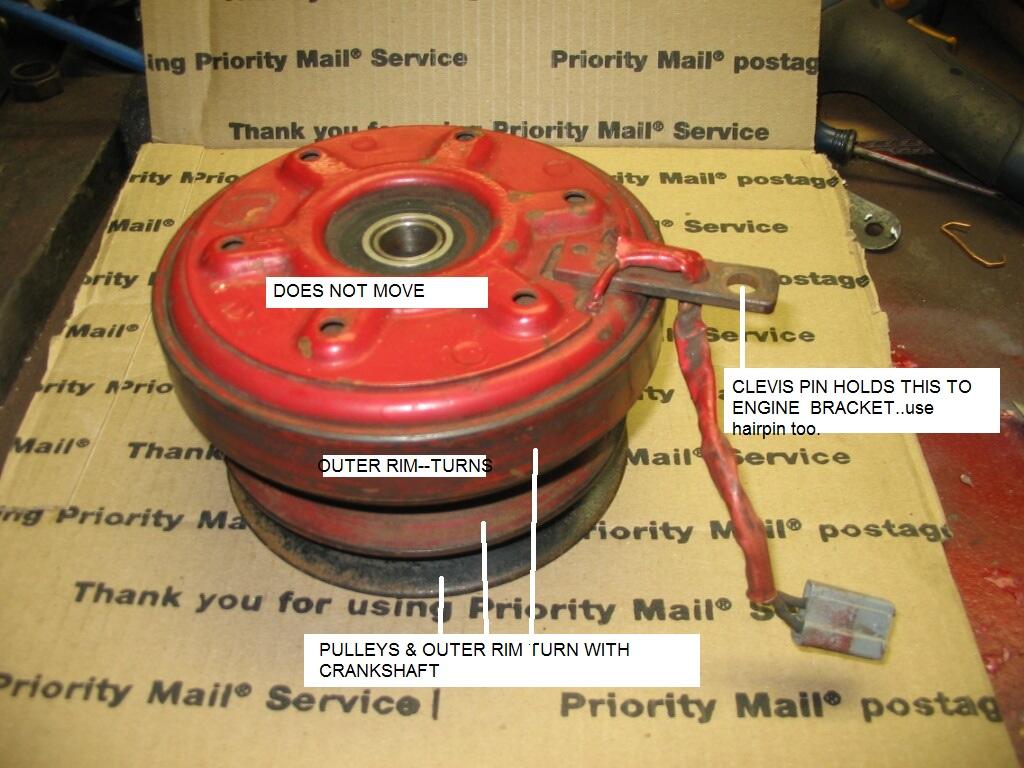

sent 001A.jpg

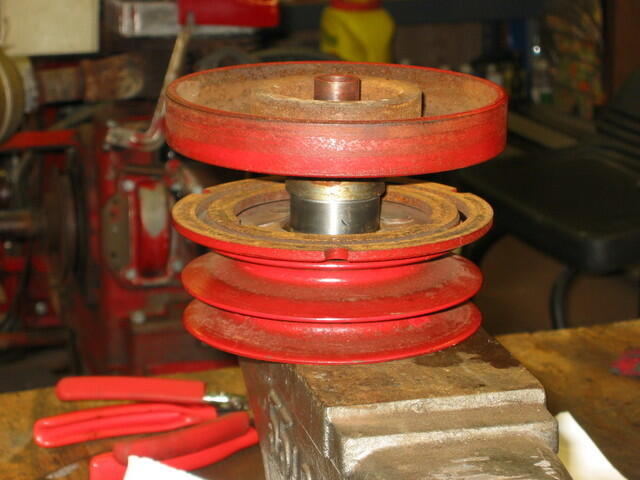

elect pto (5).JPG

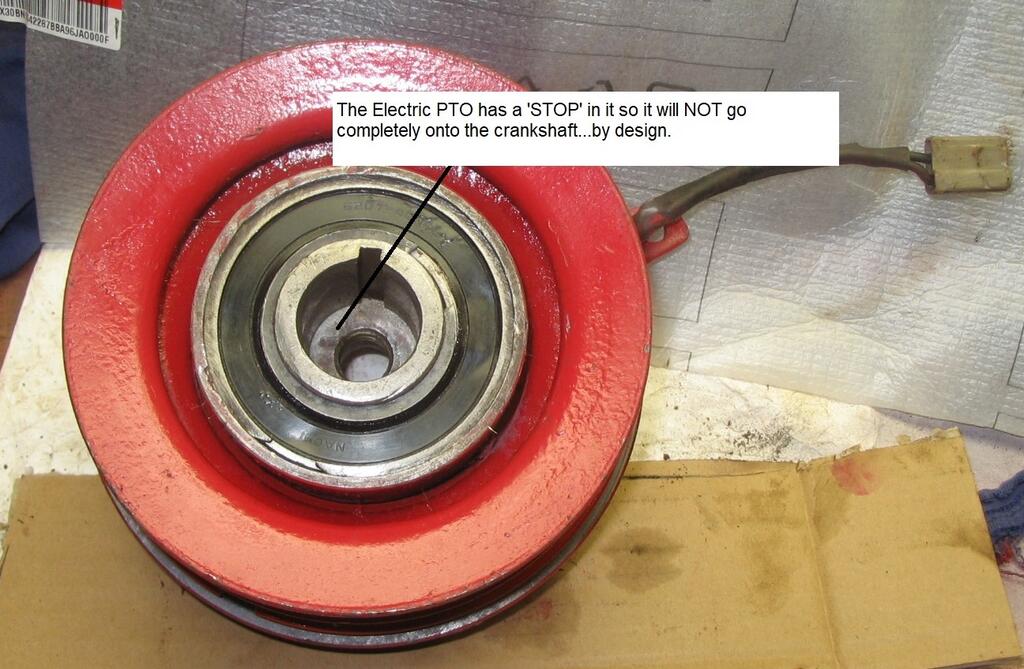

eepto 003 - Copy.JPG

elect pto (9).JPG

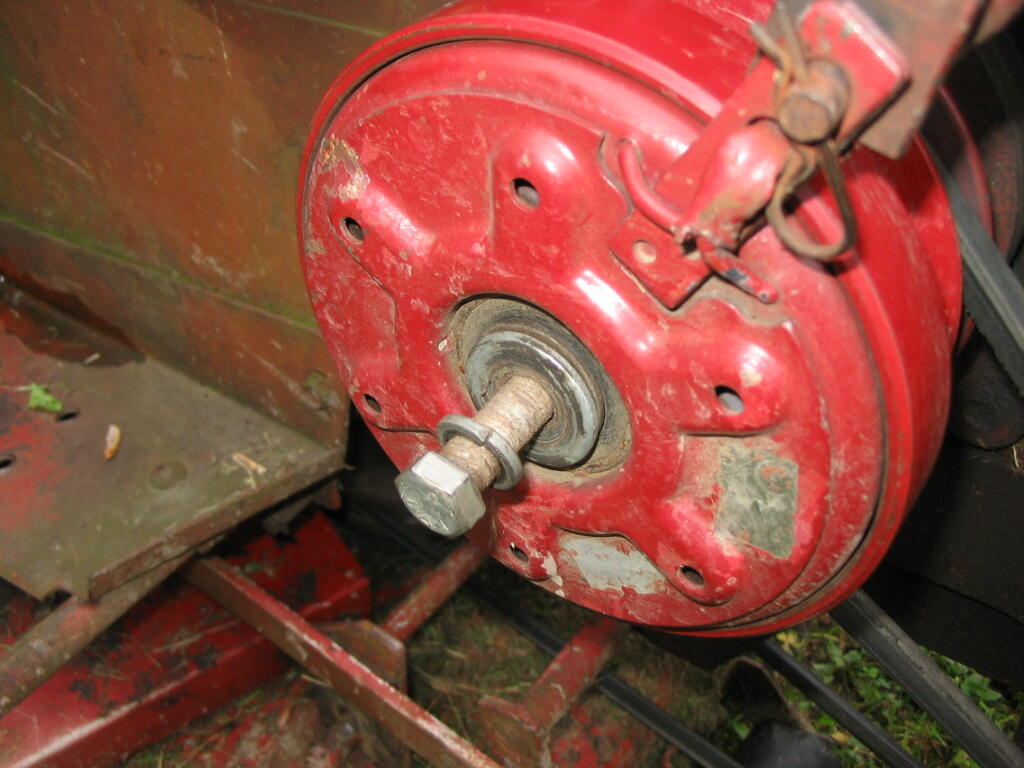

EPTO MOUNT (2).JPG

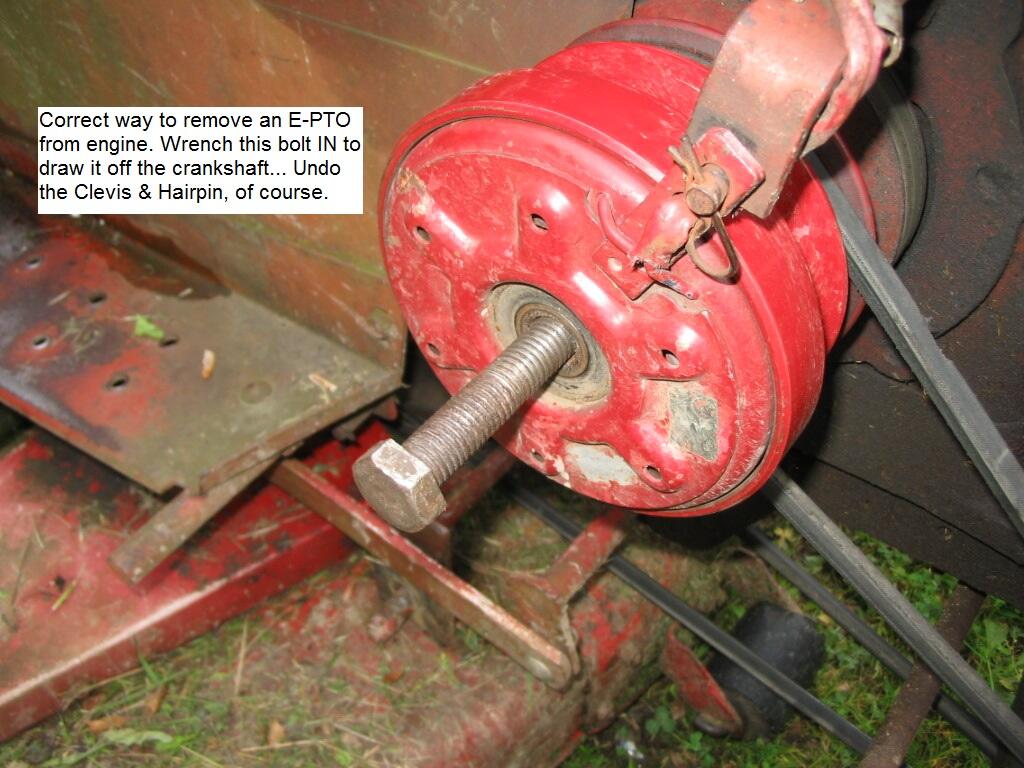

EPTO MOUNT (3).JPG

  • Excellent 2
  • Thanks 1
