857 re-wire

[Simplecity 22]

Good Afternoon All

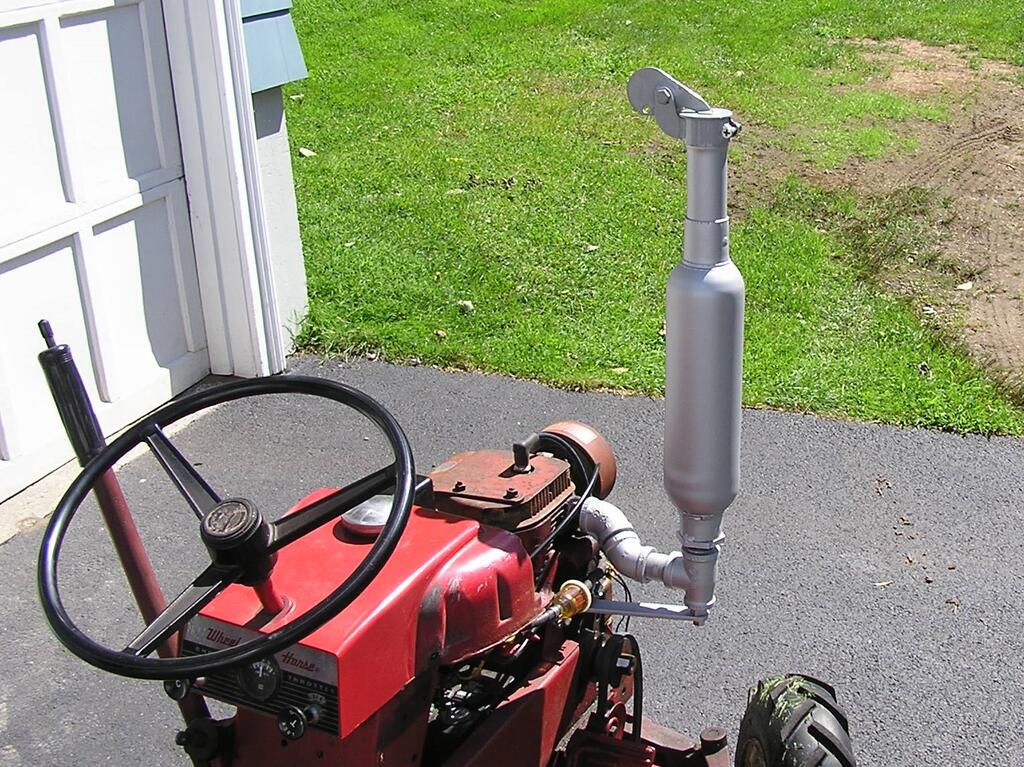

  Got the motor back in the 857 and all is well, so I thought.

   I added a starter solenoid to the electrical system to avoid having to run 6 GA wires to the switch.

    The system works sporadically, however the voltage regulator does to function. Charging voltage is controlled by engine speed only.

     What I'm hoping to find is a wiring schematic that shows a solenoid and a starter generator. along with the key switch.



     If someone can point me in that direction, that would be great.

     Thanks for your time

         Simplecity

Edited Tuesday at 07:53 PM by Simplecity

[squonk 42,603]



Original diagram Run the wire from the "S " terminal to  small solenoid terminal. Make sure solenoid is grounded well. One wire from battery to one large solenoid terminal. Another wire from the other large solenoid terminal to the "A" on the Genny

Edited Tuesday at 08:24 PM by squonk

[ri702bill 9,009]

I did the same as the second modified diagram on my 854 8 speed - added the solenoid, made a plate to mount it to the back end of the S/G...

[953 nut 58,037]

The first drawing Mike @squonk posted uses a 103-990 ignition switch as drawn.

[Simplecity 22]

Squonk

  Thanks for the diagram.

   Mine is similar except no light switch. I did wire in an hour meter. would that also draw power from the 'L' terminal of the voltage regulator?

   Thanks for your time

     Simplecity

[Achto 28,812]

10 hours ago, Simplecity said:

I did wire in an hour meter. would that also draw power from the 'L' terminal of the voltage regulator?



I would wire it to the "A" or "I" terminal on the key switch. I believe that the "L" term on the regulator is hot all the time.

Edited yesterday at 10:41 AM by Achto

[953 nut 58,037]

No terminals are connected to other terminals when the 103990 switch is in the OFF position. Your hour meter could be connected to either the A or I terminal.
