Keaton

racing mower

Recommended Posts

Keaton

hello all and thanks for your time, I am just a dumb kid with dumb ideas, and i have had a honda GX630 v-twin that someone gave my dad because it leaked oil, and I recently got it down and it spun right over, must have hooked up the wright wires, LOL, it wouldn't start and wouldn't start, I was told to "delete" the fuel shutoff selonid and today I took it apart and it fired right up. it was louder than loud, so now I saw how fast this engine was spinning, originally I was going to go a chain drive from the engine over a jackshaft to the chain rear axle that was origonally on the mower, and now I'm thinking it needs geared down a bit at least and I was thinking maybe a belt drive from the engine to the jackshaft.



so what would you do because I just saw that the idle rpm was 1400 rpm Wich would be a great deal of a death trap. I was wondering what y'all would do if your were dumb as me? I'll put a picture of what my idea was, the blue represents the chain and the green is my "Jack shaft"


Share this post


Link to post
Share on other sites

kpinnc

That’s a 20.8hp engine, and the horizontal orientation would really go better with a “bigger” Wheel Horse tractor.


20hp was the upper end of the range of tractors offered, but it was fairly common in both 8-speed and hydro models. There were 420LSE, 520-8, 520-H, and even D-200. I probably missed a couple. There have also been several people who repowered tractors with that same engine. I’m sure there are threads somewhere here with those builds.

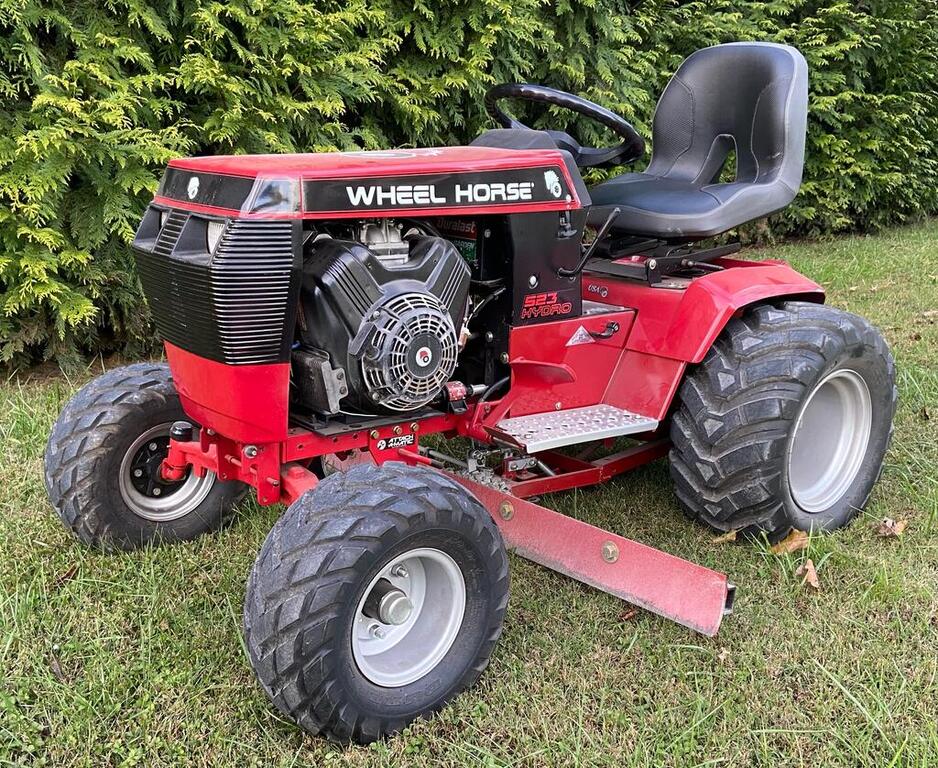

I built a 23hp V-twin engine and built up my own “523-H” machine a couple years back. It’s nice to have the extra power if you need it! But I suggest harnessing that power to a stronger frame and transmission than what you’re considering.





Edited by kpinnc
  • Like 1

Share this post


Link to post
Share on other sites

Ed Kennell
8 hours ago, Keaton said:

I'm thinking it needs geared down a bit

With three sprockets in the drive train, by selecting the correct size, you can set any axle/engine rpm.        Where is the clutch?

Share this post


Link to post
Share on other sites

953 nut
9 hours ago, Keaton said:

I am just a dumb kid with dumb ideas

No your not.   You are smart enough to ask questions before you do something that could end disastrously.

If I were a kid again and wanted to build a racing lawnmower the first thing I would do is attend a couple of lawn mower races and see what others are using.  The steering on your mower is never going to be adequate for higher speeds and you would want a lower center of gravity. I know that money is an issue but we don't want you to end up in the hospital.

A centrifugal clutch on the engine would be the way to go. Wide tires for traction and stability would also be a must-have.

Keep us posted, we love to follow along.

Share this post


Link to post
Share on other sites

Ed Kennell

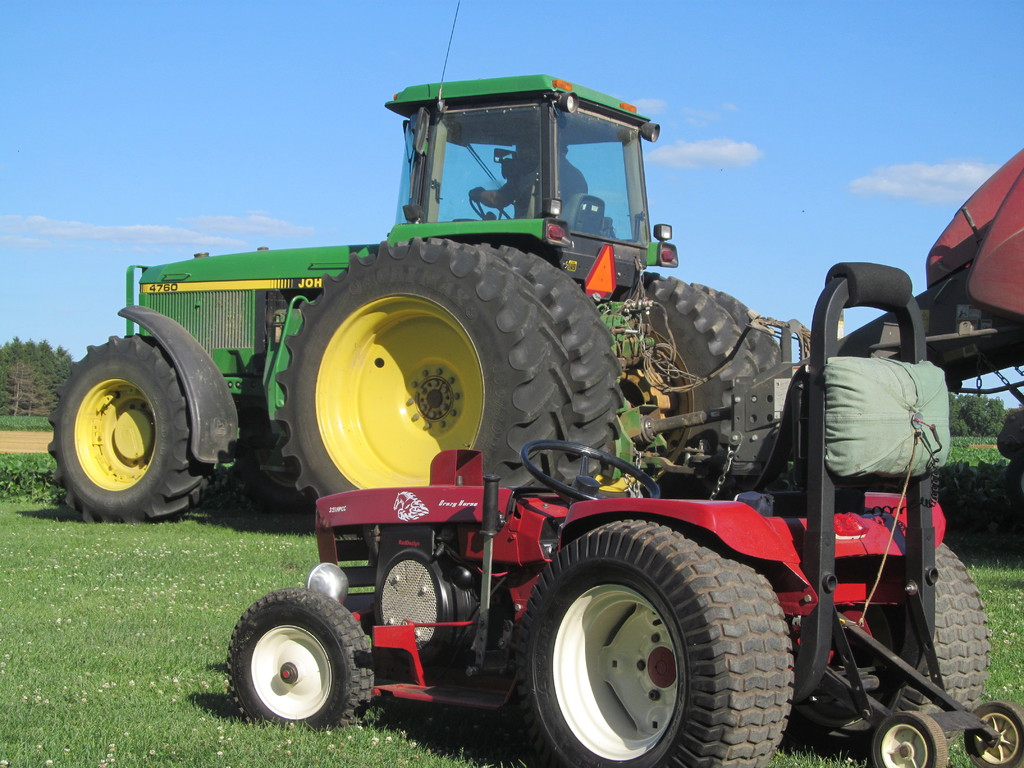

Don't forget to build in some stopping ability.     A rotor and caliper on the jack shaft could work.

 Or even an air anchor.IMG_7813.JPG.68d37e30c79bcb95e110dae70c11731e.JPG

















  • Like 1

Share this post


Link to post
Share on other sites

Keaton

thanks all

1 hour ago, Ed Kennell said:

Don't forget to build in some stopping ability.

i have breaks on my list of parts, and wow that is a machine



1 hour ago, 953 nut said:

The steering on your mower is never going to be adequate for higher speed

I know that I will make my own, could I keep the spindles? I will get wheels with roller bearings, it will take a bit to get it done, and I was thinking a configural clutch or a v belt maybe, wouldn't want my left stolen by a chain.

I will go look it up some more, I fired that engine last night and that scared me a bit, but I think the engine may have went straight to the limiter

  • Like 1

Share this post


Link to post
Share on other sites

Keaton

and all the "racing mowers" I see are go-karts sometimes with a mower engine and mower hood and mabye fenders

Share this post


Link to post
Share on other sites

Keaton

another question, should I do a go-kart type steering, instead of a gear and sprocket steering like it has?, the bottom of the frame is completely hollow, besides bracing I will put in

Share this post


Link to post
Share on other sites

Oldskool
3 minutes ago, Keaton said:

and all the "racing mowers" I see are go-karts sometimes with a mower engine and mower hood and mabye fenders

This one is all mower, no kart involved. LOL.

Not a Wheel Horse but the next will be





  • Like 2

Share this post


Link to post
Share on other sites

953 nut
1 minute ago, Keaton said:

and all the "racing mowers" I see are go-karts sometimes with a mower engine and mower hood and mabye fenders

That is what I was getting at.

1 hour ago, 953 nut said:

attend a couple of lawn mower races and see what others are using.

If you plan on building one to race you need to keep up with the big boys and girls.   If you are just building a fun buggy to run around with then it will be a whole lot less expensive and we are here to help figure things out. I'm not sure what the steering system you have is (probably stamped steel) but since you are building a new front axle I would go with new go-cart type steering.

Share this post


Link to post
Share on other sites

Oldskool
7 minutes ago, 953 nut said:

That is what I was getting at.

If you plan on building one to race you need to keep up with the big boys and girls.   If you are just building a fun buggy to run around with then it will be a whole lot less expensive and we are here to help figure things out.

This.



Are you gonna race it or is it something to cruise around on?

Share this post


Link to post
Share on other sites

Keaton

im not really gonna like "professionally race" it, just like a gokart to play with around the yard, but my friend did send me something about a outlaw race with a mower class, I may try that if I get the first version working in time.

24 minutes ago, 953 nut said:

but since you are building a new front axle

wasn't going to but I may have to eventually,

I was planning on getting a go-kart rear axle off amazon for now, probably not the best place to get a axle but it will be fine for now, then I can lower it a bit more

Edited by Keaton
  • Excellent 1

Share this post


Link to post
Share on other sites

kpinnc
3 hours ago, Ed Kennell said:

Where is the clutch?


It will be “clutching” whatever seat he decides to add on that machine! :lol:

  • Like 1
  • Haha 2

Share this post


Link to post
Share on other sites

Keaton

the pictures is just a mach-up of zip ties, and I have one to order

Share this post


Link to post
Share on other sites

ri702bill
1 hour ago, kpinnc said:


It will be “clutching” whatever seat he decides to add on that machine! :lol:



Did you intermix the words "clutching" and "clinching" ??  :laughing-rolling::laughing-rolling:

  • Haha 2

Share this post


Link to post
Share on other sites

kpinnc
5 hours ago, ri702bill said:

Did you intermix the words "clutching" and "clinching" ??


No sir. Clinching is just the act of tightening up. Clutching means you are hanging on for dear life!  :lol:



…And I assure you both can be performed at the tractor seat with no hands! :thumbs:

  • Like 1
  • Haha 1

Share this post


Link to post
Share on other sites

953 nut
8 hours ago, Keaton said:

go-kart type steering, instead of a gear and sprocket steering like it has?

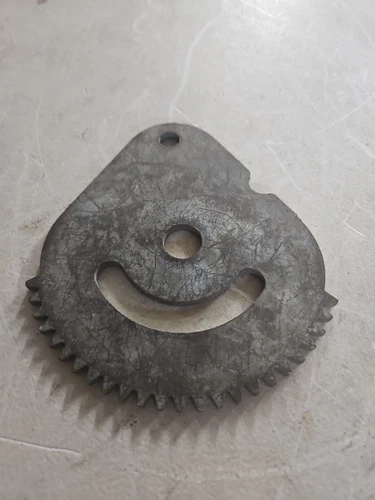

If the steering is somewhat like the one pictured below you definitely want to get rid of it and go the Go Cart route.

MTD Steering Segment Gear OEM Part#717-0622(WH111)

Share this post


Link to post
Share on other sites

Keaton

@953 nut it is exactly like that, I will change it, I've been looking into it

  • Excellent 1

Share this post


Link to post
Share on other sites

Keaton

ive been working on this and i got some parts ordered, my steering parts are almost here and I will work on that, I got a go-kart rack and pinion and with some custom work it should work just fine, I was also trying to figure out how to brace the frame because its not strong, I was thinking 2 pices of angle iron and a x out of gas pipe to make it sturdy, or more, I'm putting a gokart axle in, I got all the parts on the way, its working slowly but surely.

  • Like 2

Share this post


Link to post
Share on other sites

Easton Rich

Give me some suggestions when you are done, sadly I’m also a dumb kid with dumb ideas:lol:

Share this post
