1976 or 1977 wheel horse B-100 snow Plow parts

Recommended Posts

Vintage_Wheel_Horse_Lover

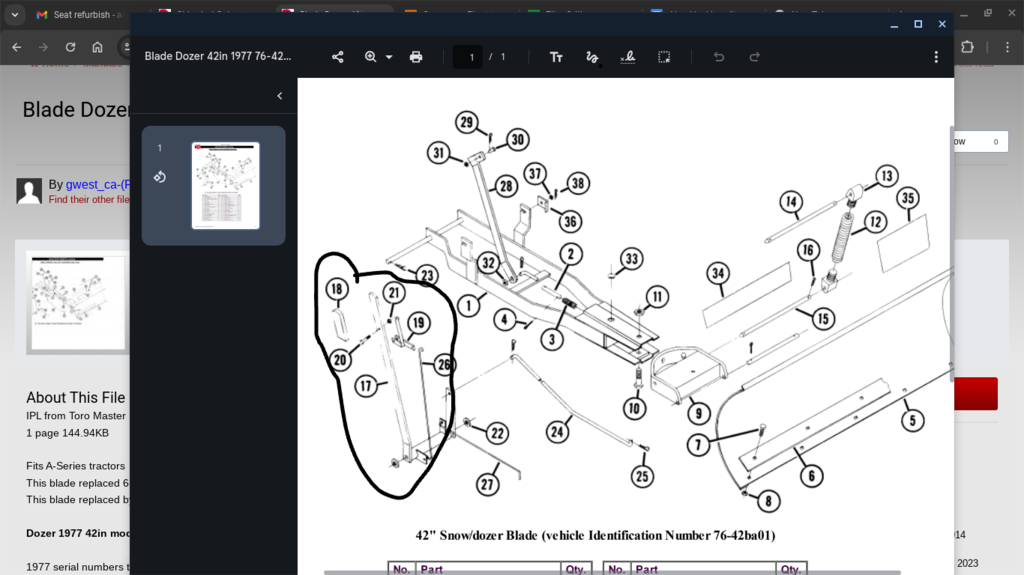

im looking for this angle adjustment rod for the plow on my wheel horse b100 I circled it in the attached picture

Screenshot 2024-05-15 9.46.15 AM.png

Share this post


Link to post
Share on other sites

Vintage_Wheel_Horse_Lover

or a way to make it out of a scrap chunk of metal

  • Like 1

Share this post


Link to post
Share on other sites

peter lena

@Vintage_Wheel_Horse_Lover  can easily pick up a piece of round stock , at big box or local h / w  store , detailing in those plows for function is easy and really pays off in usage . hint , that related  STEERING  QUARRANT is a key area to improve . also build it up off the floor , on milk crates , so you can roller stool around it ,and look at what's going on . when suspended off floor , its exactly  hanging like it would be under tractor  , make sense ? dare I say it ?   heim joints , blade swings without effort , pete

Share this post


Link to post
Share on other sites

gwest_ca

The 76-42BA01 blade does not fit the B-100 but the lever you need is likely the same.



Share this post


Link to post
Share on other sites

rmaynard

So you are looking for items 17, 18, 19, 20, 21 & 26?

  • Like 1

Share this post


Link to post
Share on other sites

Vintage_Wheel_Horse_Lover
1 hour ago, rmaynard said:

So you are looking for items 17, 18, 19, 20, 21 & 26?

yes

Share this post


Link to post
Share on other sites

Vintage_Wheel_Horse_Lover
1 hour ago, peter lena said:

@Vintage_Wheel_Horse_Lover  can easily pick up a piece of round stock , at big box or local h / w  store , detailing in those plows for function is easy and really pays off in usage . hint , that related  STEERING  QUARRANT is a key area to improve . also build it up off the floor , on milk crates , so you can roller stool around it ,and look at what's going on . when suspended off floor , its exactly  hanging like it would be under tractor  , make sense ? dare I say it ?   heim joints , blade swings without effort , pete

what do you mean by steering quarrant

Share this post


Link to post
Share on other sites

peter lena

@Vintage_Wheel_Horse_Lover    # 9  in diagram  thats the swing point of the plow , you can easily improve that function and related linkages , in the reassembly  , notice ist photo , the lower threaded rod ? heim joint ? that is connected to the steering quadrant , as is the squeeze lever that engages it . done a number of those plows , always corrected a chronic issue , rarely put anything back as I found it , make it better , pete



Share this post


Link to post
Share on other sites

Vintage_Wheel_Horse_Lover

ok I will look into doing so. how would I put a handle in the round stock for the release

Share this post


Link to post
Share on other sites

daveoman1966

Your B-100 tractor takes dozer blade 05-42BC01 so the schematic in your 1st question is wrong.  It should be this one---or similar for long frame B & C series:  Yu can easily make the INDEX LEVER #20 and the Upper rod #19.  (#29 is in my pic too).  The index handle #26  is OEM part # 5107--- ebay has them.




INDEX LEVER - Copy.jpg

Share this post


Link to post
Share on other sites

Vintage_Wheel_Horse_Lover

ok thank you

Share this post


Link to post
Share on other sites

Vintage_Wheel_Horse_Lover

how tid u get the slight curve in it. and also how did u get the section where it jogs an inch or so over

sorry for all the questions, I just turned 18 and have been around wheel horses my whole life.

I have a collection of 2 workers number 3 is down. 3 is my grandpa's 71 charger 12 i believe it to be a bad coil and when it gets warm it also does not want to move

and then I have like 6 for parts



Share this post


Link to post
Share on other sites

daveoman1966

To answer your question(s):

how tid u get the slight curve in it. and also how did u get the section where it jogs an inch or so over

sorry for all the questions,

First, drill the holes as I've shown.  Then put the flat bar in a vise and make it red-hot where the two bends are.  Do one, then the other to achieve about 2" between the two 90deg bends. While it is still red hot in the vise---after making the bends--- use some muscle and pull on the longest end to make the slight curve.

Share this post


Link to post
Share on other sites
