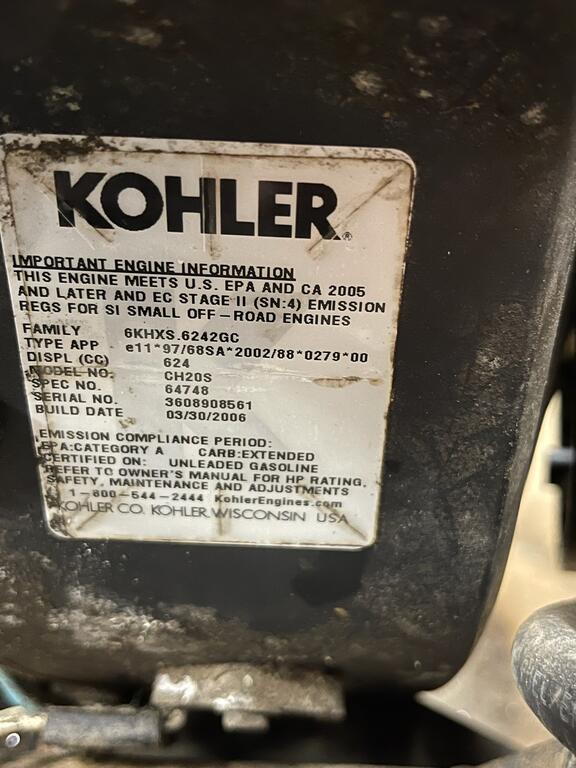

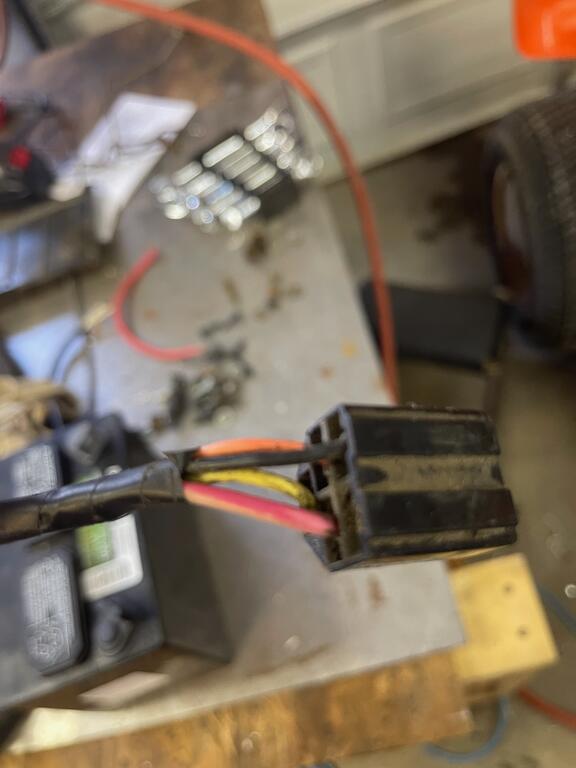

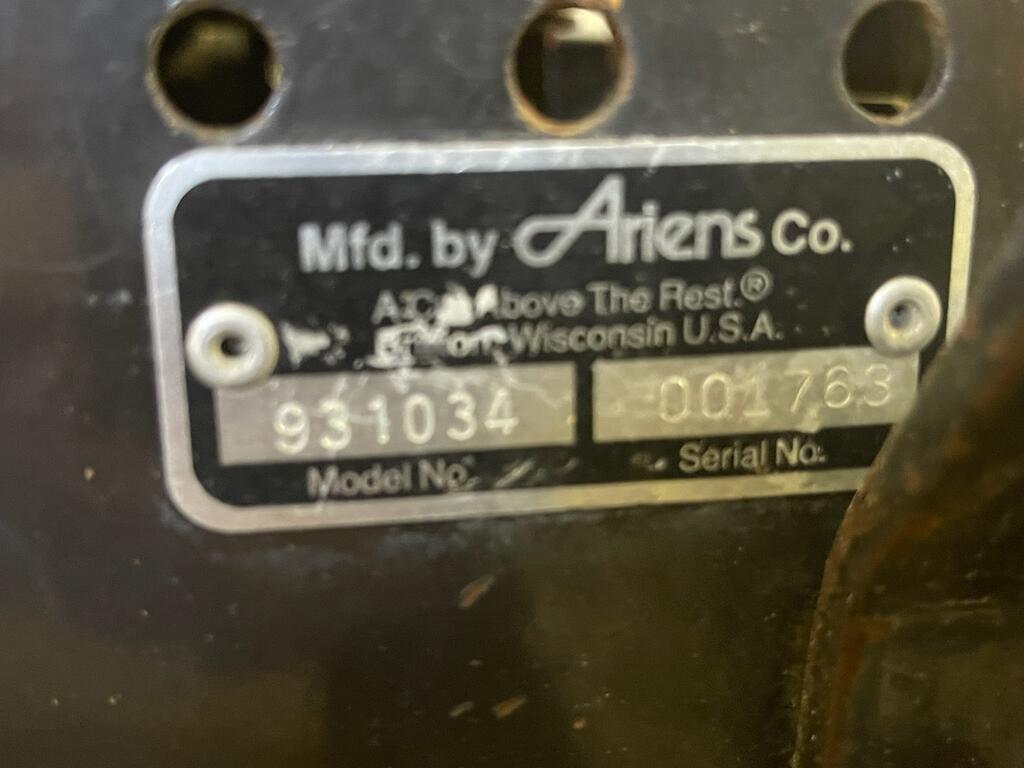

ebinmaine 67,711 #1 Posted February 11 A friend of mine locally here is doing a swap putting this Kohler With this plug Into this tractor He's found a couple schematic diagrams for the tractor. He says there's a green wire too. Likely to do with starter solenoid? He wants to know if we/ you can offer any advice on what wires go where. He's absolutely OK with rewiring and splicing. Just wants to be correct and not damage anything. Thoughts comments questions suggestions? Thanks! Share this post Link to post Share on other sites

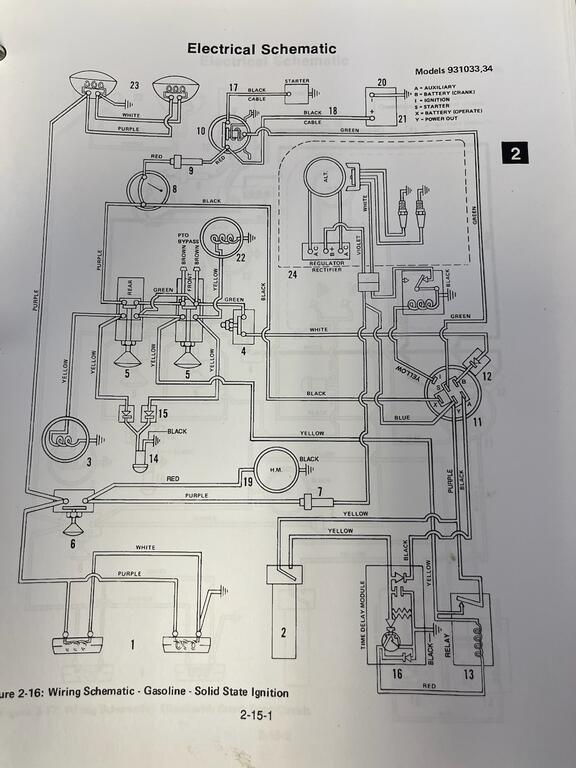

ri702bill 8,352 #2 Posted February 11 Last line of the diagram - Gasoline-Solid State. Were BOTH originally solid state or coil ignition??? 1 Share this post Link to post Share on other sites
ebinmaine 67,711 #3 Posted February 11 35 minutes ago, ri702bill said: Last line of the diagram - Gasoline-Solid State. Were BOTH originally solid state or coil ignition??? I'll find out Share this post Link to post Share on other sites

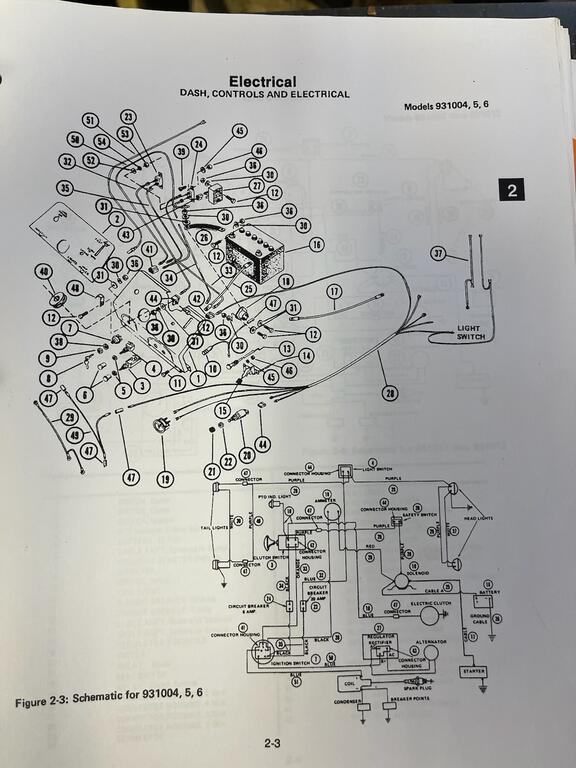

gwest_ca-(File Mod) 11,059 #4 Posted February 12 Wiring diagrams in the Kohler manual 1 1 Share this post Link to post Share on other sites
ebinmaine 67,711 #5 Posted February 12 13 hours ago, ri702bill said: Last line of the diagram - Gasoline-Solid State. Were BOTH originally solid state or coil ignition??? Old engine was a Kohler 20 HP Magnum. Replacement is a Kohler 20 HP Command. Ignition should be similar. 1 Share this post Link to post Share on other sites
