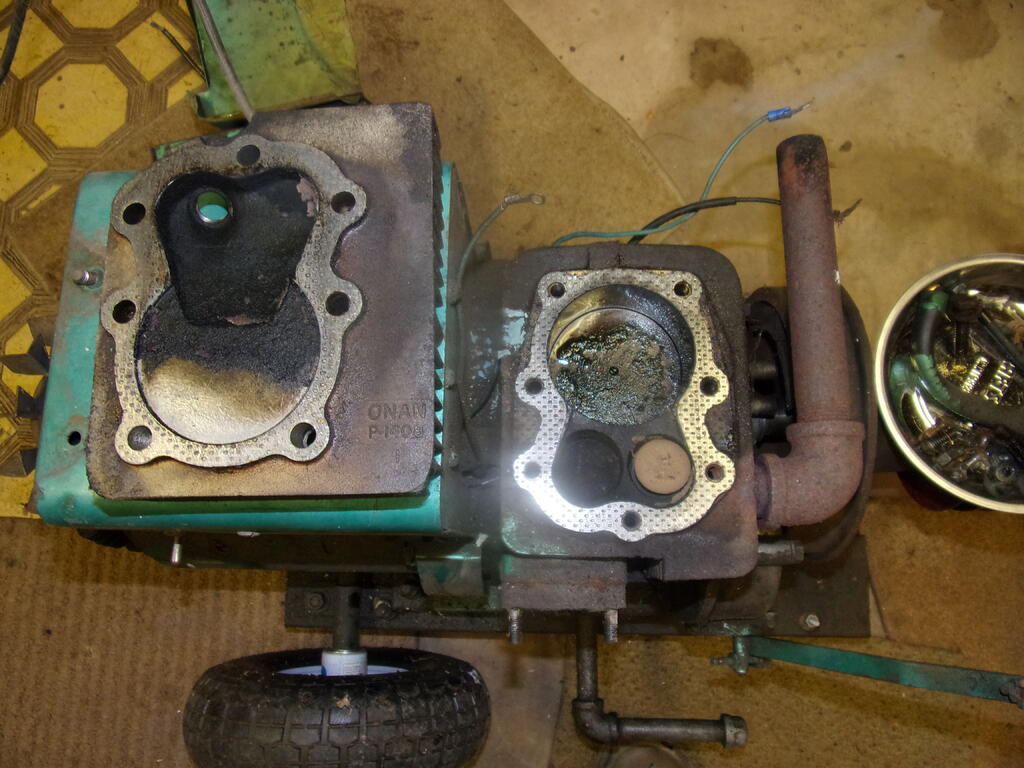

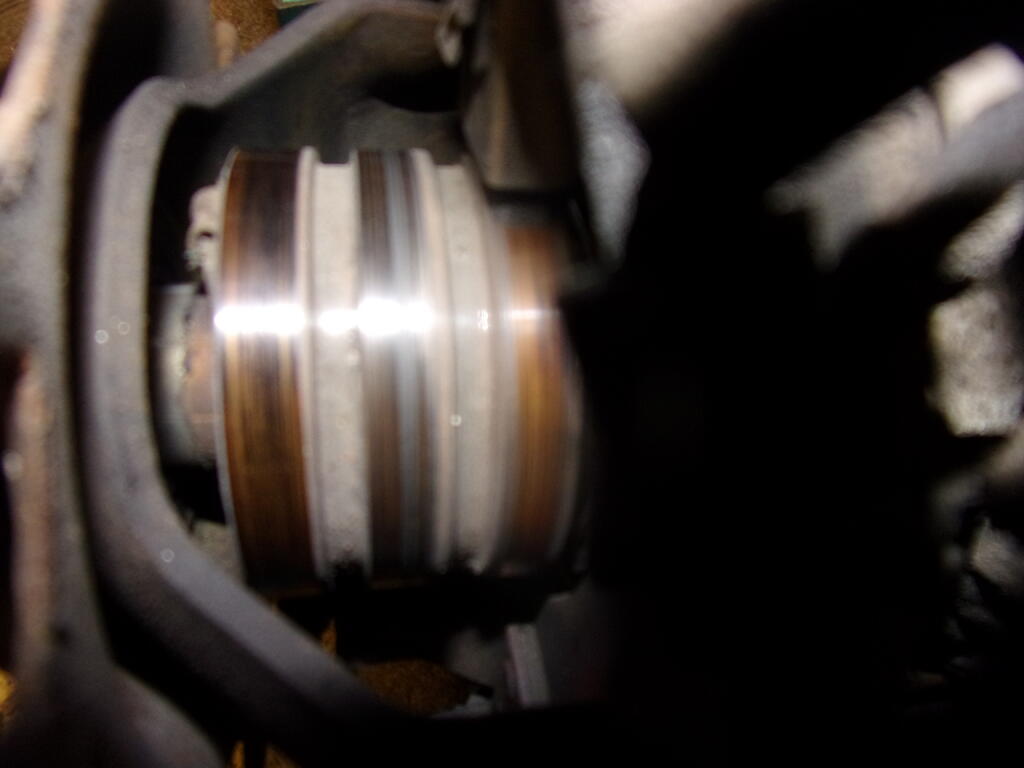

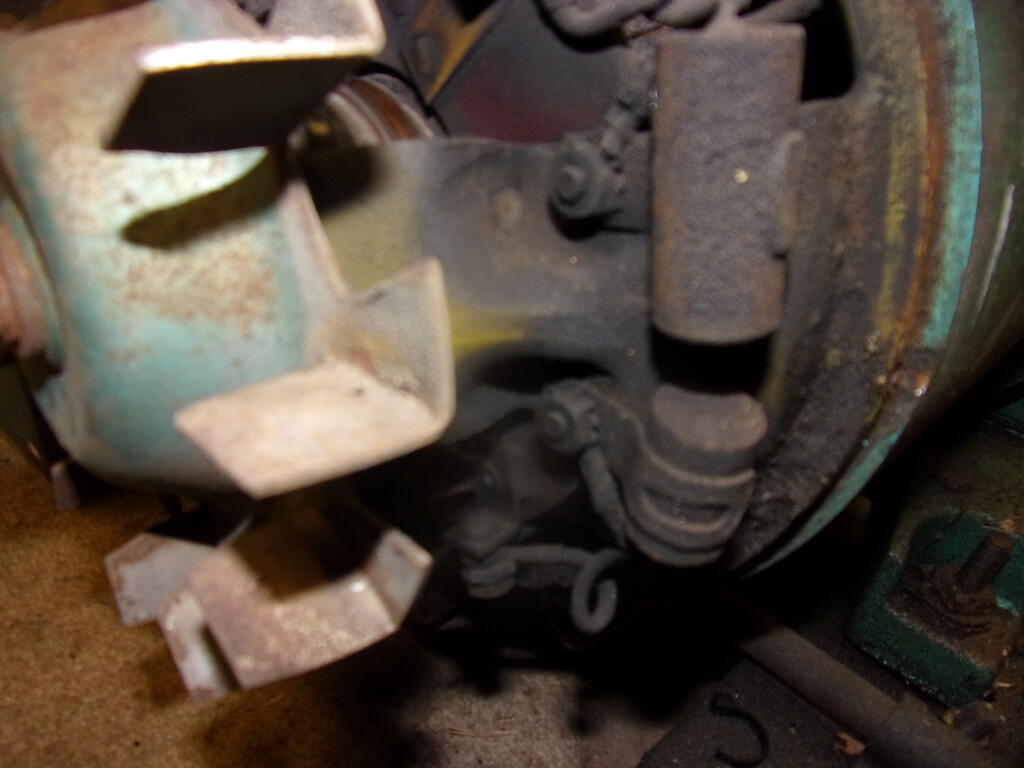

squonk 39,266 #51 Posted January 29 On 1/5/2024 at 4:48 PM, Ed Kennell said: OK, we know we have a 110vac and a 12vdc supply, so today I brough her into the heated shop to work on the compressor. Removed the carb, fuel pump, head, and some tins. Everything looks good under the head. For my first trial, I think I'll leave the valves alone close the spark plug hole and add a check valve to the exhaust pipe. I'm thinking I'll have a 1 stroke active pump and one stroke inactive. stroke intake valve exhaust valve air movement intake open closed into the cylinder compression closed closed zero only compressed power closed closed zero only expanding exhaust closed open thru the exhaust pipe, check valve to tank. Jim, I did pull the end cover off and I only see two coils (poles) so I guess I need 3600 revs to get my 60 Hz. May have to go to a smaller pulley on the gen. I see three narrow brush rings and one wider one closer to the armature. Ac and Dc ? Comments???? Air cooled engine. No gear reduction connection = 3600 RPM to me. 3 Share this post Link to post Share on other sites
Rick3478 380 #52 Posted January 29 (edited) On 1/5/2024 at 4:48 PM, Ed Kennell said: Everything looks good under the head. For my first trial, I think I'll leave the valves alone close the spark plug hole and add a check valve to the exhaust pipe. I'm thinking I'll have a 1 stroke active pump and one stroke inactive. Jim, I did pull the end cover off and I only see two coils (poles) so I guess I need 3600 revs to get my 60 Hz. May have to go to a smaller pulley on the gen. I see three narrow brush rings and one wider one closer to the armature. Ac and Dc ? Comments???? Some of the gensets were 1800 RPM four pole for lower noise, but those were usually opposed twin engines. In your case probably 3600 RPM. As for the valves, yeah the intermediate piston cycle will act like an air spring, so not much net power loss. Might add some distortion and frequency modulation to your AC. Most simple appliances don't care, but some fancy electronics and EV chargers may refuse to work. And bear in mind that the valve guides were not designed for high pressure, so you may have significant leakage into the crankcase. Which is why I suggested the spark hole with a check valve for output, but no harm to try it and see what happens. Edited January 30 by Rick3478 Added more electrical information. 2 Share this post Link to post Share on other sites
Ed Kennell 36,170 #53 Posted February 4 I wanted to do my winter warm up of a mower that has been in storage. So while it was out and running, I hooked up the gen set for it's trial run. Everything worked, 120vac lit a bulb and ran a grinder, around 13.5vdc looks good, and 30 psi from the compressor. I have a 30 psi relief valve in the loop . I can remotely run a grinder, charge a battery, and pump up a tire. I'm calling this project a success. 7 Share this post Link to post Share on other sites
Handy Don 10,817 #54 Posted February 4 11 minutes ago, Ed Kennell said: I'm calling this project a success. For sure. Quite the utility trailer for doing stuff far from the shop. 1 1 Share this post Link to post Share on other sites
wallfish 16,072 #55 Posted February 4 I luv it. Nice work Ed 1 1 Share this post Link to post Share on other sites
Rick3478 380 #56 Posted February 5 4 hours ago, Ed Kennell said: Good work! I like the combination towbar tach-a-matic. Share this post Link to post Share on other sites
