520H loader pump mount

[Ricks 520 6]

I bought a loader and I'm going to put it on my 520. Does anyone have pictures of their pump mounted on the engine. I'm sure there are different ways to do it so before I start I'd like to see how others have done it.

[lynnmor 8,091]

7 hours ago, Ricks 520 said:

I bought a loader and I'm going to put it on my 520. Does anyone have pictures of their pump mounted on the engine. I'm sure there are different ways to do it so before I start I'd like to see how others have done it.

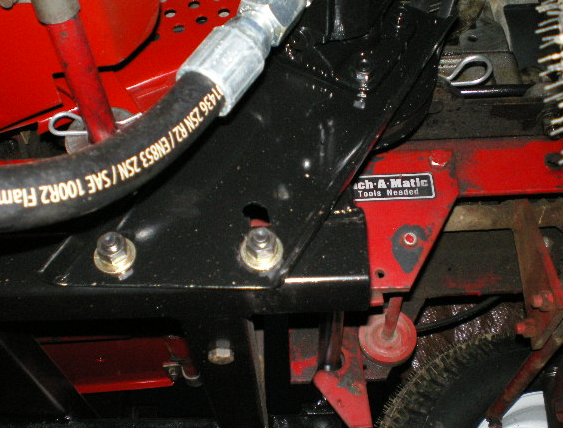

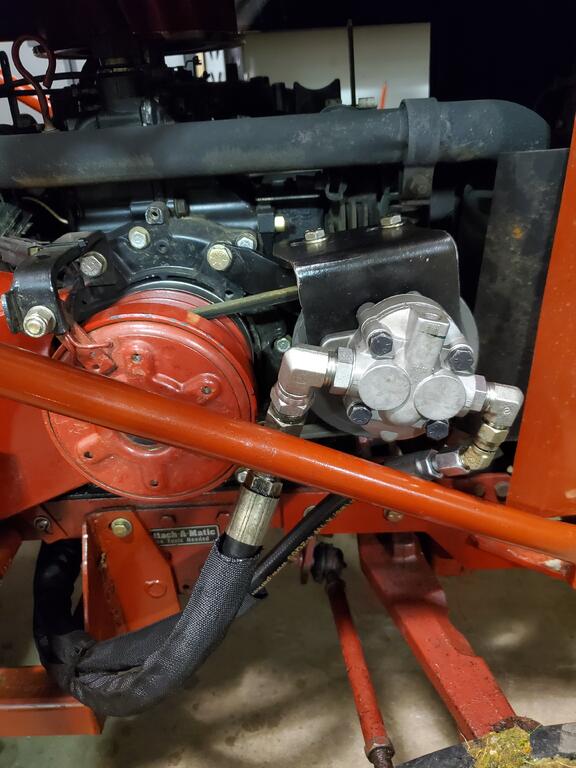

I had to replace the pump on my Kwik-way loader so a new mount was needed. The sub-frame is on the left with four bolts, I made the part holding the pump.





A manual is available here.

[JoeM 8,925]

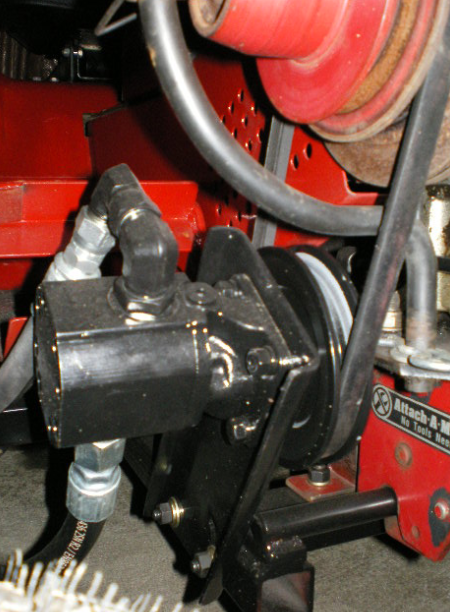

Here is a pic of one that is on a pivot with a slotted adjustment bolt. kind of like a alternator on an old Chevy belt adjustment. I tack welded the heads on the bolts on the inside so I just needed one wrench to adjust.

that pump belt just needs to be snug and not super tight. They need very little adjustment after the initial break in.

[Thor27 845]



look at @MalMac's pictures in post 6. That is on a kohler, but that bracket is very universal.  I  couldn't get better pics than that.



Edited November 24, 2023 by Thor27
add other thread
