B-80 brake pedal normal position

Recommended Posts

Heatingman

In the middle of reassembly of a B-80.



I did not own it long before I started the tear down, and its my first wheelhorse.



I just reinstalled the brake pedal and linkage, and the angle it sets at seems too severe back towards the driver.


The linkage is not adjustable.


Does this look normal to the brain trust here at the square?



I looked back at some of my before and during pictures while the pedal was still in place, but the parking brake was engaged in all of them.











  • Excellent 1

Share this post


Link to post
Share on other sites

ebinmaine

Try putting the step in place and see if the brake pedal bump stop hits either the step or the little tab beside it.

  • Excellent 1

Share this post


Link to post
Share on other sites

rmaynard

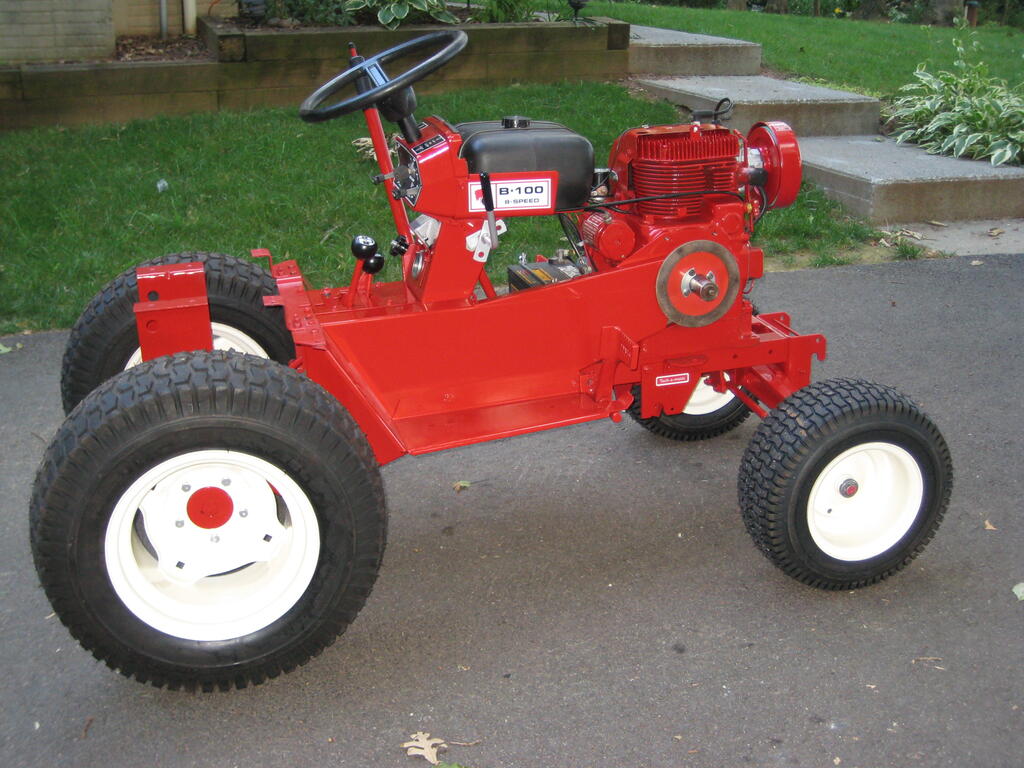

B-80 and B-100 are the same mechanically. This is the correct position for the brake pedal.

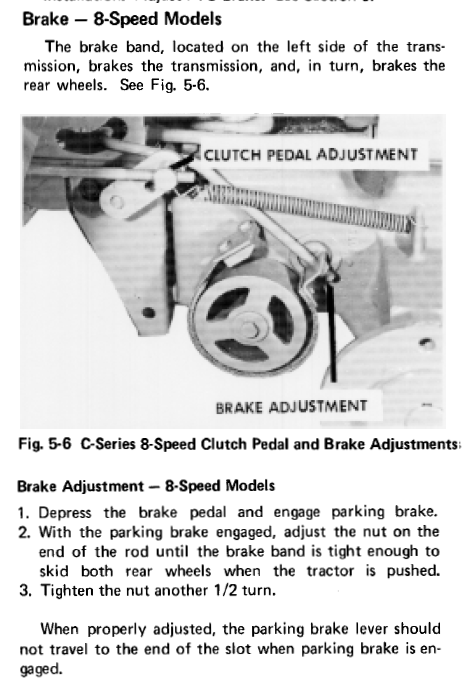

Begin by properly adjusting the brake.




  • Excellent 2

Share this post


Link to post
Share on other sites

Heatingman

What is holding that position on the brake pedal?

Share this post


Link to post
Share on other sites

Heatingman
3 hours ago, ebinmaine said:

Try putting the step in place and see if the brake pedal bump stop hits either the step or the little tab beside it.

That was it. The little flag that the linkage attaches to is also a travel range stop.






  • Excellent 2

Share this post


Link to post
Share on other sites

rmaynard
29 minutes ago, Heatingman said:

That was it. The little flag that the linkage attaches to is also a travel range stop.








Crazy stuff like having to have the footrest in place to position the pedal, and having to have the belt guard installed to make the drive belt stop, are just a few of the idiosyncrasies that make these tractors so lovable.

Share this post


Link to post
Share on other sites

ebinmaine
5 minutes ago, rmaynard said:



Crazy stuff like having to have the footrest in place to position the pedal, and having to have the belt guard installed to make the drive belt stop, are just a few of the idiosyncrasies that make the owners so lovable.
