Tiller 36in 1966 RT-366 OM IPL DNA sn.pdf

Sign in to follow this

admin

5 Screenshots

About This File

Operator manual #A-5251
IPL
6 pages 730.79KB
Includes PSB #083



Fits 875, 1075, 876, 1076 and 1276
Driven by hydro transmission pulley
Drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")

The attachment interchange states the 8-5211 speed hitch and 8-3112 pto are required but that does not sound correct.

Tiller 1966 36in model RT-366



Tiller DNA in the order they were produced

1966 tiller model RT-366

[Driven by hydro transmission pulley. Drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")]



1967 tiller model RT-367

Uses tiller hitch 7340

Rear axle hitch mounts behind rear axle

7353 idler arm mounts to rear of tractor frame

[Front drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")

Rear drive belt 7358 (4L x 65.95" or 1/2" x 65.95")]

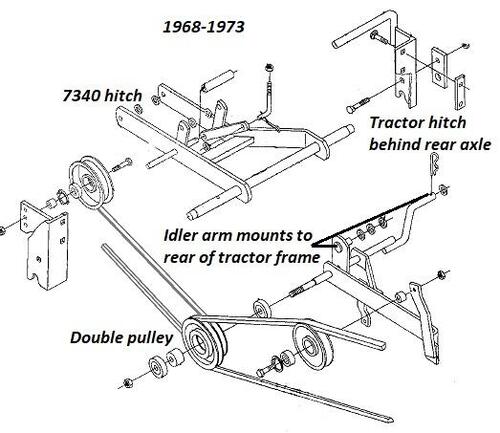

1968-1973 tiller model 7-1211

Uses tiller hitch 7340

Rear axle hitch mounts behind rear axle

7697 idler arm mounts to rear of tractor frame

[Front drive belt for short frame models 867, 875, 876, 87 and 1075 #1576 replaced by 9691 (HA x 70" or 1/2" x 70")

Front drive belt for long frame models #1586 replaced by 9714 (HA x 76" or 1/2" x 76")
Rear drive belt for all #7358 (4L x 65.95" or 1/2" x 65.95")]

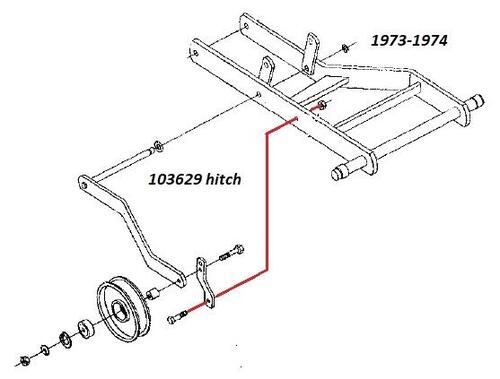

1973-1974 tiller model 7-1251

Uses tiller hitch 103629

Rear axle hitch mounts under rear axle

103632 idler arm pivots in hitch

No rear shield

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]

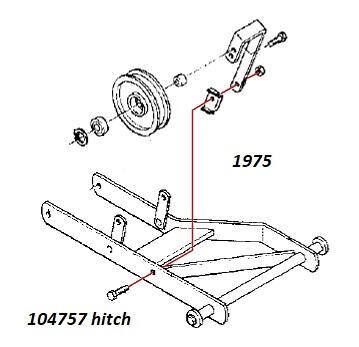

1975 tiller  model 7-1252

Uses tiller hitch 104757

Rear axle hitch mounts under rear axle

104660 idler arm bolted to hitch - following models welded

104437 rear shield mounted on 104438 rear piano hinge

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]

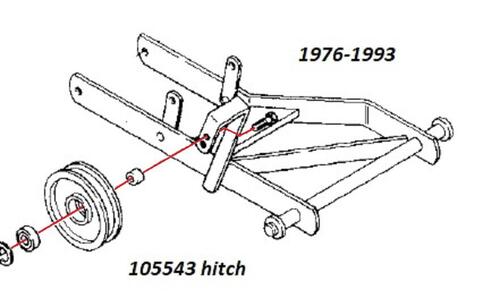

1976 tiller model 67-36TL01

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

104437 rear shield mounted on 104438 rear piano hinge

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1977 tiller model 77-36TL01

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

104437 rear shield mounted on 104438 rear piano hinge

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1977 tiller model 77-36TL02

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

106092 rear shield mounted by three straps

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1978 tiller model 87-36TL01

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

106092 rear shield mounted by three straps

No belt guard on front idler assembly

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1979 tiller model 97-36TL01

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

106092 rear shield mounted by three straps

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1980-1982 tiller model 07-36TL01

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

106092 rear shield mounted by three straps

Belt guard on front idler assembly retained by pulley shaft nut

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1983-1985 tiller model 07-36TL02

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

First belt guard on front idler assembly to be retained by bolts to a welded-on bracket

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1986-1989 tiller model 07-36TL03

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

[Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1990-1991 tiller model 07-36TL04

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

[Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1992 tiller model 07-36TL05

Uses tiller hitch 105543

Rear axle hitch mounts under rear axle

[Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]



1993-2001 2003-2007 tiller model 79370

Rear axle hitch mounts under rear axle

[Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")]




×
×
