Tractor 1983 LT -Series Wiring Detailed Rev.pdf

Sign in to follow this

admin

4 Screenshots

About This File

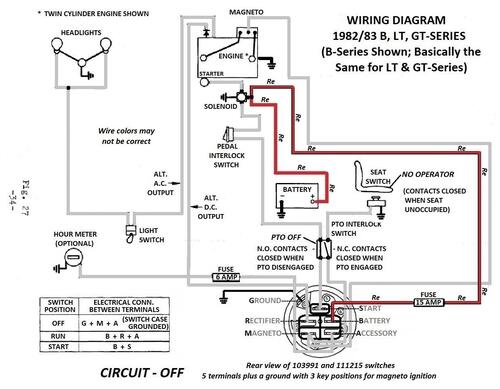

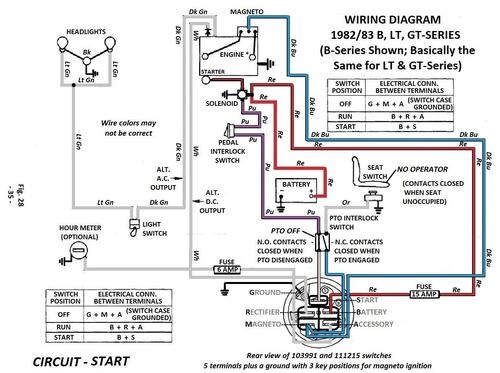

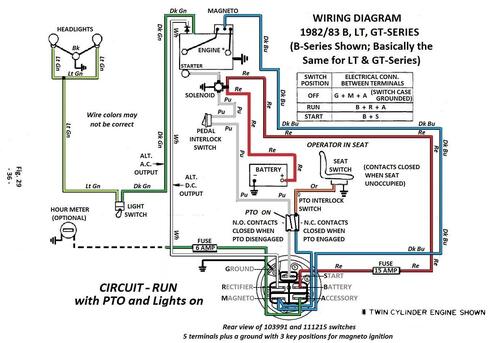

Wiring Detailed Color pdf

4 pages 1.23 MB



1983 LT-832 3-Speed model A2-083202* Work Horse WorkHorse

1983 LT-1136 3-Speed model D2-113601* Work Horse WorkHorse

1983 LT-1137 3-Speed model D2-113701* Work Horse WorkHorse - Incorrectly named a LT-1136 3-Speed @ Toro

1983 LT-1637 Twin 3-Speed model D2-163701* Work Horse WorkHorse



* These all use conventional breaker point magneto ignition.




×
×
