Snowthrower 26in Walk behind 1969 7hp 4-2633 D&A TPL sn.pdf 1.0.0

Sign in to follow this

gwest_ca

1 Screenshot

About This File

Illustrated parts list from Toro Master Parts Viewer

4 pages 219KB

2 pages from 1968 model 4-2632 to get illustrations

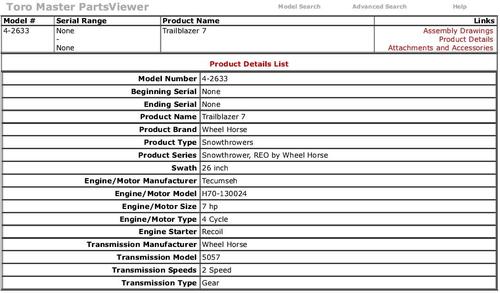

Details only - No attachment list but there was a 5-4321 32" rear discharge mower deck

1 page 37KB



Named a Trailblazer 7 at Toro

Uses 5057 transmission and 7487 rotor drive



Impeller belt 6506 (4L x 31.91" or 1/2" x 31.91") [Gates 6832]

Transmission belt 6551 (3L x 30.5" or 3/8" x 30.5") [Gates 6731]

Reverse belt 6552 (3L x 30.07" or 3/8" x 30.07") [Gates 6730]



Snowthrower 1969 26in model 4-2633




×
