About This File

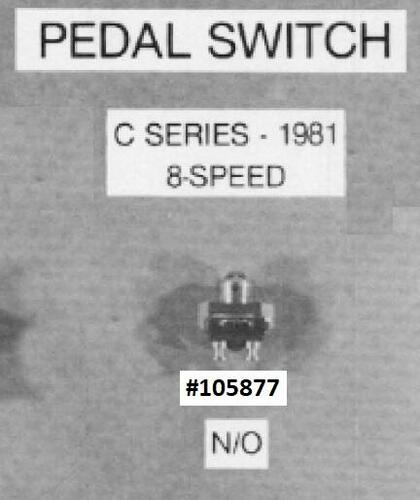

Clutch pedal and neutral switch taken from #492-4207 Electrical Service Manual

Also used as a pto switch on some models



Plastic 2-wire slide-on connector 106024 less terminals used 1977-1980 - nla

Plastic 2-wire slide-on connector 106771 less terminals used 1980-1983 - still available from Toro

9/16-18 threads on 102277 mounting nut



82-12o502* - Correct

82 -12o502 - Not correct

82-12o502 - Suspicious and not checked or determined yet

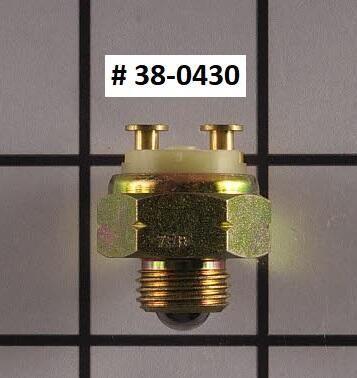

105877 replaced by 38-0430 after tractor production. Ball switch NO=Normally open - Nail head terminals for a slide on Packard connector. Some illustrations show a switch with flat spade terminals.

38-0430 also replaces 40-7410, 40-7440 and 517281 - No record of where these were used.



105877 ball switch used on

1976 models 61 -07K802, ,61 -08K803 61 -10K803, 61 -12K803, 61-12KS03(1)*, 61 -16K803, 61-16KS03(1)*



1977 models 71-07K801(2)*, 71-08K801(2)*, 71-10K801(2)*, 71-12K801(2)*, 71-12KS01(1)*, 71-12KS02, 71-16K801(1), 71-16K802(2)*, 71-16KS01(1)*, 71-16KS02(2)*



1978 models 81 -08K801, 81-10K801, 81-12K801, 81-12KS01, 81-14K801, 81-14KS01, 81-16B801, 81-16BS01, 81-16K801, 81-16KS01



1979 models 91-08K801*, 91-08K802*, 91-10K801, 91-10K802*, 91-11B801*, 91-12K801, 91-12K802*, 91 -12KS01, 91-14K801, 91-14K802*, 91 -14KS01, 91-16B801, 91-16B802*, 91 -16BS01, 91 -16BS02, 91-16K801*, 91 -16KS01, 93-05BP01, 93-05BP02, 93-08BP01, 93-08BP02, 93-08XP02, 93-11BP01



1980 models 01-08K801, 01-10K801, 01-11B803, 01-12K801, 01-12KE01, 01-12KS01, 01-14E801, 01-14K801, 01-14KE01, 01-14KS01, 01-16K801, 01-16KE01, 01-16KS01, 01-17K801, 01-17KE01, 01-17KS02, 02-08BP01, 02-11BP02, 02-11BX01, 02-16BP01, 03-05BP01, 03-08BP01, 03-08EP01*E, 03-08XP01, 03-11BP01



1981 models 01-08K802, 01-10K802, 01-11B804, 01-12K802, 01-12KE02, 01-14E801, 01-14K802, 01-14KE02, 01-16K802, 01-16KE02, 01-17K802, 01-17KE01, 02-08BP02, 02-08BP03, 02-11BP03, 02-11BP04, 02-11BX02, 02-11BX03, 02-16BP02, 02-16BP03, 03-05BP02, 03-08BP02, 03-08EP01*E, 03-11BP02



1982 models 01-11BH01* for seat switch and clutch, 01-14E801, 01-16KH01* for clutch, 02-11BH01* for clutch, 03-08EP01*E, 23-05BP01, 23-08BP01, 23-11BP01, 23-11BX01, A3-053201, A3-083201



1983 models 01-14E801, 03-08EP01*E



1985 models 33-08B301, 33-08B501, 33-08X301, 33-11B501


















×
×
