Switch Pto Safety Push-button 104680 List.jpg 1.0.0

Sign in to follow this

gwest_ca

9 Screenshots

About This File

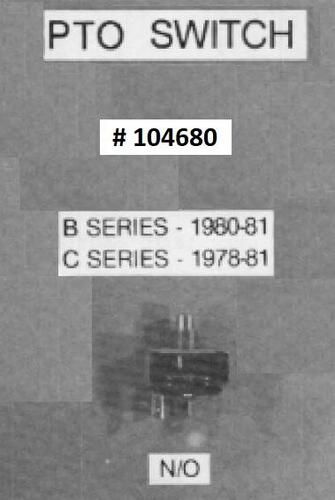

Taken from #492-4207 Electrical Service Manual

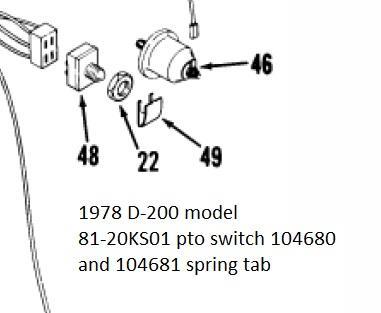

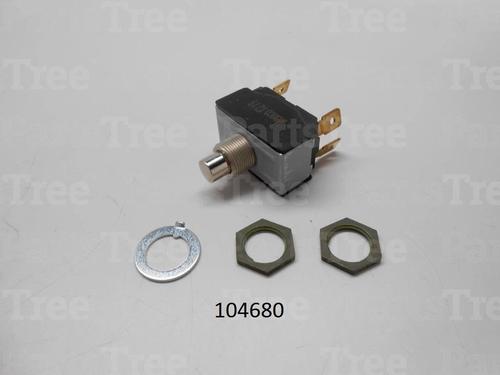

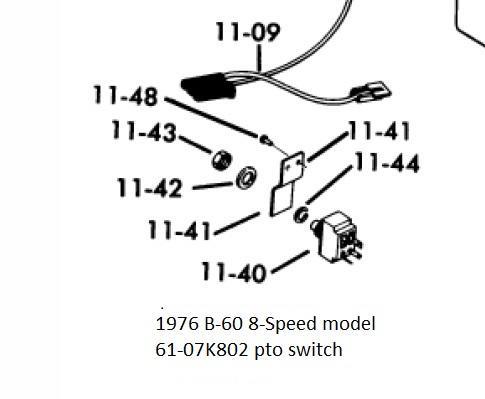

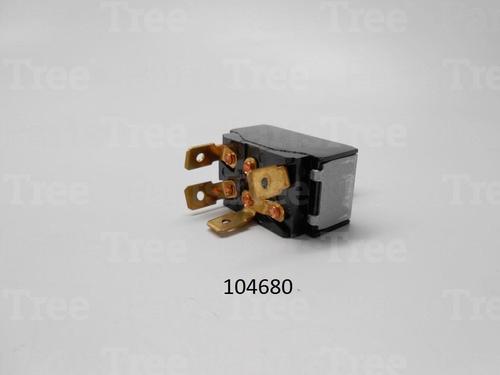

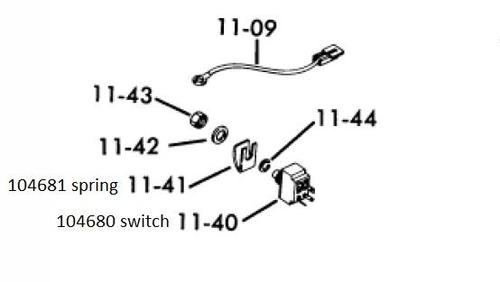

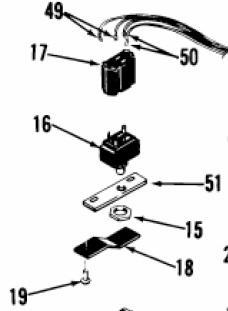

104680 Pto Safety push-button switch with 4 terminals to control ignition and starter solenoid. Both pairs of terminals NO=Normally open.

Models using this switch also have a seat switch.

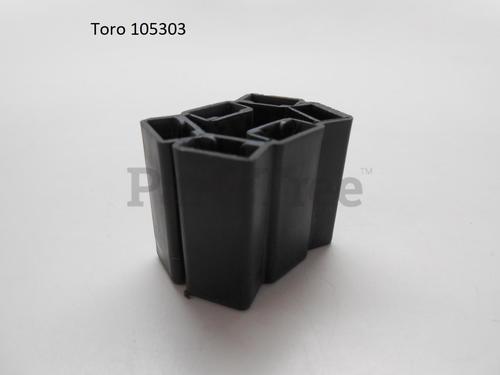

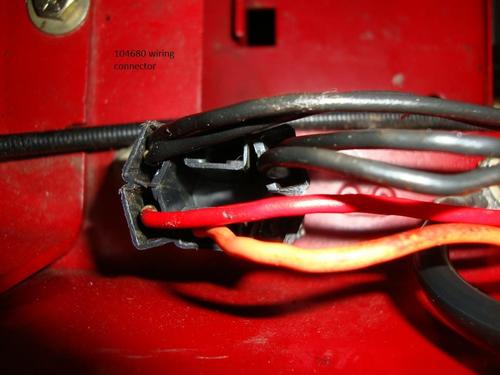

Photo of 105303 plastic wiring connector supplied by hondagod64



82-12o502*C - Correct and Tractor Series

82 -12o502 - Not correct

82-12o502 - Suspicious and not checked or determined yet



104680 Pto push-button switch used on

1975 models 1-0141, 1-0357, 1-0375, 1-038*1, 1-0391*, 1-0395*, 1-0396, 1-0481*, 1-0491*, 1-0511, 1-0612, 1-0631, 1-0651



1976 models 61-07K801, 61-07K802, 61-08K801, 61-08K802, 61-08K803, 61-08K804, 61-10K801, 61-10K802, 61-10K803, 61-10K804, 61-12K801, 61-12K802, 61-12K803, 61-12K804, 61-12KS01, 61-12KS02, 61-12KS03, 61-12KS04, 61-16K801, 61-16K802, 61-16K803, 61-16K804, 61-16KS01, 61-16KS02, 61-16KS03, 61-16KS04, 61-16OS01, 61-16OS02, 61-20KS01, 61-20KS02



1977 models 71-12KS01, 71-16K801, 71-16KS01, 71-16OS01, 71-20KS01



1978 models 81-08K801*C, 81-10K801*C, 81-12K801*C, 81-12KS01*C, 81-14K801*C, 81-14KS01*C, 81-16B801*C, 81-16BS01*C, 81-16K801*C, 81-16KS01*C, 81 -16OS01*, 81 -20KS01*



1979 models 91-08K801*C, 91-08K802*C, 91-10K801*C, 91-10K802*C, 91-11B801*C, 91-11BS01*, 91-12K801*C, 91-12K802*C, 91-12KS01*C, 91-14K801*C, 91-14K802*C, 91-14KS01*C, 91-16B801*C, 91-16B802*C, 91-16BS01*C, 91-16BS02*C, 91-16K801*C, 91-16KS01*C, 91 -16OS01, 91 -20KS01, 91 -20KS02



1980 models 01-08K801*C, 01-10K801*C, 01-11B803, 01-12K801*C, 01-12KE01*C, 01-12KS01*C, 01-14K801*C, 01-14KE01*C, 01-14KS01*C, 01-16K801*C, 01-16KE01*C, 01-16KS01*C, 01 -16OS01, 01-17K801*C, 01-17KE01*C, 01-17KS02*C, 01 -20KS00, 02-08BP01*B, 02-11BP02*B, 02-11BX01*B, 02-16BP01*B



1981 models 01-08K802*C, 01-10K802*C, 01-11B804, 01-12K802*C, 01-12KE02*C, 01-14K802*C, 01-14KE02*C, 01-16K802*C, 01-16KE02*C, 01-17K802*C, 01-17KE01*C, 01 -20KS00, 02-08BP02*B, 02-08BP03*B, 02-11BP03*B



1982 models 01-11BH01, 01-16KH01*, 02-11BH01
