Switch Pto Safety & Park Brake Lever 111332 List.jpg 1.0.0

Sign in to follow this

gwest_ca

7 Screenshots

About This File

From the #492-4509 Electrical Service Manual

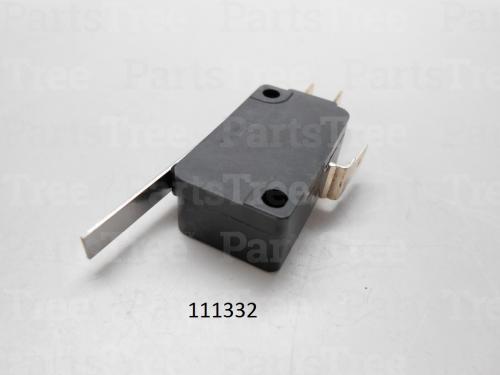

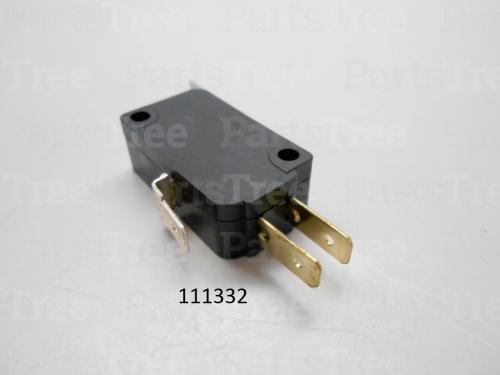

111332 switch

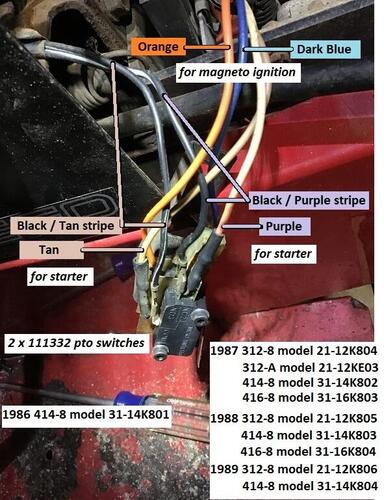

Wiring to switches photo 1987-1989 312, 1987-1988 416, 1989 414

1 page 211KB



Two used as a pto safety switch and one for the parking brake light

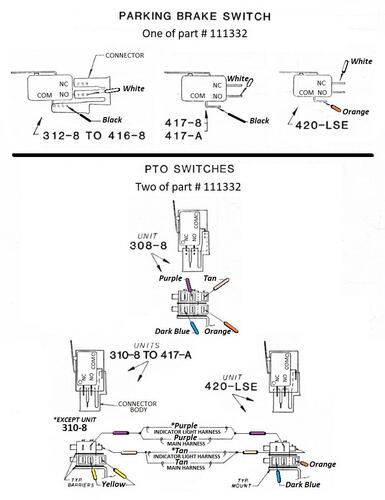

Schematics taken from 1986 300-Series 400-Series IPL SM Wiring

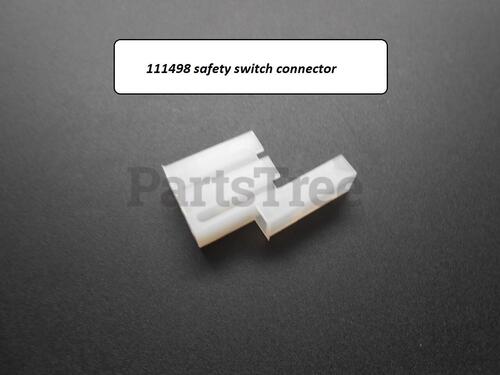

White plastic wire connector part number 111498 for 111332 switches

Also used on the 114240 and 112418 seat switch



Usage list - 26 pages pdf

82-12o502* - Correct

82 -12o502 - Not correct

82-12o502 - Suspicious and not checked or determined yet



111332 switch used on

1986 models 21-08K801, 21-08K802, 21-10K802, 21-10K803, 21-12K802, 21-12K803, 21-12KE01, 21-12KE02, 22-08B302, 22-11B302, 22-11B502, 22-12TE01, 31-14K801, 31-16K802, 31-17K802, 31-17KE02, 31-20KE01, B1-12R801, C1-12R801



1987 models 21-08K803, 21-10K804, 21-12K804, 21-12KE03, 31-14K802, 31-16K803, 31-18K801, 31-18KE01, 32-11B301, 32-11B501, 33-08B304, 33-08B401, 33-08B503, 33-11B503, 33-11B601, 41-18KE01, B2-11B392, B3-08B391, B3-11B591, C3-12K501



1988 models 21-08K804, 21-10K805, 21-12K805, 22-13KE01, 22-17KE01, 31-14K803, 31-16K804, 31-16OE01, 31-18OE01, 31-20OE01, 33-08B402, 33-08B504, 33-11B602, B1-16O801, C1-20OE01, C3-12K502, E1-12K801, E1-18OE01, E2-13K501, E2-17K501, F2-09K401



1989 models 21-10K806, 21-12K806, 22-13KE02, 22-17KE02, 31-14K804, 31-16O801, 31-18OE02, 31-20OE02, 32-11B403, 32-12B501, 32-12BE01, 42-08B401, 42-11B501, B1-16O802, C1-20OE02, E1-12K802, E1-18OE02



1990 models 31-10K801, 31-12K801, 31-12KE01, 31-16O802, 32-10B501, 32-10BE01, 32-12O501, 32-12OE01, 41-16OE01, 41-20O801, 41-20OE01, R1-12K801, R1-12K802, R1-16O801, R1-16O802, R1-18OE01, R1-18OE02, R2-17K502



1991 models 31-10K802, 31-12K802, 31-16O803, 32-12O5A1, 32-12OEA1, 32-12B5A2, 32-12BEA2, 41-20OE02, 51-12KE01, 51-16OE01, A2-12K501, A2-12KE02



1992 models 31-10K803, 31-12K804, 31-16O804, 41-20OE03, 51-12KE02, 51-16OE02, R1-12K804, R1-16O804, R1-20OE02



1993 models 73320, 73380, 73400, 73401, 73420, 73421, 73440, 73501, 73520



1994 models 73362, 73380, 73400, 73401, 73420, 73421, 73440, 73501, 73520



1995 models 73362, 73400, 73401 x 3, 73420 x 3, 73421 x 2, 73440 x 2, 73501 x 4



1996 models 73362, 73363, 73400, 73401, 73402, 73403, 73420, 73421, 73422, 73423, 73441, 73501, 73502, 73521



1997 models 73363, 73402, 73403, 73422, 73423, 73441, 73502, 73521



1998 models 73428 x 2, 73448 x 2



1999 models 73429, 73449



2000 models 73429, 73449



2001 models 73429, 73449



2002 model 73450



2003 model 73450



2004 model 73450



2005 model 73450



2007 model 73450




×
×
