About This File
Lube chart SS
-------------------------------------------------------------------------------------------------------------------------
IPL from the Toro Master Parts Viewer - Model 03-08BP03
28 pages 1.6MB
Details and Attachments
2 pages 113KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
1983 A-81 5-Speed Rear Engine Rider model 03-08BP03
----------------------------------------------------------------------------------------------------
IPL from the Toro Master Parts Viewer - Model 23-08BP02
36 pages 2.1MB
Details and Attachments
2 pages 113KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
Mower drive belt 108491 (1/2" x 67") - Standard equipment 05-32XS02 mower deck
1983 A-81 5-Speed Rear Engine Rider model 23-08BP02
1983 serial numbers that have shown up for the 23-08BP02
22382 - Build date 1983 3054 February 23 Wednesday
----------------------------------------------------------------------------------------------------
IPL from the Toro Master Parts Viewer - Model 23-08BX01
37 pages 2.1MB

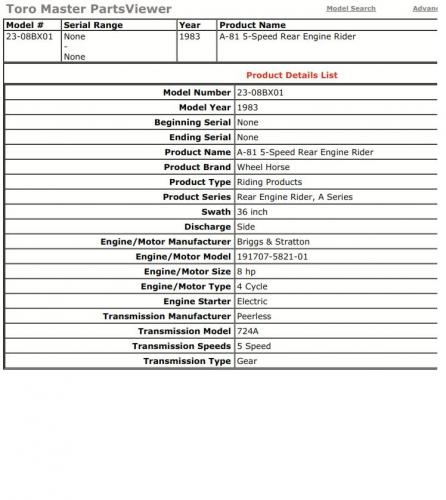

Details and Attachments
2 pages 113KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
Mower drive belt 108492 (1/2" x 57.5") - Standard equipment 05-36YR01 mower deck
Spindle belt 8411 (1/2" x 76.94")
1983 A-81 5-Speed Rear Engine Rider model 23-08BX01
------------------------------------------------------------------------------------------------------
IPL from the Toro Master Parts Viewer - Model 23-08XP01
28 pages 1.6MB

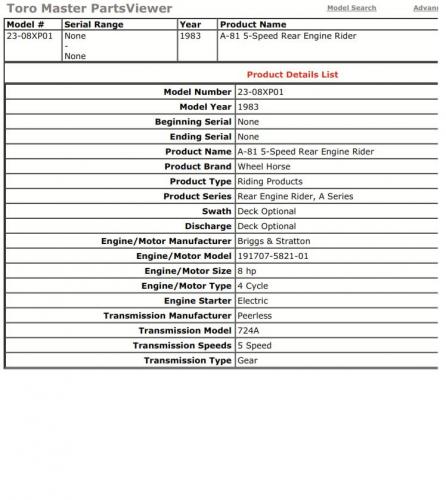

Details and Attachments
2 pages 113KB
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
1983 A-81 5-Speed Rear Engine Rider model 23-08XP01
