Tractor 1979 B, C & D-Series SM Wiring Revised #810063R1.pdf

Sign in to follow this

gwest_ca

8 Screenshots

About This File

Service manual

Wiring

74 pages 15.69MB

Dated 07/78

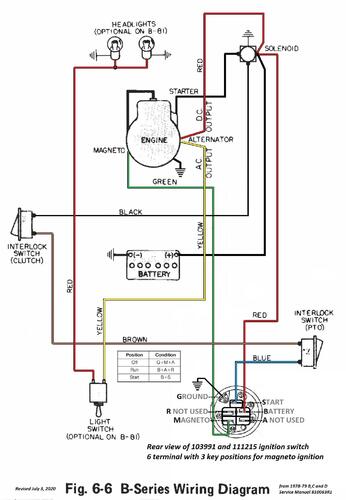

B-Series wiring color pdf

1 page 392KB

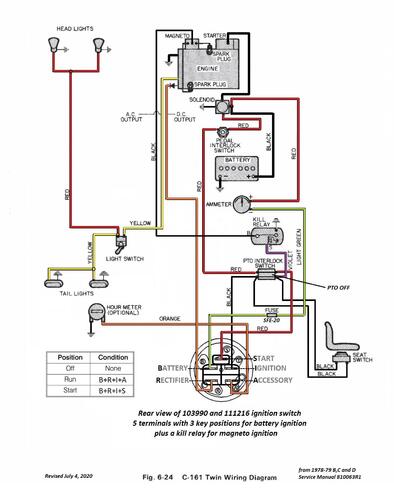

C-161 Twin wiring color pdf

1 page 352KB

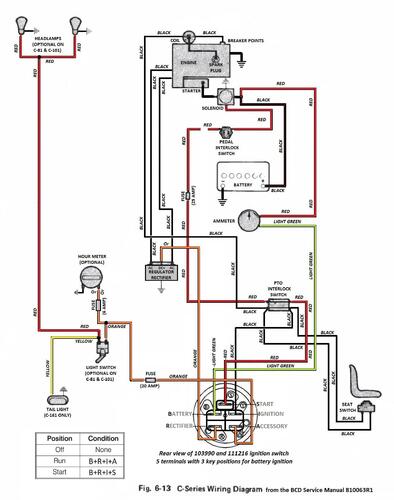

C-Series wiring color pdf

1 page 366KB



D-160 wiring color pdf

1 page 367KB



D-200 wiring color pdf

1 page 380KB

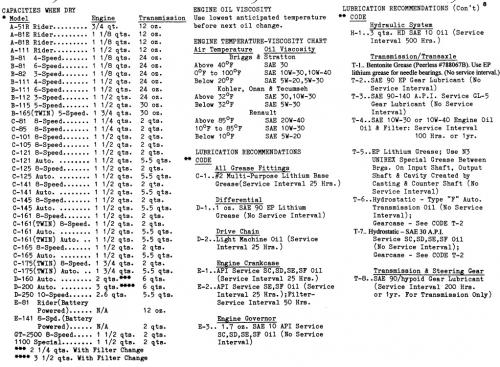

Lube chart SS



Rear wheel hub set screw torque 28-32 Ft. Lb. or 39-45 Nm



Service manual 27 pages 4.71MB

Section 1 - Specifications including spark plugs used and gaps - NOTE - Correct spark plug for Onan B43 - 48M is RH18Y

Section 2 - Pre-delivery Service

Section 3 - General Maintenance

Section 4 - Engine



Service manual 18 pages 4.87MB

Section 5 - Clutch, Brakes, Transmission/Transaxle



Service manual 13 pages 2.63MB

Section 6 - Electrical



Service manual 16 pages 3.48MB

Section 7 - Attachment Lifts

Section 8 - Chassis

Section 9 - Power Take-off (PTO)



1979 B-81 model 92-08BP01 in 1978-79 service manual is likely a mistake

1979 B-81 6-Speed model 92-08BF01

1979 B-111 4-Speed model 92-11BP01

1979 B-111 6-Speed model 92-11BF01 (Made in USA)

1979 B-111 6-Speed model 91-11BF91 (Made in Belgium with serial 170049)

1979 B-111 6-Speed model 92-11BF91 (Made in Belgium with serial 178838 & 182588)

1979 B-111 6-Speed model 92-11BF92 (Made in Belgium with serial 175611)



1979 C-81 8-Speed model 91-08K801

1979 C-81 8-Speed model 91-08K802

1979 C-81 8-Speed model 91-08K891 (Made in Belgium with serial 163175)

1979 C-101 8-Speed model 91-10K801

1979 C-101 8-Speed model 91-10K802

1979 C-101 8-Speed model 91-10K892 (Made in Belgium with serial 183695)

1979 C-111 8-Speed model 91-11B801

1979 C-121 8-Speed model 91-12K801 (Two found made in Belgium)

1979 C-121 8-Speed model 91-12K802

1979 C-121 8-Speed model 91-12K891 (Made in Belgium with serials 167136 169593)

1979 C-121 8-Speed model 91-12K892 - Belgium built with serial 184568

1979 C-121 Automatic model 91-12KS01

1979 C-121 Automatic model 91-12KS91 (Made in Belgium with serial 16?329)

1979 C-141 8-Speed model 91-14K801

1979 C-141 8-Speed model 91-14K802

1979 C-141 Automatic model 91-14KS01

1979 C-161 8-Speed model 91-16K801

1979 C-161 Automatic model 91-16KS01 (One found in Holland Made in Belgium)

1979 C-161 Automatic model 91-16KS91 - Made in Belgium serial 167284

1979 C-161 Twin 8-Speed model 91-16B801

1979 C-161 Twin 8-Speed model 91-16B802

1979 C-161 Twin Automatic model 91-16BS01

1979 C-161 Twin Automatic model 91-16BS02

1979 C-171 Automatic model - that was not built



1979 D-160 Automatic model 91-16OS01

1979 D-160 Automatic model 91-16OS02 - Not listed @ Toro and may be an invalid model number

1979 D-200 Automatic model 91-20KS01

1979 D-200 Automatic model 91-20KS02
