Tractor 1984 C-125 8-Speed D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
44 pages 3.06MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

Original OM #810343R1
Original IPL #810349R1

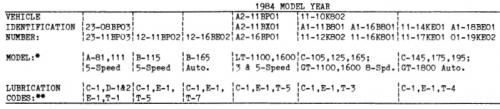

Lube chart SS



Details & Attachments
3 pages 117.60KB



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"



1984 C-125 8-Speed model 11-12K802
1984 serial numbers that have shown up for the 11-12K802
28022

28650



Links

For engine operator manual see

For transmission service manual see



Some models use 8048 transmission carrier bearing and 8052 inner race.

For product service bulletin see




×
×
