Tractor 1993 312-8e Wiring Detailed Rev.pdf

Sign in to follow this


2 Screenshots

About This File

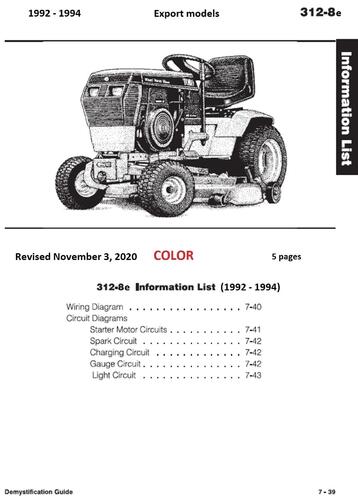

Detailed wiring from the Demystification Guide #492-4509

Pages p7-39e to 7-43e

5 pages 1.5MB


We do not have an original diagram.

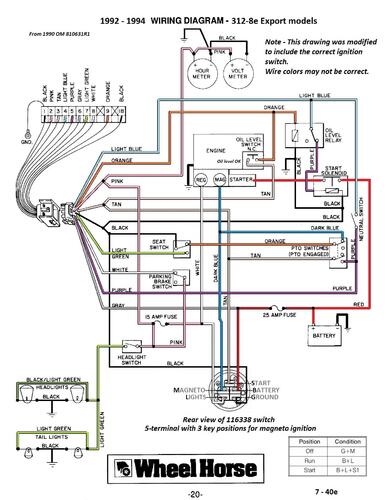

Illustration modified to include the correct ignition switch.

Wire colors may not be correct


1993 312-8 Domestic - no 1993 North American model produced


1993 312-8 model 73380 Serial 3900001-3999999 - Export model 312-8e
