About This File
IPL from Toro Master Parts Viewer
54 pages 3.53MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Transmission drive belt 109748 - (HB/5L x 87.25" or 5/8" x 87-1/4")
It is rumoured that 501 total units were built 1982-1983 and 155 units built 1984

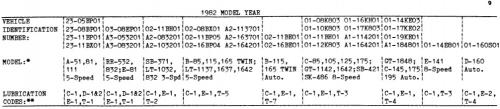

Lube chart SS
Details & Attachments
3 pages 117.19KB

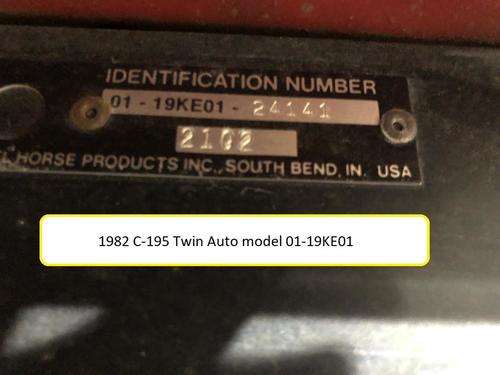

1982 C-195 Twin Auto model 01-19KE01
1982 serial numbers that have shown up for the 01-19KE01
24007 - Build date 1982 2097 April 07 Wednesday
24044 - Build date 1982 2097 April 07 Wednesday
24076 - Build date 1982 2097 April 07 Wednesday
24078 - Build date 1982 2097 April 07 Wednesday
24083 - Build date 1982 2098 April 08 Thursday
24141 - Build date 1982 2102 April 12 Monday
24166 - Build date 1982 2102 April 12 Monday
24198 - Build date 1982 2102 April 12 Monday
24267 - Build date 1982 2130 May 10 Monday
24268 - Build date 1982 2130 May 10 Monday
24305 - Build date 1982 2131 May 11 Tuesday
24383 - Build date 1982 2131 May 11 Tuesday
24387 - Build date 1982 2131 May 11 Tuesday
24426 - Build date 1982 2132 May 12 Wednesday
24451 - Build date 1982 2132 May 12 Wednesday
24458 - Build date 1982 2132 May 12 Wednesday
24466 - Build date 1982 2132 May 12 Wednesday
24487 - Build date 1982 2132 May 12 Wednesday
24490 - Build date 1982 2132 May 12 Wednesday
Original OM #810297R1 - Also in #810302R1
Original OM #810343R1 and Supplement #810366R1 likely for 1983
Original IPL #810315R1
Links
For tractor operator manual see
- Not listed @ Toro
For engine service manual see
For engine IPL see
For electrical service manual see
For Eaton hydro transmission service manual see
For Toro hydraulic Productivity series see
For lift valve and cylinder service manual see
