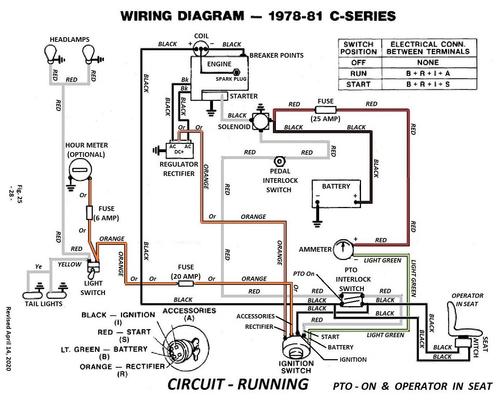

Tractor 1978 C-161 Auto D&A TIPL Wiring Revised SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL from Toro Master Parts Viewer
47 pages 3.53MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.


1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification pdf

4 pages 1.4MB



Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")

Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379


Lube chart SS


Details & Attachments
4 pages 123.57KB

1978 C-161 Auto model 81-16KS01

1978 serial numbers that have shown up for the 81-16KS01

006107
006345

006398 - Build date 1978 8047 February 16 Thursday
006476 - Build date 1978 8088 March 28 Monday
006481 - Build date 1978 8088 March 28 Monday

Links

For tractor service manual see

For electrical service manual see

For Sundstrand service manual see

For Hydraulic service manual see

For Hydraulic lift service manual #492-4208 see




×
×
