About This File
IPL #A-5344
8 pages 1.92MB
Dated 10/72
Includes Mower decks 5-0200 and 5-0201

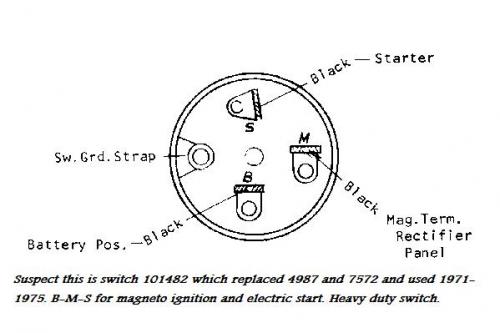

Uses 101482 ignition switch for electric start
1 page 98KB
Uses 102820 ignition switch for recoil start and no longer available
The online parts lists at Toro incorrectly have the 1973 18hp Auto parts listed for the 1-8755
Transmission drive belt 8911 - (4L x 83.10" or 1/2" x 83.1")
4380 mower blade replaced by 6758 blade replaced by 100355 2-blade set (5/8" x 3/4" hole)

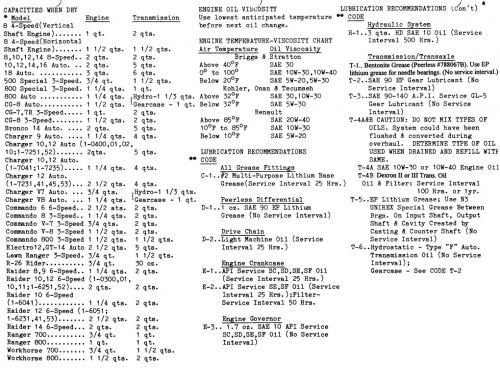

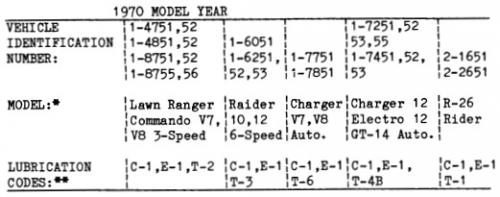

Lube chart SS
Details & Attachments
2 pages 108.53KB
1970 Lawn Ranger model 1-8751 - starter unknown
Details & Attachments
2 pages 108.76KB
1970 Lawn Ranger model 1-8752 - starter unknown
1970 serial numbers that have shown up for the 1-8752
119125 - Made in Belgium
Details & Attachments
2 pages 108.62KB
1970 Lawn Ranger model 1-8755 - starter unknown (Note - The online parts lists at Toro incorrectly have the 1973 18hp Auto parts listed)
Details & Attachments
2 pages 108.33KB
1970 Lawn Ranger model 1-8756 - starter unknown
1970 serial numbers that have shown up for the 1-8756
112938 - Made in Belgium - Located in Yorkshire
114922 - Made in Belgium - Located in Yorkshire
725665
725676
