Tractor 1986 414-8 Wiring Detailed Rev.pdf

Sign in to follow this

admin

2 Screenshots

About This File

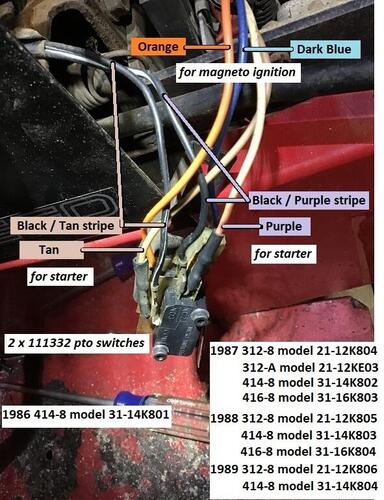

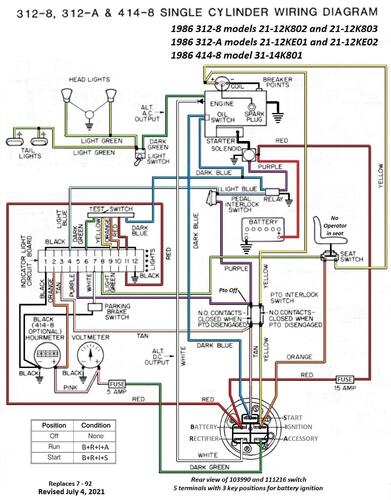

Wiring Detailed from Demystification Guide #492-4509 - Note - The diagram in the 523 page Demystification Guide is wrong. It shows magneto ignition and 15 amp stator



Wiring Detailed from Demystification Guide #492-4509 Color pdf

6 pages 1.9MB

p7-45 to p7-49



Uses Kohler K321S-60440 with battery ignition and 3 amp unregulated charging system

First year for low oil switch and relay



1986 414-8 model 31-14K801








×
×
