Manual

Manual transmissions

102 files

  1. Free

    Transmission Gear Uni-drive 1958-2007 Shifter.jpg

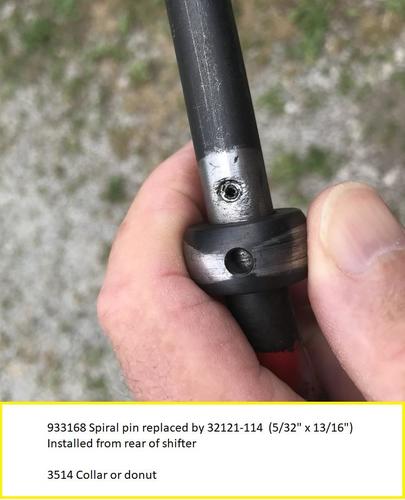

    933168 roll pin for the shifter donut 5/32" x 13/16"
    Replaced by 32121-114 spirol pin

    3514 collar commonly called a donut

    1239 dog-point set screw 1/4-20 x 3/4"

    5278 straight shifter without collar or donut

    Interesting find - the 103918 transmission used in the E-141 8-Speed shows
    933169 spirol pin replaced by 32121-108 is 5/32" x 7/8"
    107596 is the shifter collar or donut

    39 downloads

    Updated

  2. Free

    Transmission Gear Uni-drive 3-speed 1.125in axle 2-pinion 5058 1967 IPL.pdf

    Model 5058
    IPL
    1-1/8" axles
    2 beveled pinion gears three-speed
    2 pages 349.75KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    Believe the 5080 on this ipl is incorrect and should be 5058. The 5080 uses spur pinion gears.
    5058 transmission used in
    1967 model 1057
    1967 model 1257

    For low resolution transmission service manual see
    For high resolution transmission service manual see


    72 downloads

    Updated

  3. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 4-pinion 92-8707 1993-1996 IPL.pdf

    Model 92-8707
    IPL
    1-1/8" axles
    4-pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Double axle seals
    4 pages 1.09MB

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Toro lists the 92-8707 transmission with 8 pinions and double axle seals for 1993-2005 and 2001
    The parts lists show the 92-8707 transmission used only in the following models
    1993 312-8e model 73380 - Original IPL n/a (This model missed in attachment list and belt charts)
    1994 312-8 model 73362
    1995 312-8 model 73362
    1996 312-8 model 73362
    1996 312-8 model 73363
    1997-2001 models use 94-6670 (4-pinion) transmission
    or
    1997-2005 and 2007 use 94-6671 (8-pinion) transmission

    89 downloads

    Updated

  4. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 92-8708 1994-1996 IPL.pdf

    Model 92-8708
    IPL
    1-1/8" axles (Uses 2 105875 axles 13" long and 937108 Woodruff #22 keys - 1/4" x 1-3/8")
    8-pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Double axle seals
    4 pages 1.08MB

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    e = Export models
    Toro lists the 92-8708 transmission with 8 pinions and double axle seals for 1993-2005 and 2007
    The parts lists show the 92-8708 transmission used only in the following models
    1994 312-8 model 73380 - Toro lists this model as using 92-8707 trasmission which is not correct according to IPL #3316-897
    1994 314-8 model 73400
    1994 416-8 model 73420
    1994 416-8e model 73440
    1995 314-8 model 73400
    1995 416-8 model 73420 serial 5900000-5900614 - A guess because the original ipl n/a
    1995 416-8 model 73420 serial 5900615-5900714
    1995 416-8 model 73420 serial 5900715-5999999
    1995 416-8e model 73440 serial 5900000-5900222
    1995 416-8e model 73440 serial 5900223-5999999
    1996 314-8 model 73400
    1996 314-8 model 73402 - Toro lists this model as using 92-8707 trasmission with 4 pinions and double axle seals.
    1996 416-8 model 73420
    1996 416-8 model 73422 - Toro lists this model as using 92-8707 trasmission with 4 pinions and double axle seals.
    1996 416-8 model 73441
    1997-2001 models use 94-6670 (4-pinion) transmission
    or
    1997-2005 and 2007 use 94-6671 (8-pinion) transmission

    76 downloads

    Updated

  5. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 103916 1978-1984 IPL.pdf

    Model 103916
    Illustrated parts list
    7 pages 319.92KB

    1-1/8" axle (Uses 2 105875 axles 13" long and 937108 Woodruff #22 keys - 1/4" x 1-3/8") [From 1980-81 Toro ipl some C-85 and C-105 models use 937097 Woodruff #15 key 1/4" x 1"]
    8 one-piece pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Uses long 937108 or #22 Woodruff key (1/4" x 1-3/8") in wheel/axle hub. Some places the key is 937128 and may be a typo

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Used 1978-1984
    1978 C-81 8-speed model 81-08K801
    1978 C-101 8-speed model 81-10K801
    1978 C-121 8-speed model 81-12K801
    1978 C-141 8-speed model 81-14K801
    1978 C-161 8-speed model 81-16K801
    1978 C-161 Twin 8-speed model 81-16B801

    1979 C-81 8-speed models 91-08K801, 91-08K802
    1979 C-101 8-speed models 91-10K801, 91-10K802
    1979 C-111 8-speed model 91-11B801
    1979 C-121 8-speed models 91-12K801 91-12K802
    1979 C-141 8-speed models 91-1kK801, 91-14K802
    1979 C-161 8-speed model 91-16K801 - Listed @ Toro as using model 5086
    1979 C-161 Twin 8-speed model 91-16B801 - Listed @ Toro as using model 5086
    1979 C-161 Twin 8-speed model 91-16B802 - Listed @ Toro as using model 5086

    1980 C-85 8-speed model 01-08K801 (This is incorrectly named a C-81 at Toro)
    1980 C-105 8-speed model 01-10K801
    1980 C-125 8-speed model 01-12K801
    1980 C-145 8-speed model 01-14K801
    1980 C-165 8-speed model 01-16K801
    1980 C-175 Twin 8-speed model 01-17K801

    1981 C-85 8-speed model 01-08K802 (This is incorrectly named a C-81 at Toro)
    1981 C-105 8-speed model 01-10K802
    1981 C-125 8-speed model 01-12K802
    1981 C-145 8-speed model 01-14K802
    1981 C-165 8-speed model 01-16K802
    1981 C-175 Twin 8-speed model 01-17K802

    1982 C-85 8-speed model 01-08K803
    1982 C-105 8-speed model 01-10K803
    1982 C-125 8-speed model 01-12K803
    1982 C-175 Twin 8-speed model 01-17K803

    1983 C-85 8-speed model 11-08K801
    1983 C-105 8-speed model 11-10K801
    1983 C-125 8-speed model 11-12K801
    1983 C-175 Twin 8-speed model 11-17K801

    1984 C-105 8-speed model 11-10K802 - Some used alternate inner axle bearing See PSB #369
    1984 C-125 8-speed model 11-12K802 - Some used alternate inner axle bearing See PSB #369
    1984 C-165 8-speed model 11-16K801 - Some used alternate inner axle bearing See PSB #369

    270 downloads

    Updated

  6. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 103918 1980-1983 IPL.pdf

    Model 103918
    IPL
    1-1/8" axle (Uses 2 105875 axles 13" long and 937108 Woodruff #22 keys - 1/4" x 1-3/8")
    8 one-piece pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    4 pages 358.32KB

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Used 1980-1983 in E-141 8-speed model 01-14E801

    49 downloads

    Updated

  7. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 103907 1976-1977 IPL.pdf

    Model 103907
    Illustrated parts list
    1-1/8" axles (Uses 2 105875 axles 13" long and 937108 Woodruff #22 keys - 1/4" x 1-3/8")
    8 one-piece pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    4 pages 819.83KB

    For transmission service manual see


    Used 1976-1977
    1976 B-80 8-speed model 61-08K803
    1976 B-100 8-speed model 61-10K803
    1976 C-120 8-speed model 61-12K803
    1976 C-160 8-speed model 61-16K803
    1977 B-60 8-speed model 71-07K801
    1977 B-80 8-speed model 71-08K801
    1977 B-100 8-speed model 71-10K801
    1977 C-120 8-speed model 71-12K801
    1977 C-160 8-speed model 71-16K801
    1977 C-160 8-speed model 71-16K802

    151 downloads

    Updated

  8. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 5091 1973-1976 IPL.pdf

    Model 5091
    Illustrated parts list
    1-1/8" axle (Uses 2 of 102764 axles 11-5/8" long and 937022 Woodruff #15 keys - 1/4" x 1") [937002 replaced by 937022 - May be a typo]
    8 one-piece pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    2 pages 428.91KB

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Used 1973-1976 in
    1973 12hp 8-speed model 1-0355
    1974 C-100 8-speed model 1-0390
    1974 C-120 8-speed model 1-0353
    1974 C-120 8-speed model 1-0354
    1974 C-120 8-speed model 1-0356
    1974 C-160 8-speed model 1-0380
    1974 C-160 8-speed model 1-0385
    1975 C-100 8-speed model 1-0391
    1975 C-120 8-speed model 1-0357
    1975 C-120 8-speed model 1-0375
    1975 C-120 8-speed model 1-0395
    1975 C-120 8-speed model 1-0396
    1975 C-160 8-speed model 1-0381
    1976 B-60 8-speed model 61-07K801
    1976 B-60 8-speed model 61-07K802
    1976 B-80 8-speed model 61-08K801
    1976 B-80 8-speed model 61-08K802
    1976 B-80 8-speed model 61-08K804
    1976 B-100 8-speed model 61-10K801
    1976 B-100 8-speed model 61-10K802
    1976 B-100 8-speed model 61-10K804
    1976 C-120 8-speed model 61-12K801
    1976 C-120 8-speed model 61-12K802
    1976 C-120 8-speed model 61-12K804
    1976 C-160 8-speed model 61-16K801
    1976 C-160 8-speed model 61-16K802
    1976 C-160 8-speed model 61-16K804

    160 downloads

    Updated

  9. Free

    Transmission Gear Uni-drive 3-speed 1.125in axle 2-pinion 5059 1966 IPL.pdf

    Model 5059
    IPL
    1-1/8" axles
    2 beveled pinion gear differential three-speed
    (This may be the 5047 ipl with the only difference being 1965-up models used the new shift rails)
    4 pages 644.53KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    This parts list shows the 933168 roll pin for the shifter donut 5/32" x 13/16"
    Replaced by 32121-114 spirol pin
    Model 5059 replaced 5045, 5047 and 5051
    Model 5059 may have only been available from parts for complete replacement
    5059 transmission fits the tractor models 953, 1054 and 1054A

    75 downloads

    Updated

  10. Free

    Transmission Gear Uni-drive 3-speed 1.125in axle 2-pinion 5051 1965 IPL.pdf

    Model 5051
    IPL
    1-1/8" axles
    2 beveled pinion gear differential three-speed
    (This may be the 5047 ipl with the only difference being 1965 models used the new shift rails)
    4 pages 644.53KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    This parts list shows the 933168 roll pin for the shifter donut 5/32" x 13/16"
    Replaced by 32121-114 spirol pin
    New shift rails in 1965

    Model 5051 replaces 5045 and 5047
    Model 5051 replaced by 5059 for 1966

    5051 transmission used in
    1965 model 1054A

    56 downloads

    Updated

  11. Free

    Transmission Gear Uni-drive 3-speed 1.125in axle 2-pinion 5047 1964 IPL.pdf

    Model 5047
    IPL
    1-1/8" axles
    2 beveled pinion gear differential three-speed
    1 page 133.54KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    This parts list shows the 933168 roll pin for the shifter donut 5/32" x 13/16"
    Replaced by 32121-114 spirol pin

    Model 5047 replaced 5045
    Model 5047 replaced by 5051 for 1965 and 5059 for 1966

    5047 transmission used in
    1964 model 1054

    64 downloads

    Updated

  12. Free

    Transmission Gear Uni-drive 3-speed 1.125in axle 2-pinion 5045 1963 IPL.pdf

    Model 5045
    IPL
    1-1/8" axles
    2 beveled pinion gear differential three-speed
    1 page 142.83KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    Model 5045 replaced by 5047 for 1964, 5051 for 1965 and 5059 for 1966

    5045 transmission used in
    1963 model 953

    65 downloads

    Updated

  13. Free

    Transmission Gear Uni-drive 4-speed 1.000in axle 4-pinion 5084 1974-1975 IPL.pdf

    Model 5084
    IPL
    1" axles
    4 one-piece pinion differential four-speed
    2 pages 428.63KB

    4-speeds have the brake drum mounted on the cluster gear shaft. Use Section IV of the service manual.

    5084 transmission used in
    1974 B-80 4-speed model 1-0140 This may be wrong
    1974 B-80 4-speed model 1-0140 as listed in transmission service manual #492-4004 uses 5080
    1974 B-80 4-speed model 1-0145

    1975 B-80 4-speed model 1-0141
    1975 Raider 10 4-speed model 1-0394

    77 downloads

    Updated

  14. Free

    Transmission Gear Uni-drive 4-speed 1.000in axle 4-pinion 5085 1972-1974 IPL.pdf

    Model 5085
    IPL
    1" axles
    4 one-piece pinion differential - first transmission to get them
    Four-speed
    2 pages 736.84KB

    4-speeds have the brake drum mounted on the cluster gear shaft. Use Section IV of the service manual.
    For low resolution transmission service manual see
    For high resolution transmission service manual see
    5085 transmission used in
    1972 Commando 800 4-Speed model 1-0110
    1973 8 hp 4-Speed model 1-0120
    1973 8 hp 4-Speed model 1-0130
    1974 Raider 10 4-speed model 1-0393 - Belgium built model
    1974 Raider 12 4-speed model 1-0352 - Belgium built model

    98 downloads

    Updated

  15. Free

    Transmission Gear Peerless 920-010 IPL SM.pdf

    Illustrated parts list
    11 pages 178.47KB

    Service manual 920-10
    7 pages 340KB

    1987 212-6 model 32-12K601
    1987 112-C Rear Engine Rider model C3-12K501
    1988 212-6 model 32-12K602

    173 downloads

    Updated

  16. Free

    Transmission Gear Peerless 915-020 IPL SM.pdf

    IPL
    11 pages 180.50KB

    Service manual
    7 pages 319KB

    1993 10-32XL Lawn Tractor model 71140 Serial 3900001-3999999
    1993 12-32XLe Lawn Tractor model 71200 Serial 3900001-3999999 - Export model
    1993 12-38XL Lawn Tractor model 71180 Serial 3900001-3999999
    1993 12-38XLe Lawn Tractor model 71202 Serial 3900001-3999999 - Export model
    1994 12-32XL model 71182 Serial 4900001-4999999
    1994 12-32XLe model 71200 Serial 4900001-4999999 - Export model
    1994 12-38XL model 71184 Serial 4900001-4999999
    1994 12-38XLe model 71202 Serial 4900001-4999999 - Export model
    1995 12-32XL model 71182 Serial 5910001-5999999
    1995 12-32XLe model 71200 Serial 5900001-5910000 - Export model
    1995 12-32XLe model 71200 Serial 5910001-5999999 - Export model
    1995 12-38XL model 71184 Serial 5900001-5910000
    1995 12-38XL model 71184 Serial 5910001-5999999
    1995 12-38XLe model 71202 Serial 5900001-5999999 - Export model
    1995 13-38XLe model 71205 Serial 59000001-59999999 - Serial may have 1 less digit - Export model
    1996 12-32XL model 71182 Serial 6900001-6999999
    1996 12-38XL model 71184 Serial 6900001-6999999
    Also used in Lawn Boy Lawn-Boy models 81140, 81180 and 81182

    159 downloads

    Updated

  17. Free

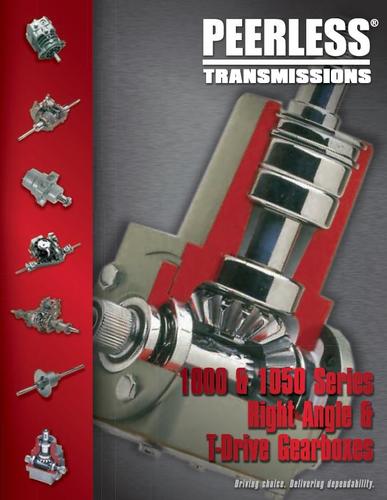

    Gearbox Angle & T Peerless Brochure.pdf

    1000 Series
    1000-014 Series
    1000-026 Series
    1050 Series
    1100 Series cast iron

    Use 80-90 gear oil

    2 pages 1.3MB

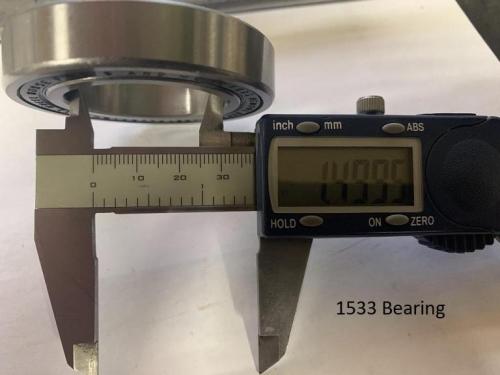

    780024 bearing .7495" ID
    780034 bearing .8745" ID (May be a R14N - 7/8" ID x 1-3/4" OD x 3/8" wide)
    780174 bearing .9838" ID

    73 downloads

    Updated

  18. Free

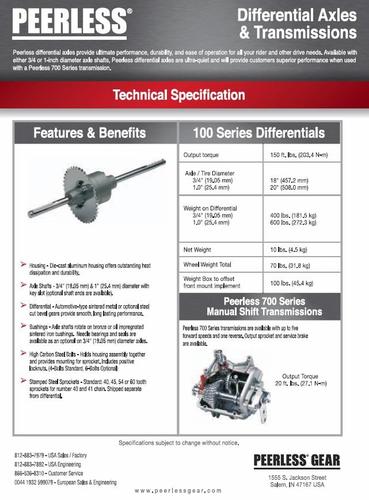

    Differential Peerless Brochure.pdf

    Sales brochure
    2 pages 1.2Mb

    45 downloads

    Updated

  19. Free

    Transmission Gear Peerless 669 IPL SM.pdf

    IPL
    15 pages 197.24KB

    Service manual
    9 pages 191KB

    Shifter and bearings
    6 pages 221KB

    1978 B-81 4-Speed model 82-08BP01
    1978 B-111 4-Speed model 82-11BP01
    1979 B-111 4-Speed model 92-11BP01

    212 downloads

    Updated

  20. Free

    Transmission Gear Peerless 662 IPL SM.pdf

    IPL
    15 pages 194.37KB

    Service manual
    9 pages 191KB

    Shifter and bearings
    6 pages 221KB

    Vertical input shaft Gear 3-speed 1977

    Wheel Horse 106059 4-speed Peerless 662 transmission with disc brake
    1977 A-90 36" 4-Speed Rear Engine Rider model 72-08BP01
    1977 A-100 36" 4-Speed Rear Engine Rider model 72-10BP01

    188 downloads

    Updated

  21. Free

    Transmission Gear Peerless 648 IPL SM.pdf

    IPL
    16 pages 194.37KB

    Service manual
    9 pages 191KB

    Shifter and bearings
    6 pages 221KB

    Model 648 used in the following models
    1974 A-800 Ranger model 1-0280
    1974 A-800 Ranger model 1-0285
    1975 A-80 Ranger (E)model 1-0281
    1975 A-80 Ranger (E) model 1-0282
    1975 A-80 Ranger (R model 1-0286
    1975 A-80 Ranger ® model 1-0287
    1976 A-90 36" 4-Speed Rear Engine Rider model 62-08BP01
    1976 A-100 36" 4-Speed Rear Engine Rider model 62-10BP01

    205 downloads

    Updated

  22. Free

    Transmission Gear Peerless 635 IPL SM.pdf

    IPL
    15 pages 193.94KB

    Service manual
    9 pages 191KB

    Shifter and bearings
    6 pages 221KB

    1973 Ranger 700 model 2-0220
    1973 Ranger 800 model 2-0230

    44 downloads

    Updated

  23. Free

    Transmission Gear Peerless 617 IPL SM.pdf

    IPL
    13 pages 190.70KB

    Service manual
    9 pages 191KB

    Shifter and bearings
    6 pages 221KB

    Wheel Horse part # 5072

    1969 Lawn Ranger model 1-1641 - Model year a guess - made in Belgium and found in UK - Transmission used unknown
    1969 Lawn Ranger model 1-8741
    1969 Lawn Ranger model 1-8745
    1970 Lawn Ranger model 1-8751 - 7hp - ES @ Toro
    1970 Lawn Ranger model 1-8752 - 8hp - ES @ Toro
    1970 Lawn Ranger model 1-8755 - 8hp - ES @ Toro
    1970 Lawn Ranger model 1-8756 - 8hp - ES @ Toro
    1971 Lawn Ranger model 2-0200 - 7hp in PSB #414
    1971 Lawn Ranger model 2-0210 - 7hp in PSB #414
    1972 Lawn Ranger model 2-0200 - not listed @ Toro - Transmission used unknown
    1972 Ranger 800 model 2-0211 - 8hp in PSB #414

    75 downloads

    Updated

  24. Free

    Transmission Gear Peerless 601-001 IPL SM.pdf

    IPL
    15 pages 178.70KB

    Service manual
    9 pages 191KB

    Shifter and bearings
    6 pages 221KB

    1980 B-82 3-Speed model 02-08BP01
    1980 B-112 3-Speed model 02-11BX01

    1981 B-82 3-Speed model 02-08BP02
    1981 B-82 3-Speed model 02-08BP03
    1981 B-112 3-Speed model 02-11BX02
    1981 B-112 3-Speed model 02-11BX03

    1982 LT-832 3-Speed model A2-083201
    1982 LT-1032 3-Speed model A2-103201
    1982 SB-371 3-Speed model 02-11BH01

    1983 LT- 832 3-Speed model A2-083202
    1983 LT-1136 3-Speed model D2-113601
    1983 LT-1137 3-Speed model D2-113701 - Named a LT-1136 @ Toro
    1983 LT-1637 Twin 3-Speed model D2-163701

    206 downloads

    Updated

  25. Free

    Transmission Gear Peerless 930-020 IPL SM.pdf

    IPL
    11 pages 155.06KB

    Service manual
    7 pages 340KB

    1991 210-5 model 32-10B502 Serial 1000001-1999999
    1991 212-5 model 32-12B5A3 Serial 1000001-1999999
    1991 212-5 model 32-12O502 Serial 1000001-1999999
    1991 212-5e model R2-12O501 Serial 1000001-1999999
    1991 212-5SBe model S2-12B502 Serial 1000001-1999999
    1992 210-5 model 32-10B503 Serial 2000001-2999999
    1992 212-5 model 32-12O503 Serial 2000001-2999999
    1992 212-5e model R2-12O502 Serial 2000001-2999999

    86 downloads

    Updated




×
×
  • Create New...
