Tractor 1989 616-Z D&A TIPL SN.pdf

Sign in to follow this

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
41 pages 3.21MB

Includes Onan P216V-I/10873A ipl

Original operator manual #810613R1
Original IPL #810673R1

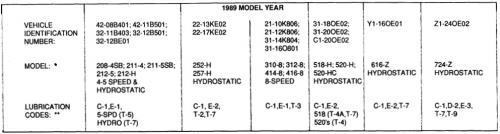

Lube chart SS


Details & Attachments
2 pages 106.74KB



Transmission drive belt 116527 - (HA x 43.25" or 1/2" x 43.25")

1989 616-Z model Y1-16OE01

1989 serial numbers that have shown up for the Y1-16OE01
0025689
0025862
0025987 - Build date 1989 9104 April 14 Friday

Links

For engine service manual see

For transmission service manual see




×
