Tractor 1989 414-8 D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL from Toro Master Parts Viewer
45 pages 3.82MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

On the Belgium list
Includes correct transmission IPL



Magneto ignition

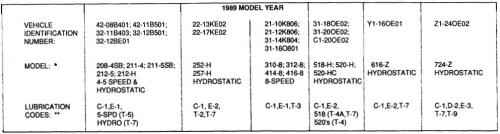

Lube chart SS



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"  - Listed as a 314-8 in belt chart


Details & Attachments
3 pages 119.06KB

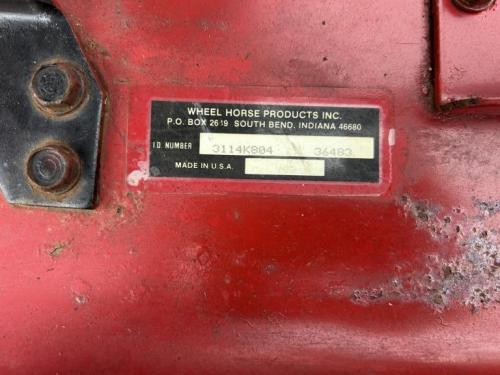

1989 414-8 model 31-14K804

1989 serial numbers that have shown up for the 31-14K804

0035011
0035054

0035306

0035323 - Build date 1989 9257 September 14 Thursday looks wrong and should be 8257 ?

0035379

0035399 - Build date 1989 9258 September 15 Thursday looks wrong and should be 8258 ?
0035673

0035676 - Build date 1988 8292 October 18 Tuesday

0035747 to 35782 used a substitute low oil relay. See PSB #447

0035908

0036215

0037181

0037222 - Added 02-15-2019
0037443 - Serial 9937443 posted - Model and year a guess

Kohler IPL from Toro Master Parts Viewer for M14S-601540
25 pages 1.88MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

Original tractor OM #810569R1
Original tractor IPL #810607R1

Links

For tractor operator manual see

For engine service manual see

For transmission service manual see




×
×
