About This File
IPL from Toro Master Parts Viewer
39 pages 2.66MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes IPL for 42" SD mower deck model 05-42SB01
Muffler supplied by Briggs & Stratton
Tractor drive belt 108427 - (HA/4L x 88" or 1/2" x 88")
Mower drive belt 106523 replaced by 110141 (1/2" x 41")
Mower spindle belt 106516 (1/2" x 83")

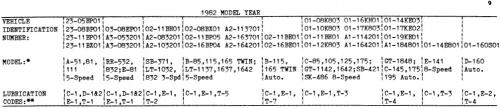

Lube chart SS
Details & Attachments
3 pages 116.04KB
1982 LT-1642 Twin 5-Speed model A2-164201
Original operator manual #810248R1
Original IPL #810285R1
Mower operator manual #810277R1
Links
For engine operator manual and IPL see
For 801-002 Peerless transmission IPL see
For Electrical service manual see
