Installing mower deck on charger 12

[Aaron Hero 1]

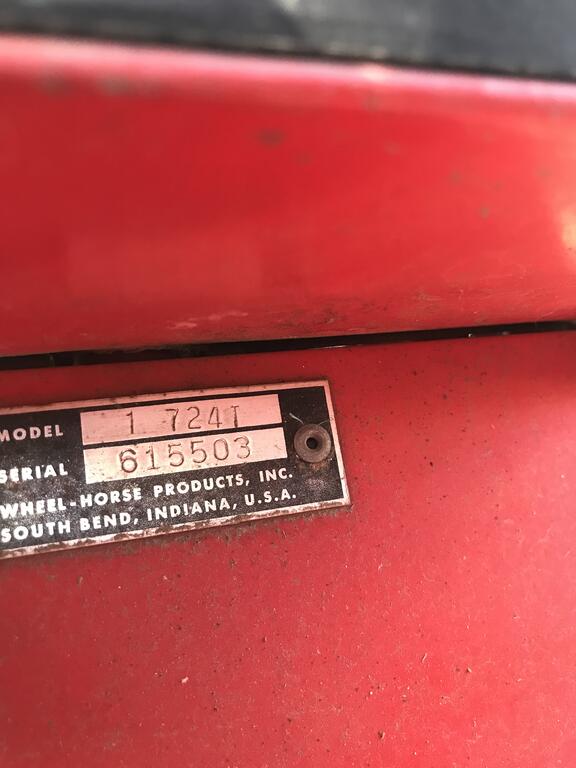

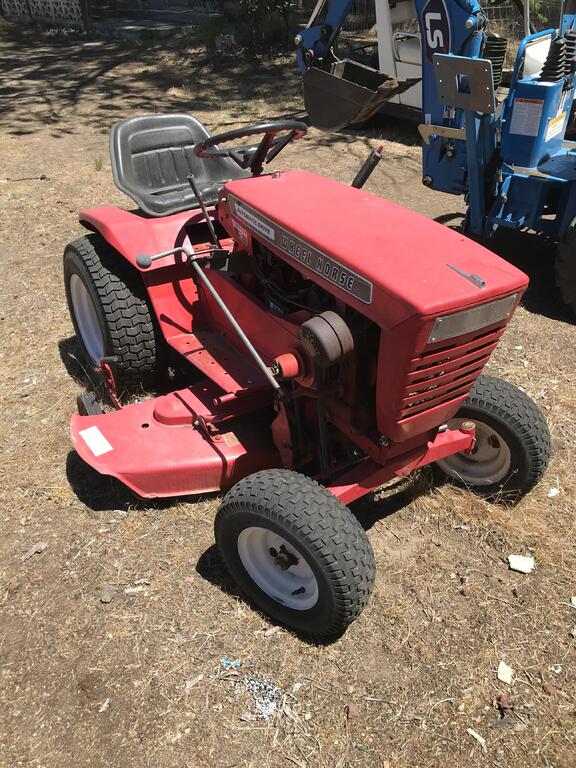

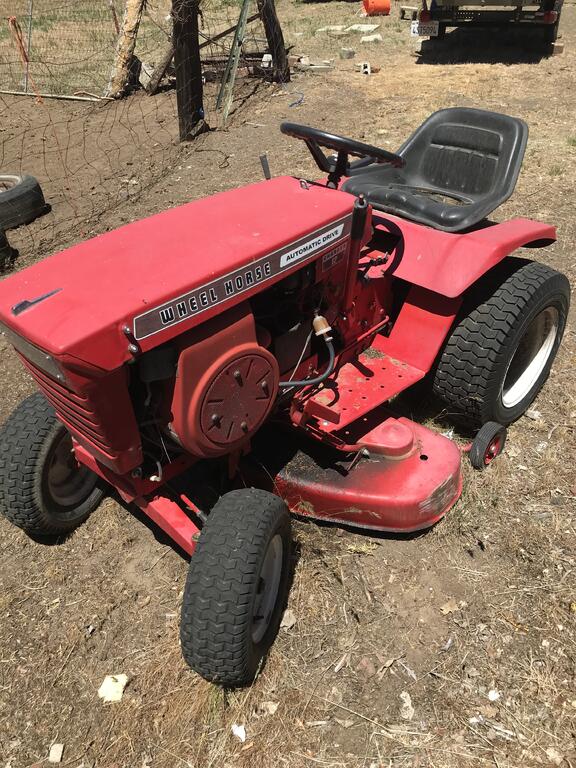

I recently got a wheel horse Charger 12, for some reason I can’t get the mower deck to lift in the rear. The front pin on each side locks in place bet when I pull the lift lever back it won’t lock into the detent. There are two steel plates with 3/8” holes in the lower ends dangling about the center of the deck, look like they should be attached to something, not sure if they attach to deck or another implement. I’ve looked up serial and model number but no luck, not sure if it’s even a charger 12, just going by appearance. I’ve included a few pics if it helps! Thanks!

[gwest_ca-(File Mod) 11,328]

Welcome to Red Square.

Here is a manual on your tractor. Click on the picture in the link for more

Guessing this is the mower deck

Garry

[Maxwell-8 4,367]

13 minutes ago, Aaron Hero said:

back it won’t lock into the detent

on



Maybe, the little button on top of the handle is stuck, try and pull it up.

Happend to me as well.

Edited May 25, 2021 by Maxwell-8

[WHX?? 51,116]

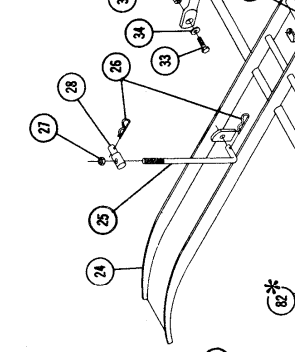

Guess I don't understand what you mean about the steel plates dangling. The should be a part 25 hanging off the rock shaft or on the deck. It should have a trunnion part 28 threaded on one end. The goes up to the rockshaft and what lifts the deck. Complete instructions in the manual Garry provided. Very possible a PO lost the rod and came up with something homemade.

Edited May 25, 2021 by WHX24

[Handy Don 13,522]

It is also possible to adjust the trunnion, if it's there, to try to lift the deck too high. Then the deck frame stops hit the tractor frame under the footrests before the lift arm can reach the detents.

[WHX?? 51,116]

11 minutes ago, Handy Don said:

It is also possible to adjust the trunnion, if it's there, to try to lift the deck too high. Then the deck frame stops hit the tractor frame under the footrests before the lift arm can reach the detents.

Yep forgot about that... been a long time since I mowed with the early decks!

[Aaron Hero 1]

Thanks guys! This will help a lot!

[Rfp55 33]
