Time to build a new trail bomber

[Greentored 3,201]

13 hours ago, ebinmaine said:





On this idler did you massage/modify the surface in any way or is it just from the belt riding on the flat?









I ask because on the Mackissic chipper I've been having difficulty finding a happy spot for the idler and finally determined that the flat surface is actually bowed out a hair.

New pulley is on order....





GOOD LUCK!!!!!



I did cut a small 'step' in the lower and upper flat idlers, and it did absolutely nothing to help 'coax' the belt to ride center.  The lower is close enough to the trans pulley that it rides perfect, but the upper being a good foot from the engine pulley, no matter what I did it would not ride correctly- I even cut a 2 degree taper on the surface, and it still rode to the outside and rubbed the guide!  I ended up cutting about a 2 degree 'angle' on the mounting spacer and turned it a little at at time while running (VERY carefully, using a long screwdriver!) until the belt rode in center.

[ebinmaine 63,555]

30 minutes ago, Greentored said:



I did cut a small 'step' in the lower and upper flat idlers, and it did absolutely nothing to help 'coax' the belt to ride center.  The lower is close enough to the trans pulley that it rides perfect, but the upper being a good foot from the engine pulley, no matter what I did it would not ride correctly- I even cut a 2 degree taper on the surface, and it still rode to the outside and rubbed the guide!  I ended up cutting about a 2 degree 'angle' on the mounting spacer and turned it a little at at time while running (VERY carefully, using a long screwdriver!) until the belt rode in center.

That's a similar procedure to what I tried except for using a crescent wrench because the pulley rides on kind of a tab. I messed around with it several times while it was running at both low and high idle. Behavior was slightly different but still unacceptable.

I got to some kind of a different angle while looking at it one day and I noticed that the surface of the supposedly flat pulling actually concave out just a tiny bit.

[Zeek 2,284]

On 8/3/2021 at 7:55 AM, 19richie66 said:

I think it’s cool. Honestly…..it’s getting used for something and not rotting away in someone’s backyard or being stripped and put on ebay. Congratulations and I can’t wait to see how you do.

I restored almost all I had, but that's me for what my purposes were. There are plenty that are sitting in outdoor bone yards rusting away. You made good use of yours. Some get restored, some cut grass, some plow and some off-road!If I could get away with going to a bar on a tractor, I probably would too

Edited August 4, 2021 by Zeek

[Greentored 3,201]

On 8/4/2021 at 8:02 AM, Zeek said:

I restored almost all I had, but that's me for what my purposes were. There are plenty that are sitting in outdoor bone yards rusting away. You made good use of yours. Some get restored, some cut grass, some plow and some off-road!If I could get away with going to a bar on a tractor, I probably would too

done that- 2 miles each way haha.

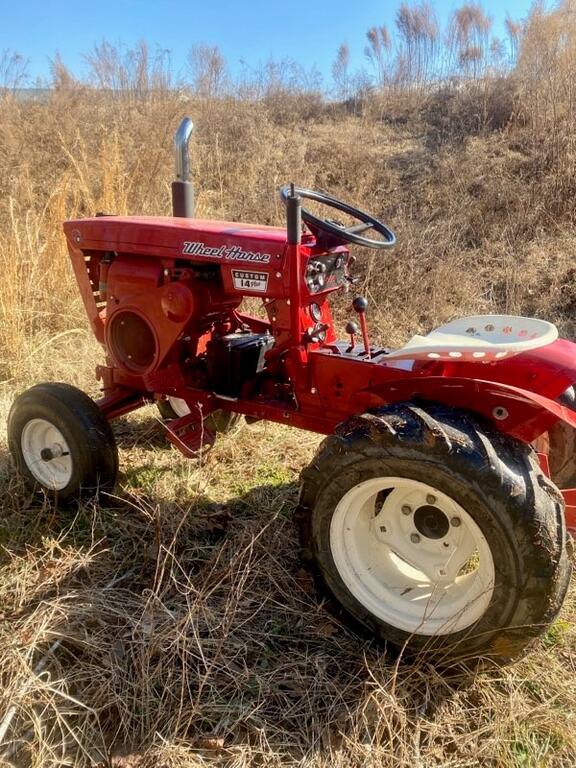

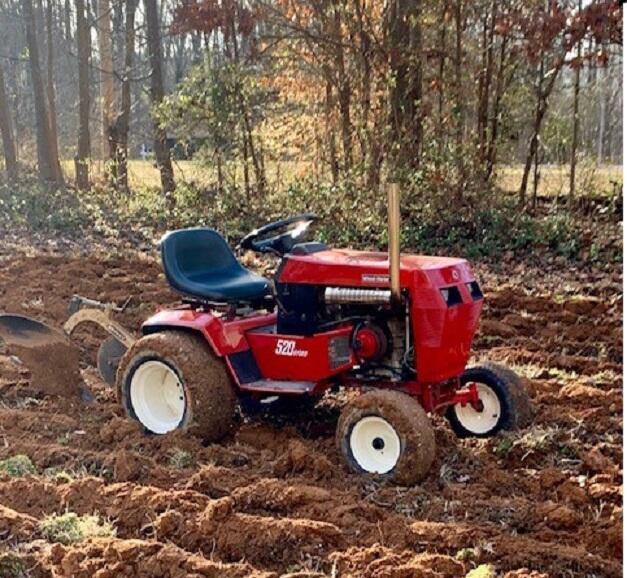

Just to make you guys feel better, I have restored a couple and made em pretty too.

[19richie66 17,004]

Scotty, have any close up pics of your throttle pedal? Looking for ideas for the diesel. Thanks!

[kpinnc 11,005]

That "Hoss" is sweet!

[Greentored 3,201]

17 hours ago, 19richie66 said:

Scotty, have any close up pics of your throttle pedal? Looking for ideas for the diesel. Thanks!

Ill take a couple and post em up this weekend

[Pullstart 60,202]

Scott,

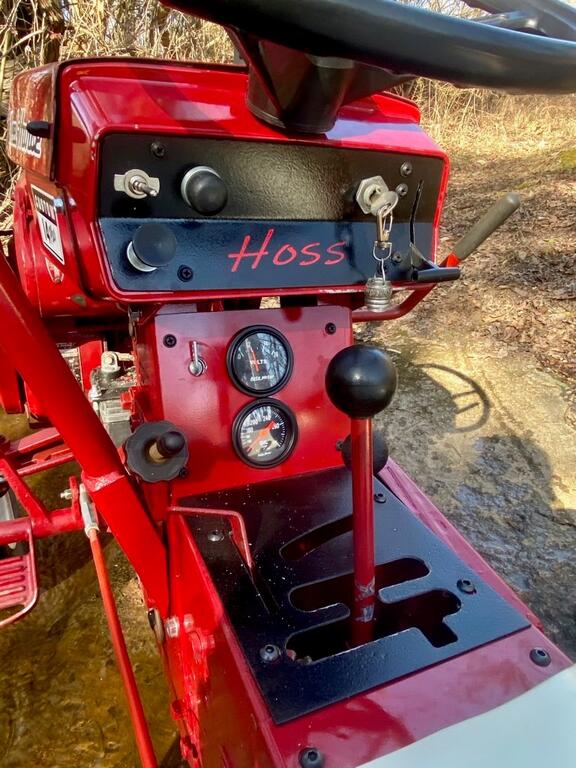

what’s the little back tab opening on Hoss’ shift plate?





[Lee1977 6,309]

9 hours ago, pullstart said:

Scott,



what’s the little back tab opening on Hoss’ shift plate?





It shows up on the drawings for B-80 and C-Series 8 Speeds on 74 and 75 models. I'm guessing a low gear lock in tab, don't know why. What ever the purpose they must have changed there minds

[ebinmaine 63,555]

13 hours ago, pullstart said:

little back tab opening



4 hours ago, Lee1977 said:

It shows up on the drawings for B-80 and C-Series 8 Speeds on 74 and 75 models. I'm guessing a low gear lock in tab, don't know why. What ever the purpose they must have changed there minds





That's where the seat pan lock lever is.

[Pullstart 60,202]

3 hours ago, ebinmaine said:







That's where the seat pan lock lever is.





Aaaahhhhh… funny.  I am not used to the later models enough to even notice it!

[Greentored 3,201]

On 8/7/2021 at 4:09 AM, ebinmaine said:







That's where the seat pan lock lever is.

Thanks!  I truly had no idea myself haha.

[Greentored 3,201]

Been awhile fellas, its been a crazy summer at work and play.

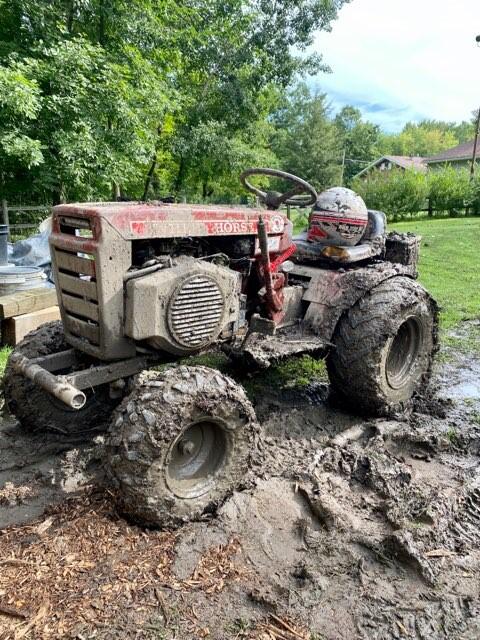

Update:  I ran the Top Tractor Challenge- it was insane!  Some real gnarly obstacles this year.  12 competitors, 6 courses. I threw a belt on the first course and took a DNF. After course #2 the starter got packed with slop and it wouldnt fire for course 3, another DNF. I took that time to clean the starter and adjust the belt guide and both worked the rest of the day. Course 4 I completely missed an obstacle and got DQ'd.  The last 3 courses the B-1 and I were dialed in and did very well, netting me an 8th overall, even with 3 incomplete scores!

Aside from the initial belt issue and a muddy starter, the B-1 was flawless, and I wrung it out for all it had- certainly much harder than I ever do on trail cruises. Again, a testament to just how well these Horses were built!

I cannot post videos or finishing placement until our host compiles them into one, but I can tell you a Wheel Horse won the competition, by a long shot!

Yep, some frown on doing this to an original WH, but it is providing a ton of fun instead of sitting in a field rusting away......



Edited September 1, 2021 by Greentored

[Pullstart 60,202]

YEE HAW RIDE ‘EM COWBOY!

[slim67 2,734]

On 8/4/2021 at 8:02 AM, Zeek said:

I restored almost all I had, but that's me for what my purposes were. There are plenty that are sitting in outdoor bone yards rusting away. You made good use of yours. Some get restored, some cut grass, some plow and some off-road!If I could get away with going to a bar on a tractor, I probably would too



On 8/4/2021 at 8:02 AM, Zeek said:

I restored almost all I had, but that's me for what my purposes were. There are plenty that are sitting in outdoor bone yards rusting away. You made good use of yours. Some get restored, some cut grass, some plow and some off-road!If I could get away with going to a bar on a tractor, I probably would too

Just make sure your blood alcohol content is under the legal limit and you’ll be fine👍

[Pullstart 60,202]

43 minutes ago, slim67 said:



Just make sure your blood alcohol content is under the legal limit and you’ll be fine👍

Mine must be higher than it should be… I’m seeing double quotes!

[Greentored 3,201]

1 hour ago, pullstart said:

Mine must be higher than it should be… I’m seeing double quotes!

I stayed under the legal limit for the competition, but certainly not a .00 haha. He let some of us go play on the course the next day, I was stone cold sober due to needing to drive 8hrs that afternoon.

.....Aside from climbing the mulch pile (which was pretty mild), I was literally afraid to attempt any of the obstacles I had just crushed the day before

[Greentored 3,201]

On 8/5/2021 at 11:38 AM, 19richie66 said:

Scotty, have any close up pics of your throttle pedal? Looking for ideas for the diesel. Thanks!

I didnt forget ya buddy. Hang tight!

[19richie66 17,004]

23 minutes ago, Greentored said:

I didnt forget ya buddy. Hang tight!

Oh I’m in no hurry. May be selling it and another anyways.

Edited September 1, 2021 by 19richie66

[slim67 2,734]

2 hours ago, pullstart said:

Mine must be higher than it should be… I’m seeing double quotes!

That’s a test ! How many quotes am I showing? License and registration please.

[slim67 2,734]

1 hour ago, Greentored said:

I stayed under the legal limit for the competition, but certainly not a .00 haha. He let some of us go play on the course the next day, I was stone cold sober due to needing to drive 8hrs that afternoon.

.....Aside from climbing the mulch pile (which was pretty mild), I was literally afraid to attempt any of the obstacles I had just crushed the day before

I don’t drink but a famous cartoon character named Homer Simpson said “ alcohol, the cause and solution to life’s problems “ !

[Pullstart 60,202]

1 hour ago, slim67 said:

I don’t drink but a famous cartoon character named Homer Simpson said “ alcohol, the cause and solution to life’s problems “ !



He also said… “Mmmmmmm donuts (or was it beer?).  My one weakness.”  Or something like that!

[slim67 2,734]

9 minutes ago, pullstart said:



He also said… “Mmmmmmm donuts (or was it beer?).  My one weakness.”  Or something like that!

Donuts are mine😀

[Gregor 4,838]

On 3/1/2021 at 10:12 AM, Greentored said:





You don't have to be crazy to do this, but it helps.

[tom2p 2,393]

13 hours ago, Greentored said:

Thanks!  I truly had no idea myself haha.

hmmm ... thought you installed line locks to do some smokey burnouts
