meadowfield

Adding a gas/fuel gauge

Recommended Posts


Blackhood Bill

@meadowfield that’s very cool. Would like to see more pictures with wiring connected. I think that would be worth a try on a 300/400/500 series. I’m slowly in process of redoing a gt1848 and may just try that.

Share this post


Link to post
Share on other sites

Stormin
Posted (edited)

 Neat, Mark. May just do that. Only got one decent cap gauge between three tractors and a stick for the Sears/Roper.



 Where did you find them?

Edited by Stormin

Share this post


Link to post
Share on other sites

meadowfield
24 minutes ago, Stormin said:

 Neat, Mark. May just do that. Only got one decent cap gauge between three tractors and a stick for the Sears/Roper.



 Where did you find them?


ebay for gauge, £12.99 from the UK

  • Thanks 1

Share this post


Link to post
Share on other sites

pfrederi

 Do they have some sort of dampener for the gauge?  Bouncing around on a rough lawn that gas is sloshing a lot in the tank

  • Like 1

Share this post


Link to post
Share on other sites

Stormin

  Be no different to any vehicle driving off road. Just look when your on flat, level ground. :D

  • Like 2
  • Haha 1

Share this post


Link to post
Share on other sites

cleat

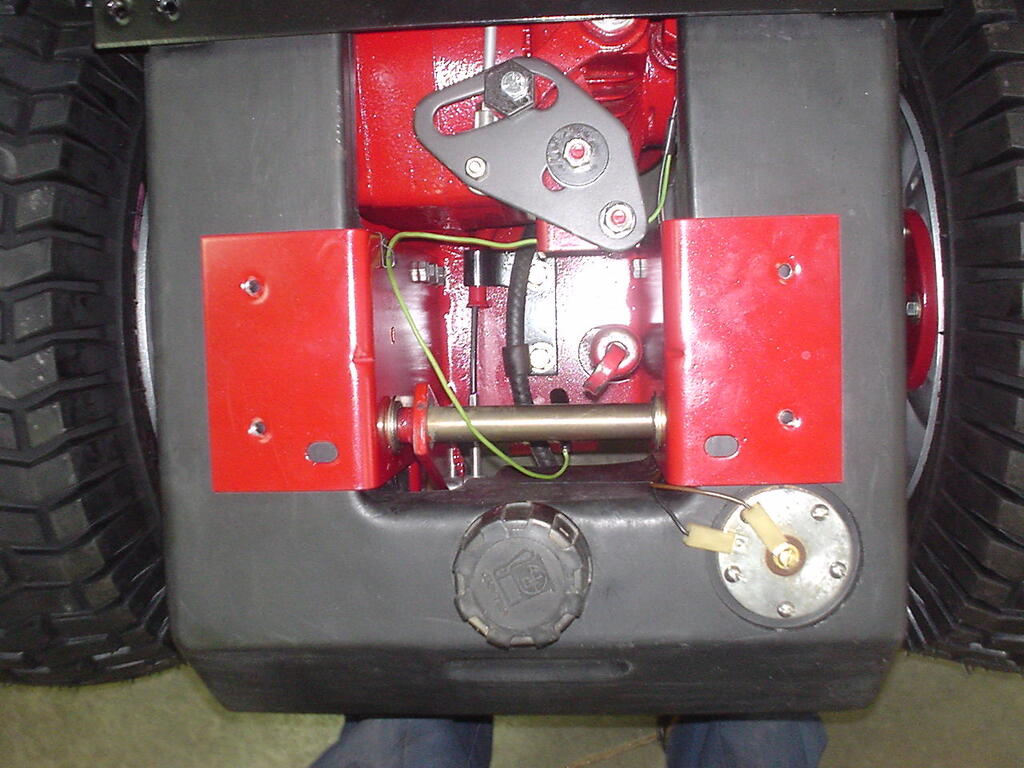

This is a pic of a factory sender unit installed in a 520. I also just put a 520 tank and gauge into a 312.






I wonder if your sender unit has the same resistance values for full VS empty because these 520 senders are getting hard to find in good working order but the fuel tanks themselves are plentiful.



I also wonder if the mounting hole and screw holes are the same.



One more thing, some of my 520's have damped fuel gauges and some don't so they come both ways (must be dependent on year I guess).



I look at my fuel gauge all the time and that is why I added one to my 312. It is a useful upgrade.



  • Thanks 1

Share this post


Link to post
Share on other sites

1995 520H+96+97

I used this one the 1995 520H. It was already clocked correctly, screw holes lined up, Reused original screws. Had to cut off 4" of float arm. Ground off the positive terminal so it wouldn't touch the fender pan. :wh:






  • Like 1

Share this post


Link to post
Share on other sites

cleat

I see most universal sending units are 240 ohms empty and 33 ohms full.



I will need to verify that this is what the SW fuel gauges in my 520's want as well.



I don't need a sender right now but it is good to know there is an aftermarket source available.



Thanks, Cleat

  • Like 1

Share this post


Link to post
Share on other sites

cleat

 I just went out and tried to get measurements of my spare somewhat flaky sender units.

What I came up with is around 270 ohms empty and 35 ohms full.



I also took some pictures of a unit and measured it as well.














  • Like 1

Share this post


Link to post
Share on other sites

meadowfield
6 hours ago, cleat said:

This is a pic of a factory sender unit installed in a 520. I also just put a 520 tank and gauge into a 312.






I wonder if your sender unit has the same resistance values for full VS empty because these 520 senders are getting hard to find in good working order but the fuel tanks themselves are plentiful.



I also wonder if the mounting hole and screw holes are the same.



One more thing, some of my 520's have damped fuel gauges and some don't so they come both ways (must be dependent on year I guess).



I look at my fuel gauge all the time and that is why I added one to my 312. It is a useful upgrade.





wow!  how cool is that - I never saw how it was done on a 520, but wanted similar!  seems theres really only way of doing it!  :D



Share this post


Link to post
Share on other sites

BrianX128

I ordered one of these this week as I want to try this on one of my C series mowers, how difficult is it to get the metal off to access the tank is it just the seat and some bolts under there or is the foot rest area and belt guards bolted to everything also? I can't remember.

Share this post


Link to post
Share on other sites

BrianX128

Just did mine, works great. Just gotta find my tool I used to cut holes in the plate by my voltage / rpm gauges where you have your plate on my C141, though I better get one for my wife's mower too lol..




Share this post


Link to post
Share on other sites

BrianX128



That's better! Only issue I ran into was the seal for the sending unit doesn't really seal. The bolt holes will weep when the tank is full. I jb welded the entire top of the sender from the sender wire outside to the plastic of the tank and its leak free.



Not sure where I'll put the gauge on the wifes mower since it's a 417a and has the hour meter and volt meter already.

Share this post


Link to post
Share on other sites
