bugkiller82 1 #1 Posted June 10, 2020 The wires behind the gas tank melted together. The green and orange. I have only had this tractor for about 2 months. The ammeter has never worked. Removing the green from the ammeter tractor will not start no power. Maybe someone had wired this up or something. I am want to fix this. I mean I have been using it to mow, and had no issues. I haven't put a meter to anything yet. I would just like some thoughts on the issue and where to head and what I should replace and where to find the parts. Thank you all for any help and shared knowledge. Loving this Wheel Horse, it's my first. Again thanks for the forum. Share this post Link to post Share on other sites
ZXT 2,401 #2 Posted June 10, 2020 Hey there! Welcome to the forum! You say the green wire attaches to the ammeter. Where does the orange wire run to? If it runs to the other side of the ammeter, you can simply connect the orange and green together and bypass the ammeter completely. They're nothing but firehazards. I'm sure Garry will be along before too long to post a wiring diagram. 1 Share this post Link to post Share on other sites
ebinmaine 71,928 #3 Posted June 10, 2020 The wiring in the B series is very simple so you'll figure it out. If you could post a few pics it might help us see what you're dealing with. Please keep the ammeter OUT of the circuit. As Jonah mentioned above they can cause problems and yours is already out. I'm not sure what wires are what color. Study the appropriate schematic and rely on your testing because someone may have changed things in the past. I've rewired several 60s and 70s tractors and I now have the habit of completely removing the existing birds nest and starting over fresh. There's a thread that explains a few different schematics. Here's a link: 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,393 #4 Posted June 10, 2020 There is a diagram here for the Automatic model and suspect it will be identical to the 4-speed if there was such a model. Likely was a C-100 4-speed. Click on the picture to see it. Garry Share this post Link to post Share on other sites

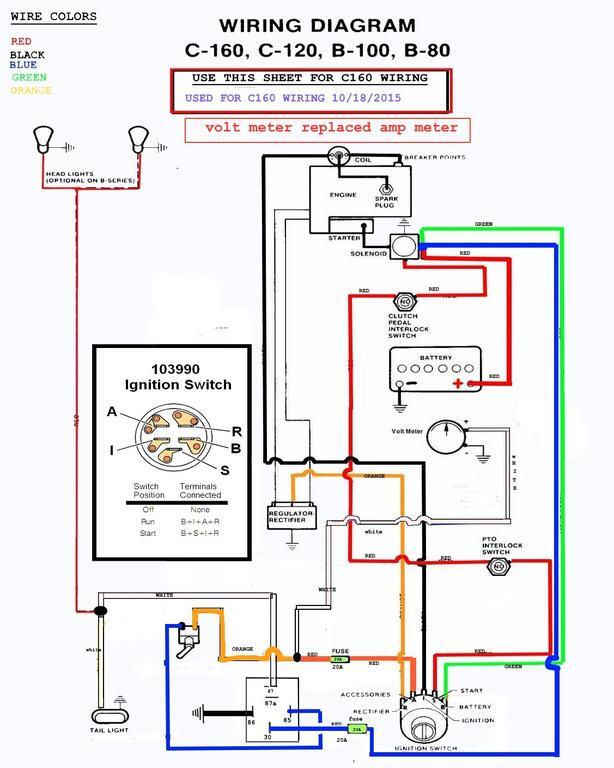

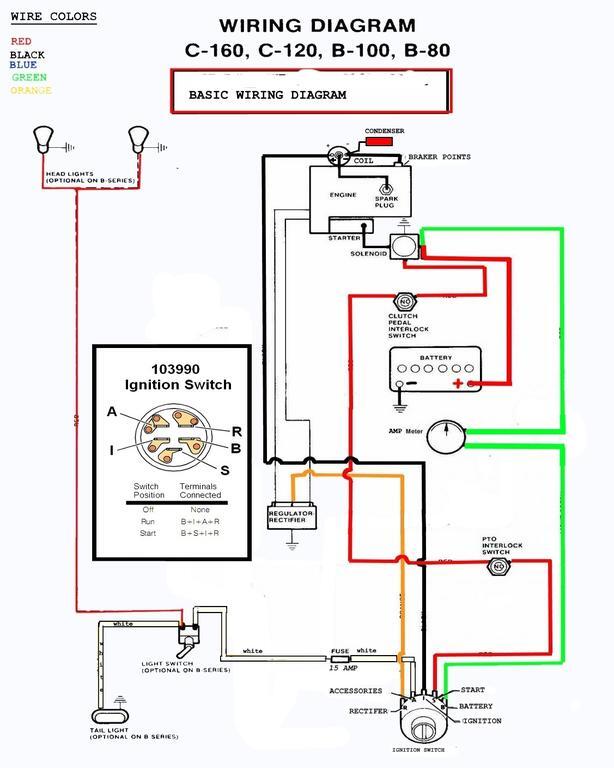

953 nut 59,337 #6 Posted June 10, 2020 Here are a couple color coded drawings by @BOB ELLISON, one with an amp meter and one with the amp meter replaced by a volt meter. Share this post Link to post Share on other sites
bugkiller82 1 #7 Posted June 10, 2020 I will do all the above. Thank you all very much for all the information and systematics. Will get it up and running soon and post photos. Again thank you all very much.. 1 Share this post Link to post Share on other sites
