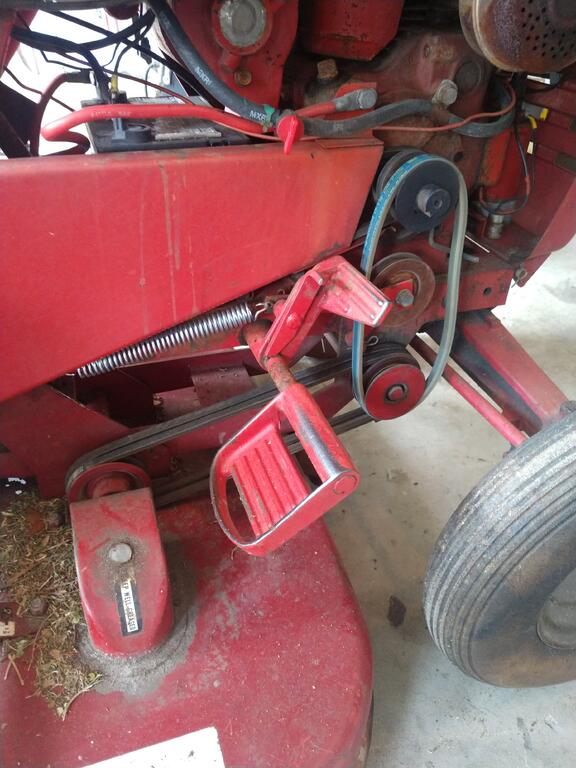

Old 867 5 #1 Posted May 15, 2020 Long story short , I recently got an 867 and got her running , deck on it and working using tractor supply . Cuts great but have to make sure the battery is fully charged before I start. I've looked quick at her , noticed a positive ground ( I thought they were neg grnd) but what I need is a wiring diagram. 1 Share this post Link to post Share on other sites
pfrederi 18,566 #2 Posted May 15, 2020 Manual and wiring diagram for your tractor here. Welcom Should be negative ground but who know who changed what over 50 years. 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,393 #3 Posted May 15, 2020 Welcome to the forum. This Kohler manual has a good section on the starter/generator. Click on the picture to see what section to download. Garry 1 Share this post Link to post Share on other sites
Old 867 5 #4 Posted May 15, 2020 Thank you , and I also thought negative ground. To be honest if I have to rewire her I def will. Share this post Link to post Share on other sites
Old 867 5 #5 Posted May 15, 2020 Thank you for the Kohler manuals. Time to download and print. Next issue will be parts if and when that comes Share this post Link to post Share on other sites

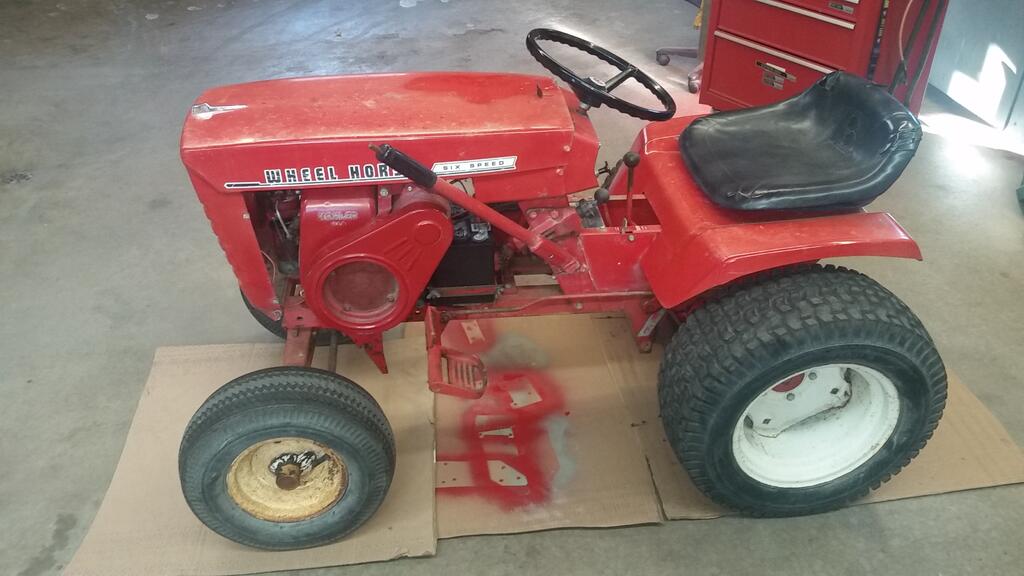

WHX?? 51,426 #6 Posted May 15, 2020 Nice looking tractor and one of my favorites ...appears to be all original Parts will be no problem & let us know if you need help finding them. Most like the regulator but check your battery condition and all connections and grounds. My 867 Share this post Link to post Share on other sites
Old 867 5 #7 Posted May 15, 2020 Appreciate it . She is all original , except deck drive belt and pedal spring( tractor supply) . My girlfriend rolled her eyes when I brought her home lol until I mowed the lawn. Honestly I'd rather put some money into 50yrs old rather than buying new with quality not being what it was ( my opinion ) . Also , I guess u can take the boy out of Pennsylvania but u can't take Pennsylvania out of the boy 2 Share this post Link to post Share on other sites
pfrederi 18,566 #8 Posted May 15, 2020 The positve ground maybe the issue issue for your charging system. You can test your regulator. Hook up your multimeter to the battery. 12.6 is fully charged. Running voltage should be higher maybe 14. If not run a jumper wire from the F terminal of the regulator to a good ground. You should hear the engine work a bit harder and Voltage should go up. 2 Share this post Link to post Share on other sites
Old 867 5 #9 Posted May 15, 2020 I will definitely test the regulator and follow the diagrams that I've downloaded to see how it should be wired Share this post Link to post Share on other sites
Achto 29,253 #10 Posted May 15, 2020 Nice looking tractor!! Sounds like you're on the right track. Definitely switch back to Neg ground. Share this post Link to post Share on other sites
pfrederi 18,566 #11 Posted May 15, 2020 (edited) When you go back to negative ground make sure you reverse the wires on the coil. (assuming who ever did the switch to POS did it correctly.) Couple of my old farm tractors are POS ground and I have messed that up before. You S/G will polarize it self the frost time you try to crank it.... Edited May 15, 2020 by pfrederi Share this post Link to post Share on other sites
kasey54 305 #12 Posted May 15, 2020 953 Nut has posted very helpful diagrams pertaining to this topic.They can be found in the Instructional threads and videos section. 3rd post. Share this post Link to post Share on other sites
Old 867 5 #13 Posted May 15, 2020 Can't say thank you enough guys. Tomorrow morning I'll dig into her and see what I find . I'll keep everyone posted on what I find Share this post Link to post Share on other sites
WHX?? 51,426 #14 Posted May 15, 2020 Ok stupid ? here fellas... why would someone switch it around?? Hold the bus her ... Dan remember a certain 520 we scored once?? He just wouldn't have the battery in backwards??? Share this post Link to post Share on other sites
Old 867 5 #15 Posted May 17, 2020 First , I should have introduced myself I'm Chip and thanks guys for the help and access to manuals. I would have updated sooner but the boss always has a list for the weekends . I printed the wiring diagram and traced the system. Fortunately it was just as simple as the guy before hooked up the battery backwards . I switched the cables and ran her for about 5 min and got to 13v . I'll charge the battery separately and I'll recheck the charging system as I run her 2 Share this post Link to post Share on other sites
Tractorhead 9,198 #16 Posted May 17, 2020 to nice Rig. sounds you‘re on the right Way. 13V can be happen in idle if battery is not precharged and Voltage level is below 12,5-12,2Volts without any load and charging system must deliver huge charging Current depending on battery age and battery status. If engine raises rpm the charging Voltage will increase to 13,4-13,6 Volts. Clamp Ammeter if available in DC is your Friend at this point. Charging current will depending on charging coil and regulator up to 15A, what is for a cheap Ammeter too much. I preferr the Clamp Ammeters because of contactless Current measurement. Even if a measured current is too high, you don‘t can destroy it. What Voltage you reading before Start on unloaded Battery? Share this post Link to post Share on other sites
