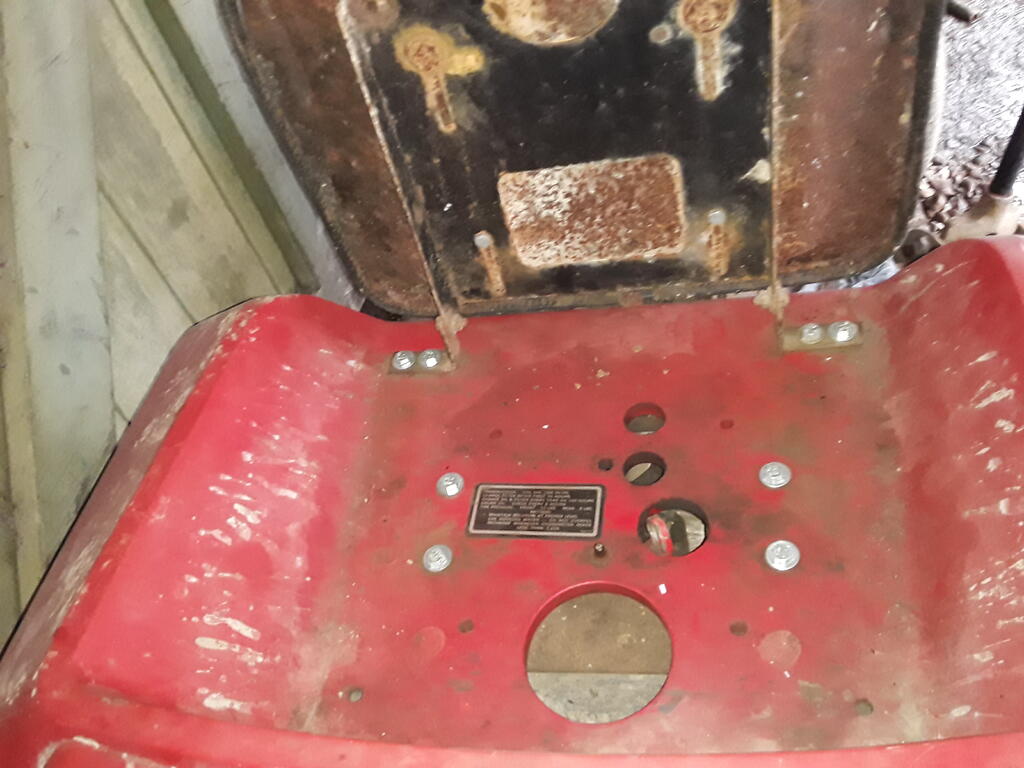

Stike 204 #1 Posted May 4, 2020 I was wondering if someone here could get a picture of the seat mount for a c195, when I got the tractor all that was holding the seat was 2 angle brackets to pivot and a piece of 2x6 to hold up the back of the seat. Share this post Link to post Share on other sites
Lee1977 7,224 #2 Posted May 4, 2020 Originally there was pin with a rubber cup a spring with roll pin to hole it all in place in the back holes. There was also a set of adjustible slides under the seat. Share this post Link to post Share on other sites
stevasaurus 23,307 #3 Posted May 4, 2020 Download this manual...the TIPL Drawing and parts list near the bottom. 2 Share this post Link to post Share on other sites
Alex175 784 #4 Posted May 4, 2020 I was actually planning on taking the seat pan off of mine this afternoon to get to something, so I will try to get you pictures tonight during that process. 1 1 Share this post Link to post Share on other sites
stevasaurus 23,307 #5 Posted May 4, 2020 Pictures are always better then a drawing. Share this post Link to post Share on other sites
Stike 204 #6 Posted May 4, 2020 Thanks for the replies, the manuals will be very helpful and I see I'm missing the slides and pin with cup and spring, now need to source those parts and I agree pictures are always great. Share this post Link to post Share on other sites

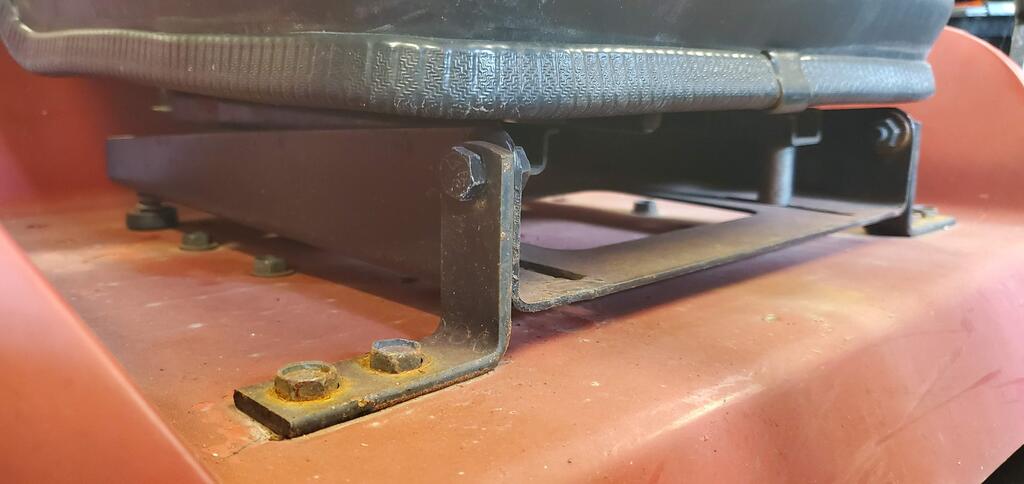

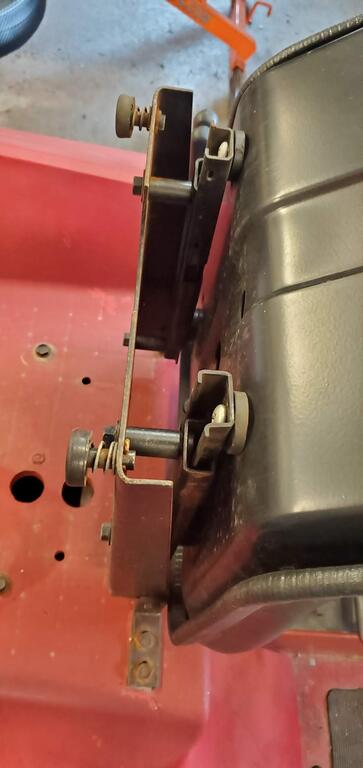

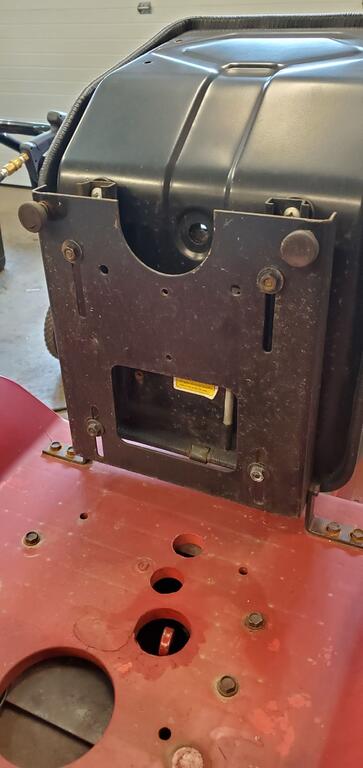

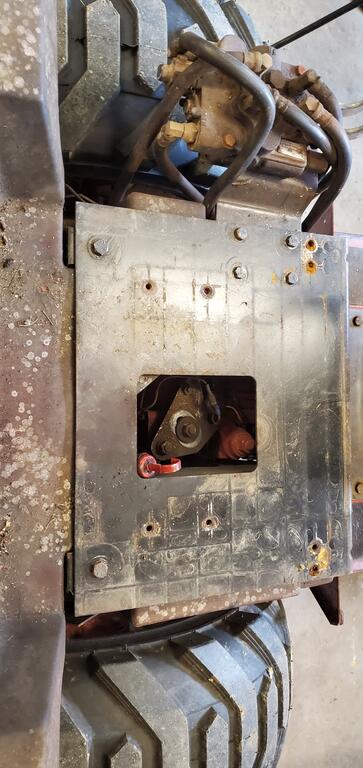

Alex175 784 #7 Posted May 4, 2020 Here is the setup I have. Keep in mind that mine is a 1984 with the hydraulic controls up on the left side of the seat pan, so it may differ from yours in some ways. The final picture here is with the seat pan removed, showing the bracket onto which it mounts. I hope these pictures help you in some way, if you have any questions, or need more pictures, please don't hesitate to ask! 4 1 Share this post Link to post Share on other sites
Stike 204 #8 Posted May 4, 2020 Thank you! Between the parts break down and the pics I know what I need to find, seems po removed the slides and pins and flipped the mounting plate over and bolted the seat to it that way for some reason??? Again thanks for all the help, this is the most knowledgeable and friendliest forum I've ever seen. 4 1 Share this post Link to post Share on other sites
Skipper 1,789 #9 Posted May 4, 2020 That's the same setup I have on my 84 I think the mounting plate is the same as on other horses, and I bet you could even use one with the gas cylinder setup if you fancy that. 1 1 Share this post Link to post Share on other sites
