Rear worklight

Recommended Posts

Mudrig150

I want to add a rear worklight to my 317 and 140, and I have 2 requirements.

1. Don't want to drill holes in the body, frame don't matter to me

2. I want a 2 position light switch, off, headlights, headlights+worklight



Any suggestions?

Share this post


Link to post
Share on other sites

shallowwatersailor

Look for a magnetic base for the worklight. Northern Tool sells them. Placing the light down low on the frame probably won't do much for illumination.

Share this post


Link to post
Share on other sites

Mudrig150

Wait- Wanted to make this thread in electrical. Oops.



Also just realized there's already holes in my fenders to mount the light to, theres 2 that were for the radio mount, and one at the back for the wierd base thing, the thing next to the taillight.

Edited by Mudrig150

Share this post


Link to post
Share on other sites

pullstart

with the use of a diode, a single pole double throw (three position) switch could be made to work.  The diode will allow electrical travel in only one direction so having the headlights powered in both on positions without powering the work light too.

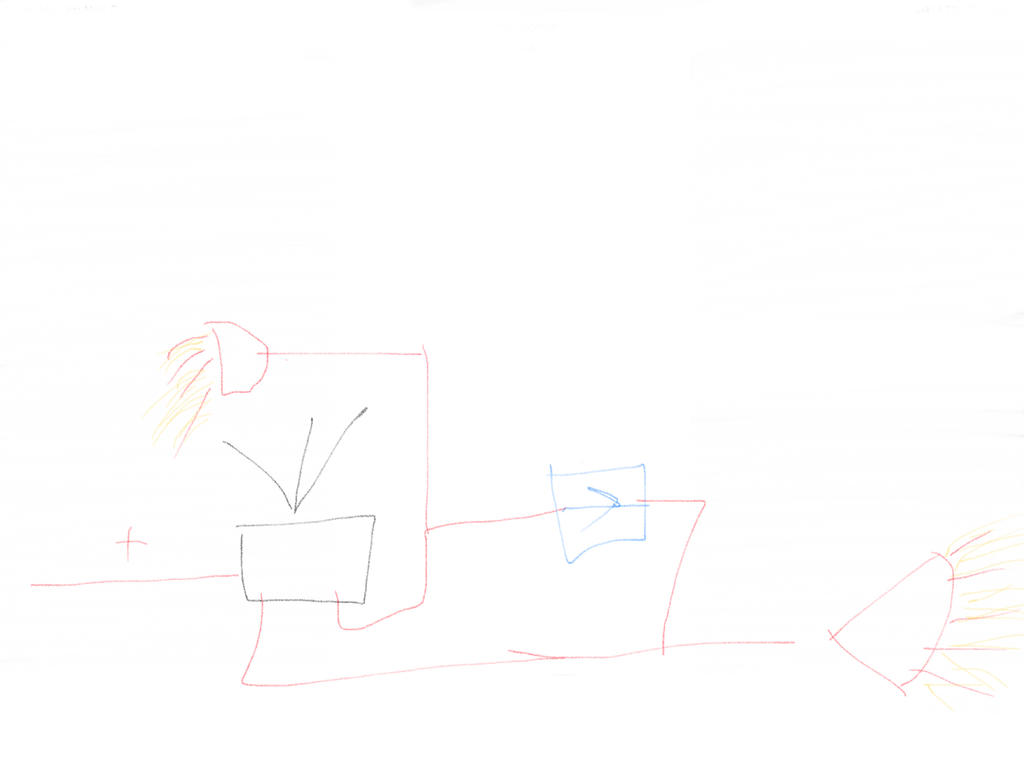

here’s a quick sketch of what I mean.






Edited by pullstart
Drawing
  • Like 2

Share this post


Link to post
Share on other sites

Mudrig150
10 minutes ago, pullstart said:

with the use of a diode, a single pole double throw (three position) switch could be made to work.  The diode will allow electrical travel in only one direction so having the headlights powered in both on positions without powering the work light too.

I know there are the simple ON-OFF-ON switches, might just use one of them and connect the headlight to both terminals and the worklight to the lower one.

Share this post


Link to post
Share on other sites

pullstart

Without the diode, I’m pretty sure both circuits will be powered when you flip either switch...

Share this post


Link to post
Share on other sites

Mudrig150
1 minute ago, pullstart said:

Without the diode, I’m pretty sure both circuits will be powered when you flip either switch...

Oh, you have a point.

Share this post


Link to post
Share on other sites


pullstart

A simple inline one rated at whatever the headlight circuit is might be a cheaper solution if you have the means to soldier it in to the wiring circuit.






Share this post


Link to post
Share on other sites

Mudrig150
11 minutes ago, pullstart said:

A simple inline one rated at whatever the headlight circuit is might be a cheaper solution if you have the means to soldier it in to the wiring circuit.

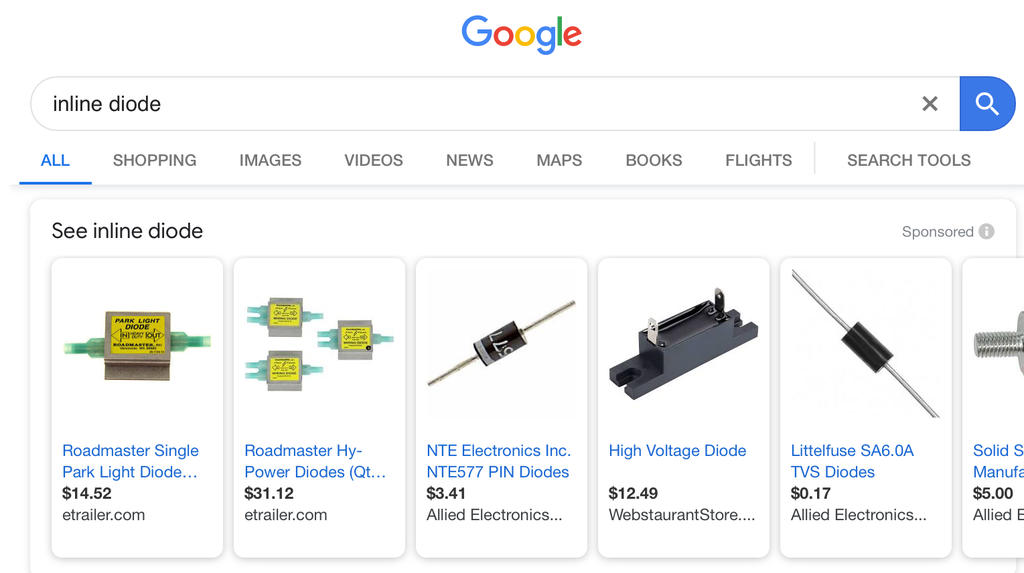

The one I posted is an inline diode. It has 2 inputs and 2 outputs, and doesn't allow backfeeding. Plus it's a sealed diode.

Edited by Mudrig150

Share this post


Link to post
Share on other sites

pullstart

If it works for you, cool!  Let us know how the project goes.

Share this post


Link to post
Share on other sites

edgro

How about single throw, double pole,onoffon,work light on one side, 1pole, headlight other side both poles

Share this post


Link to post
Share on other sites

Mudrig150
9 minutes ago, edgro said:

How about single throw, double pole,onoffon,work light on one side, 1pole, headlight other side both poles

How would that look?

Share this post


Link to post
Share on other sites
