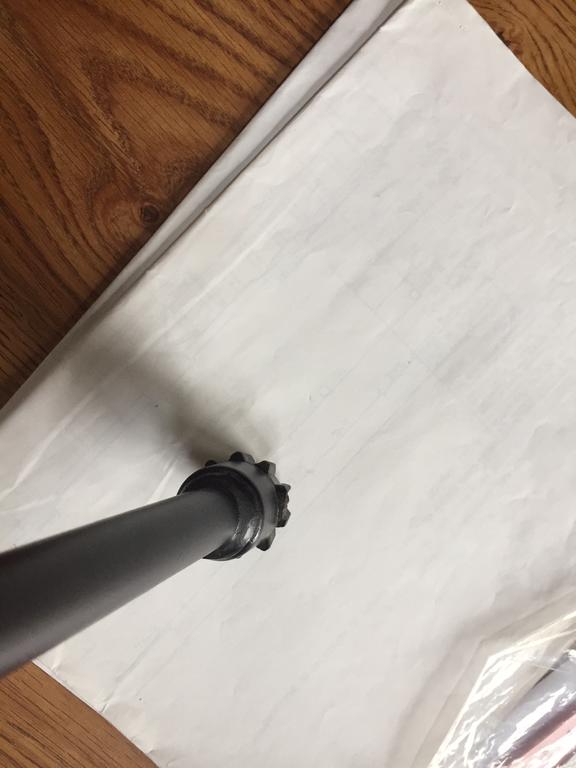

dalez 139 #1 Posted October 1, 2019 (edited) As anyone removed and replaced the bushings in the pedal of a Hydro tractor 416-H. Did you get the first one out by catching it on the inner lip? Did it come out easy? I assume it is a Toro part only. Also the upper steering shaft has what appears to be a piece of casting left on by the gears. Is this meant to be there to line up with something or just didn't get ground off. I attached a picture of the gear but it might be hard to see what I'm talking about. Edited October 1, 2019 by dalez grammer Share this post Link to post Share on other sites
Lee1977 7,232 #2 Posted October 1, 2019 That's just the unmachined part of the gear. Share this post Link to post Share on other sites

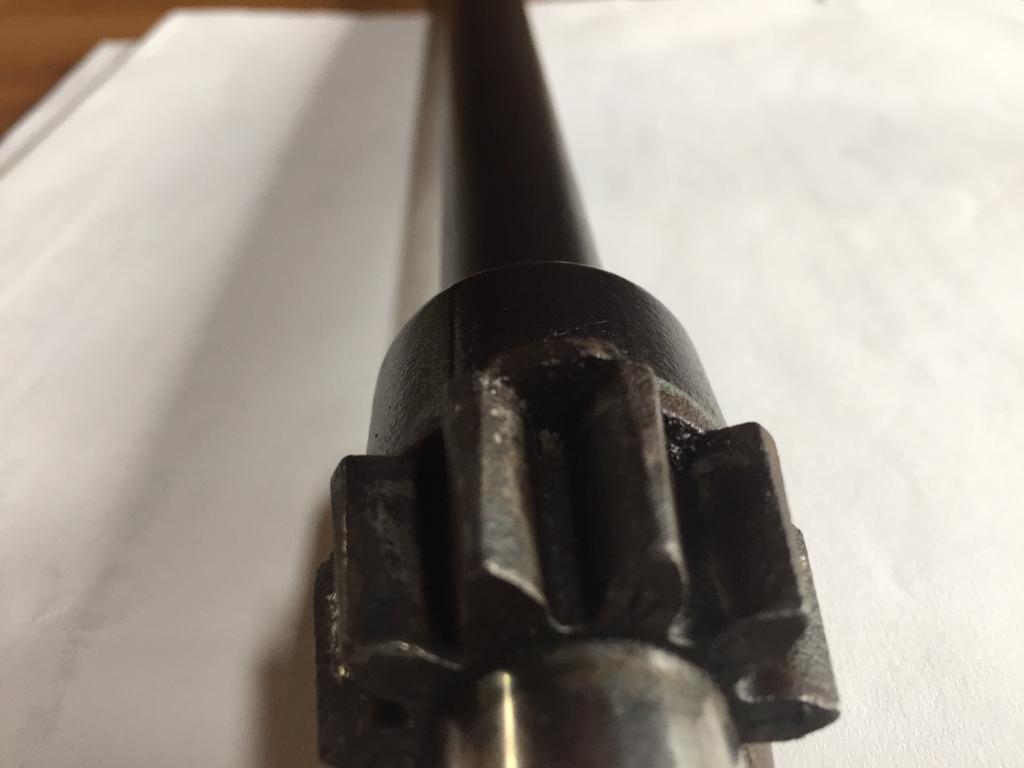

dalez 139 #3 Posted October 2, 2019 OK. I was thinking it was to line up somewhere to make sure the steering wheel was on in the proper orientation. Another picture might show at better angle. Share this post Link to post Share on other sites
dalez 139 #4 Posted October 2, 2019 Sorry, no bushings in this year. I was looking at a schematic from a previous years model. Share this post Link to post Share on other sites
oliver2-44 10,783 #5 Posted October 2, 2019 That chunk that’s between the teeth about 3 o’clock is probable some casting that didn’t get ground off Share this post Link to post Share on other sites
