What is the biggest single cylinder put in a horse?

Recommended Posts

So i helped out a young guy on market place facebook last night he had no idea what horse he had. i told this kid some stuff about his horse he had for sale the history of the company and where it was built he had no clue. I was puzzled tho by the hp kohler he said he had and i saw in the photos in his horse. it was a hydrostat and had a single cylinder and he said it was 18 hp. I didn't know they put a 18 hp single cylinder in a horse did they? My late dad had one with a 16hp i remember. He also had no idea about the model i told and showed him where to look. and gave him some advise if he decided to keep it. He was very grateful for the help.

Share this post


Link to post
Share on other sites

31 minutes ago, bottjernat1 said:

So i helped out a young guy on market place facebook last night he had no idea what horse he had. i told this kid some stuff about his horse he had for sale the history of the company and where it was built he had no clue. I was puzzled tho by the hp kohler he said he had and i saw in the photos in his horse. it was a hydrostat and had a single cylinder and he said it was 18 hp. I didn't know they put a 18 hp single cylinder in a horse did they? My late dad had one with a 16hp i remember. He also had no idea about the model i told and showed him where to look. and gave him some advise if he decided to keep it. He was very grateful for the help.

I'm guessing the "8" should be a "6" as in 16 HP.

  • Like 1

Share this post


Link to post
Share on other sites

Posted (edited)

16hp is the largest single wheelhorse used



that doesn't mean someone could have put a kohler K361 in place of the original motor

Edited by buckrancher
  • Like 5

Share this post


Link to post
Share on other sites

1 hour ago, buckrancher said:

16hp is the largest single wheelhorse used



that doesn't mean someone could have put a kohler K361 in place of the original motor

:text-yeahthat:



I'm not even close to being a long shot of an expert but I thought the 18 horse singles were an overhead valve engine and a lot taller and hence would not fit under the hood of most or all wheel horses...... ?



I'm thinking if you could see a picture of that engine and if it is a flat head that we are accustomed to it is almost definitely a 16.

  • Like 1

Share this post


Link to post
Share on other sites

1 minute ago, ebinmaine said:

:text-yeahthat:



I'm not even close to being a long shot of an expert but I thought the 18 horse singles were an overhead valve engine and a lot taller and hence would not fit under the hood of most or all wheel horses...... ?



I'm thinking if you could see a picture of that engine and if it is a flat head that we are accustomed to it is almost definitely a 16.

That is what i thought to. it looked to me to be a 16 hp under the hood of this guys horse. i just wanted to make sure i was right.

  • Like 1

Share this post


Link to post
Share on other sites



:think:             Could it be that the tractor left the factory with a Kohler twin 18 HP and a previous owner changed it out for a single cylinder and the young man who owns it is unaware that it is no longer an eighteen horse horse?

  • Like 1

Share this post


Link to post
Share on other sites


Posted (edited)

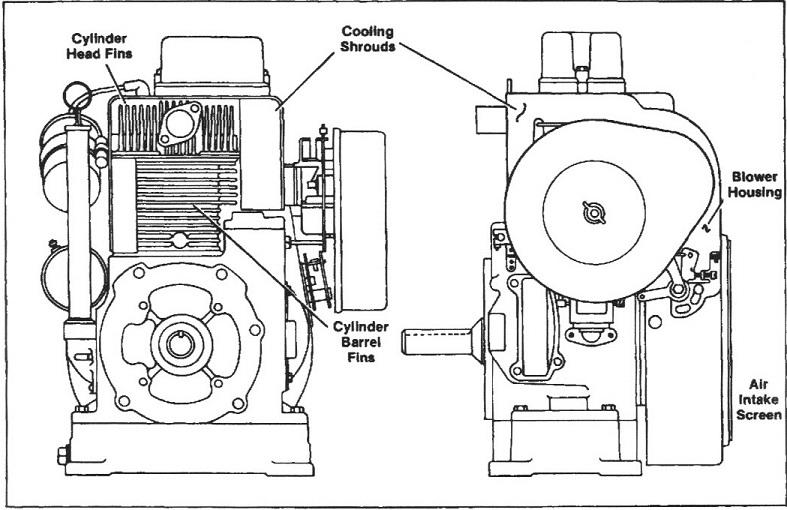

The look of a K361 OHV is very unique visually compared the all the other valve-in-block K series engines.

You could actually tell the difference from 50-75' away if the engine is exposed at all.




The K361 shares the same bore and stroke dimensions with the K341 (3.750" x 3.250") = 35.90 cu. in. (588cc)

The compression ratios however, vary a great deal: 7.3:1 (K341) to 9.2:1 (K361)

K341 is a 10 bolt head, while the K361 is a 6 bolt head.

The valve sizes vary marginally as well: K341; Intake: 1-3/8", Exhaust: 1-3/8" / K361; Intake: 1-7/16", Exhaust: 1-13/32".

Engine code number can identify each clearly also. Code (71) = Model of Engine (K341); Code (23) = Model of Engine (K361).

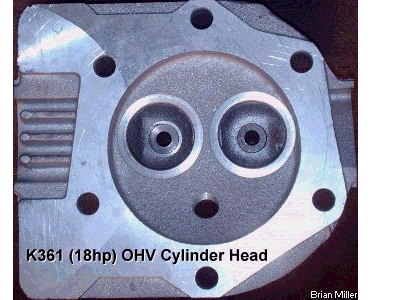

K361 head:




They both have rod dippers and splash lube.
The 2 HP difference comes from the OHV and cam. The rockers on the K361 are oiled by the splash and vapor of the common K Series bottom.

They supposedly were only made in 1979-1980.

While they are rare, its generally believed to be because they had issues enough that they quit production. Not enough oil gets to the rockers, and valve seats come out.

"K361's lack of oil to the rockers and valves is because of a design flaw in the location of the crankcase breather. The top of the engine builds pressure therefore keeping the oil from reaching the top in sufficient quantities. It is a simple fix to get the oil up to the rockers. Block off the factory crankcase breather and install one in the aluminum valve cover on top of the engine. You will have to cut the factory valve cover to insert a breather. Once the top of the engine can breathe it will oil fine.
Think of any other engine with overhead valves and where the crankcase breather is. Kohler really dropped the ball on this one."

     *  http://gardentractortalk.com/forums/topic/16803-kohler-k361-any-good/

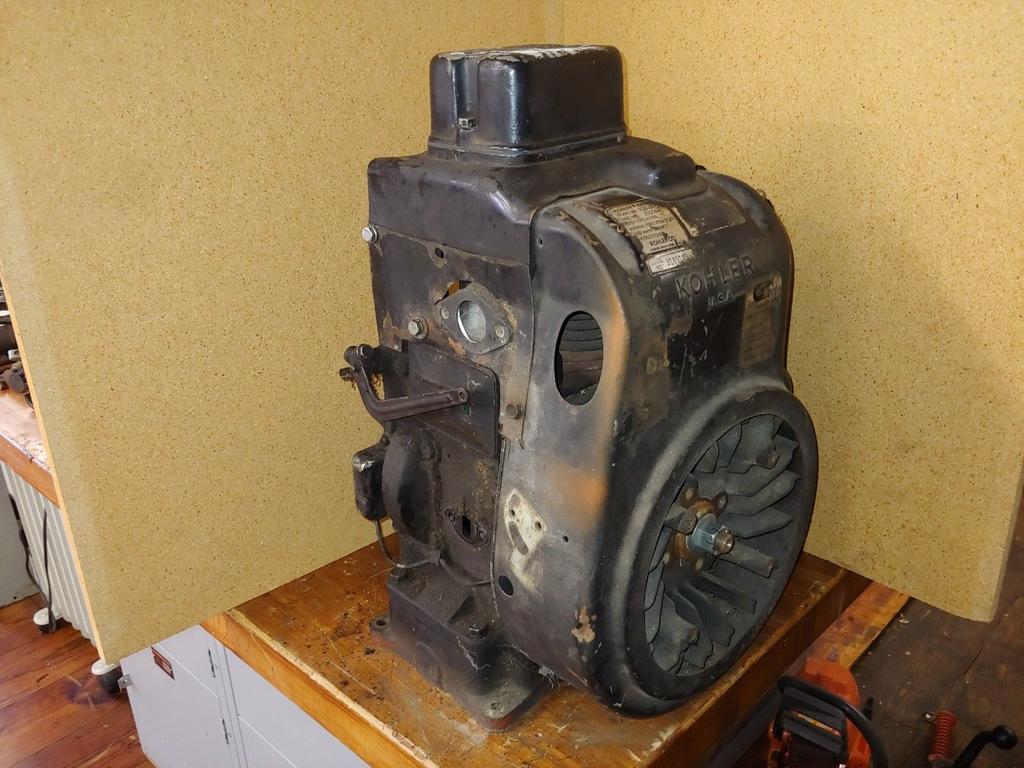

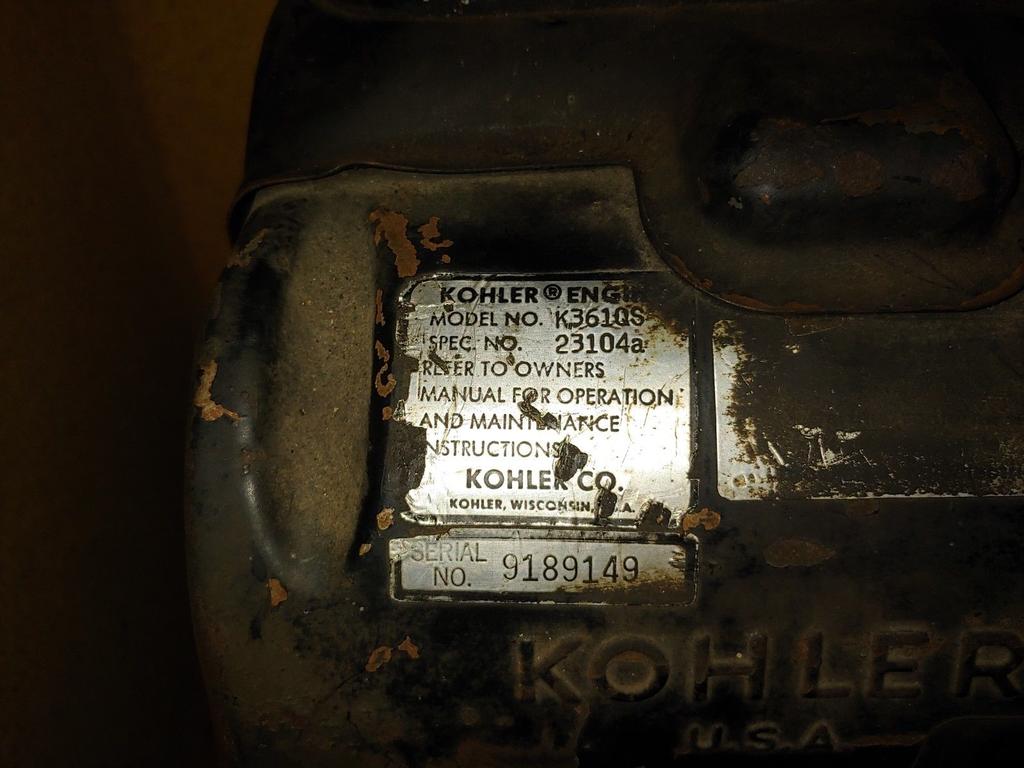

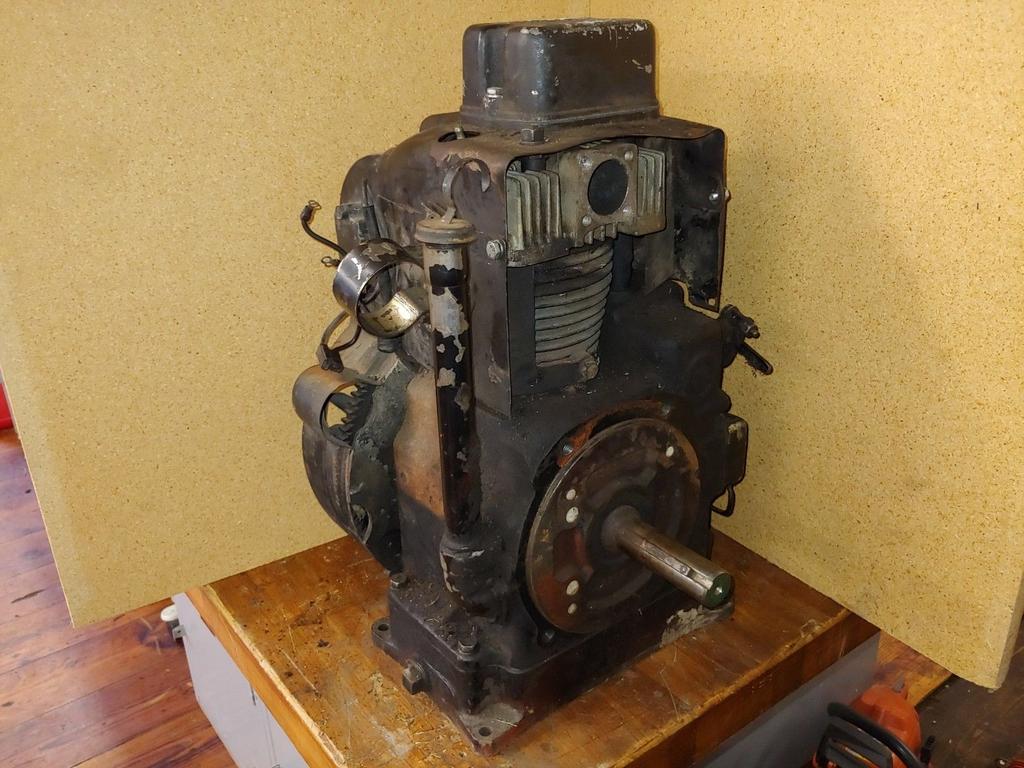

There is actually one off a Power King for sale at that well known auction site. Pics from the listing:


510783468_KohlerK361b.jpg.cc24f68f5cf3a471f42dcccb5b7217a1.jpg78482133_KohlerK361c.jpg.a8a954f1df5c6979df694576fdd90071.jpg



https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&ved=2ahUKEwjwiJfj8N7fAhUELK0KHfjbCc4QFjAAegQIBxAC&url=http%3A%2F%2Fkohlerengines.com%2Fengines%2Fonlinecatalog%2Fpdf%2Ftp_1288.pdf&usg=AOvVaw1p06NV2wXpPPfkzsoVdnz_

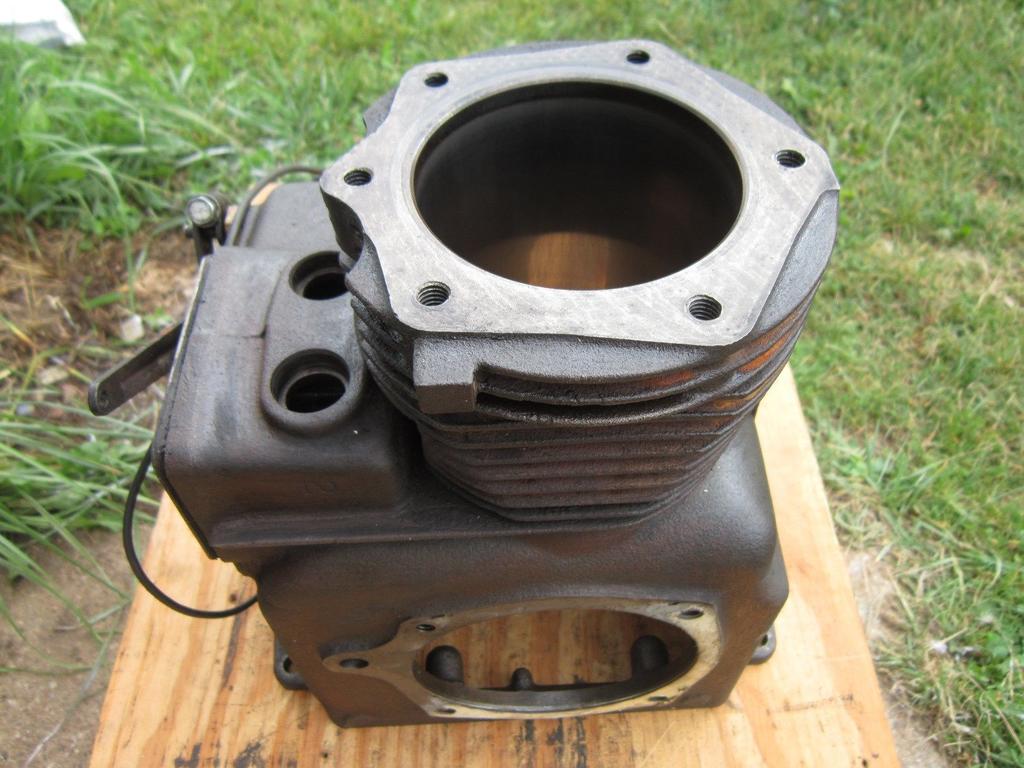

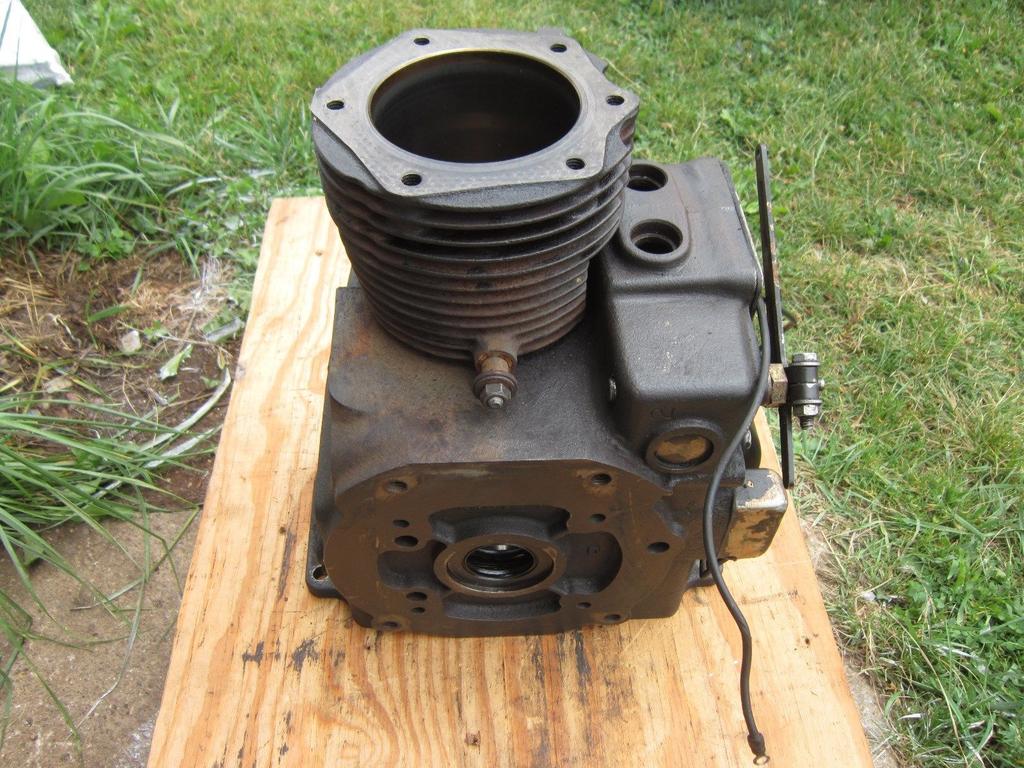

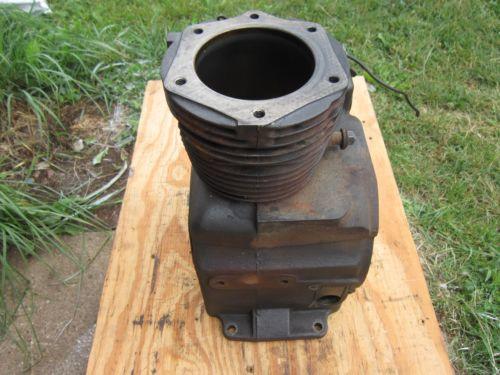

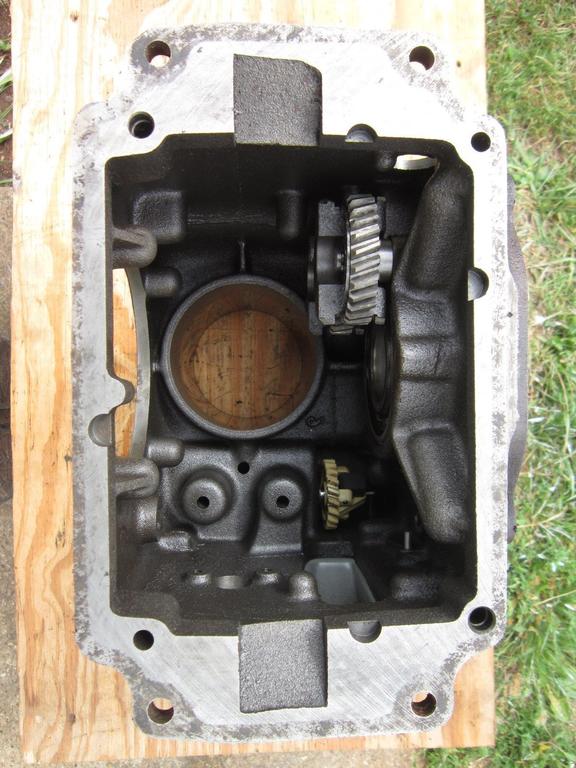

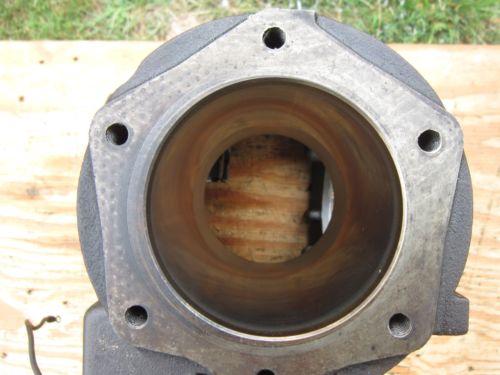

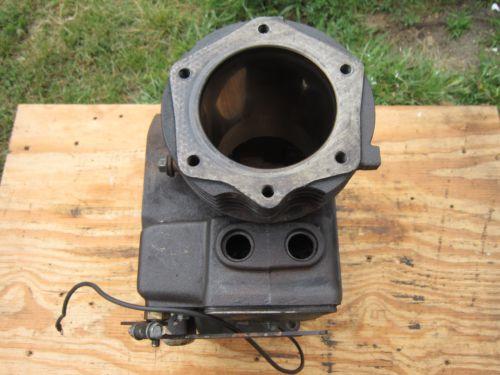

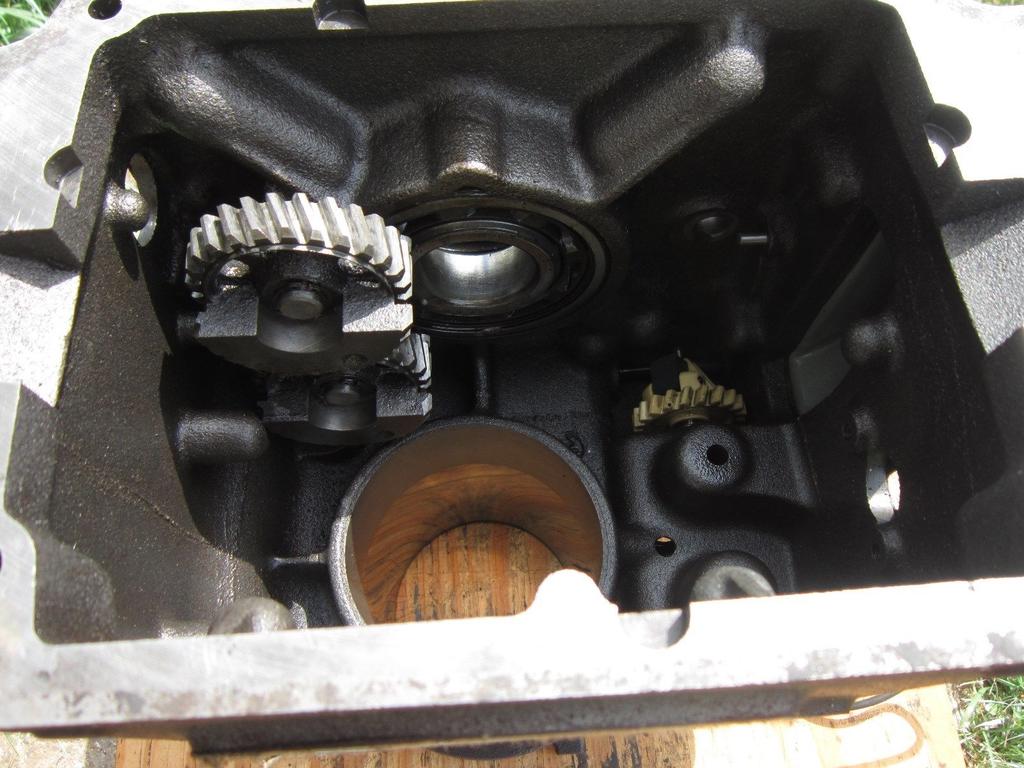

Addendum: K361 block pics:

1827238937_KohlerK361block1.gif.cc65729fc2297ec12134e0a893a4d68f.gif521871953_KohlerK361block2.gif.702e9a4349f5b41c4e9ddc4ffdcf1a7a.gif1766215865_KohlerK361block3.gif.49f92bb1165ee8fa4b6d6e3a3de5c3bc.gif1095952707_KohlerK361block4.gif.2ff97f89fc1939ed79684dfdf5248702.gif5625754_KohlerK361block5.gif.c60598810f1ff4411b78b8df37f782b1.gif2035331427_KohlerK361block6.gif.b23d00107b61b1cfa8174d715c160259.gif972122148_KohlerK361block7.gif.bfe1375ea4965adacb06eeaae744c80e.gif

Edited by ztnoo
  • Like 3
  • Excellent 2
  • Thanks 1

Share this post


Link to post
Share on other sites


Wow, I feel like I was getting the hang of things, then I find out there’s an 18 horse Kohler single?  So cool!

  • Like 2

Share this post


Link to post
Share on other sites




A Courage engine is total junk. Aluminum block, nylon cam gears and a very poor design. Consider yourself lucky if you get 200 hours out of one.

The Cub lawn tractors have them and after a year or two, they either blow themselves up or tear the blocks apart.

Built for people who don't mind buying a new mower every 2-3 years.

  • Like 2
  • Sad 2

Share this post


Link to post
Share on other sites

24 minutes ago, oldredrider said:

A Courage engine is total junk. Aluminum block, nylon cam gears and a very poor design. Consider yourself lucky if you get 200 hours out of one.

The Cub lawn tractors have them and after a year or two, they either blow themselves up or tear the blocks apart.

Built for people who don't mind buying a new mower every 2-3 years.

I was being funny...

  • Like 3
  • Haha 1

Share this post


Link to post
Share on other sites

14 minutes ago, oldredrider said:

A Courage engine is total junk. Aluminum block, nylon cam gears and a very poor design. Consider yourself lucky if you get 200 hours out of one.

The Cub lawn tractors have them and after a year or two, they either blow themselves up or tear the blocks apart.

Built for people who don't mind buying a new mower every 2-3 years.



My FIL bought a Cub with that engine. No comparison to our old cast iron Kohlers even if it was rated at 20hp. It caught fire and burned up on me a couple years ago. Once all that plastic goes up in flames there's not much you can do.

  • Sad 3

Share this post


Link to post
Share on other sites

48 minutes ago, chip61 said:



My FIL bought a Cub with that engine. No comparison to our old cast iron Kohlers even if it was rated at 20hp. It caught fire and burned up on me a couple years ago. Once all that plastic goes up in flames there's not much you can do.

Yah ther is... pull up a lawn chair, crack a cold one and watch her burn...oh and make sure you got some extra cold ones for the fire dept....:lol:

  • Haha 7

Share this post


Link to post
Share on other sites


At least we didn't have to watch :wh: go down that road...

  • Like 2

Share this post


Link to post
Share on other sites

31 minutes ago, roadapples said:

At least we didn't have to watch :wh: go down that road...



That would've been a very sad occasion!

  • Like 2

Share this post


Link to post
Share on other sites

22 hours ago, gwest_ca said:

16hp overhead valve Tecumseh used in the model 1-0385

Garry

Are these Tecumsehs worth anything? I have one and don't seem to have a use for it. It actually doesn't fit under the hood of a long frame.

  • Like 1

Share this post


Link to post
Share on other sites

21 minutes ago, Herder said:

Are these Tecumsehs worth anything? I have one and don't seem to have a use for it. It actually doesn't fit under the hood of a long frame.

Adam what's the one that you have? A C160 actually is a long frame tractor so I'm a little confused why it wouldn't fit.



Share this post


Link to post
Share on other sites


I may be wrong, but I believe I read that the Tecumseh powered C160's had spacers to lift the hood so it would clear the taller OHV Techy.

  • Like 1

Share this post


Link to post
Share on other sites

15 hours ago, Herder said:

Are these Tecumsehs worth anything? I have one and don't seem to have a use for it. It actually doesn't fit under the hood of a long frame.





If it works the ignition module is worth money

  • Like 2

Share this post


Link to post
Share on other sites

23 hours ago, ebinmaine said:

Adam what's the one that you have? A C160 actually is a long frame tractor so I'm a little confused why it wouldn't fit.



I have a C160 parts tractor that has this large overhead valve or ignition tecumseh on it. At least thats what l believe it is.  I have been wrong once or twice.  I had considered trying to mount it on the short frame that your picking up.  That idea was short lived.

  • Like 2

Share this post


Link to post
Share on other sites

1 minute ago, Herder said:

I have a C160 parts tractor that has this large overhead valve or ignition tecumseh on it. At least thats what l believe it is.  I have been wrong once or twice.  I had considered trying to mount it on the short frame that your picking up.  That idea was short lived.

Ahhh....



Any chance of getting some pics sometime?

As Paul stated above, if that thing runs, the ignition module is definitely worth something.



Share this post


Link to post
Share on other sites

19 hours ago, chip61 said:

I may be wrong, but I believe I read that the Tecumseh powered C160's had spacers to lift the hood so it would clear the taller OHV Techy.

That may be so, its on a C160 but i am not sure it's original to the tractor.
