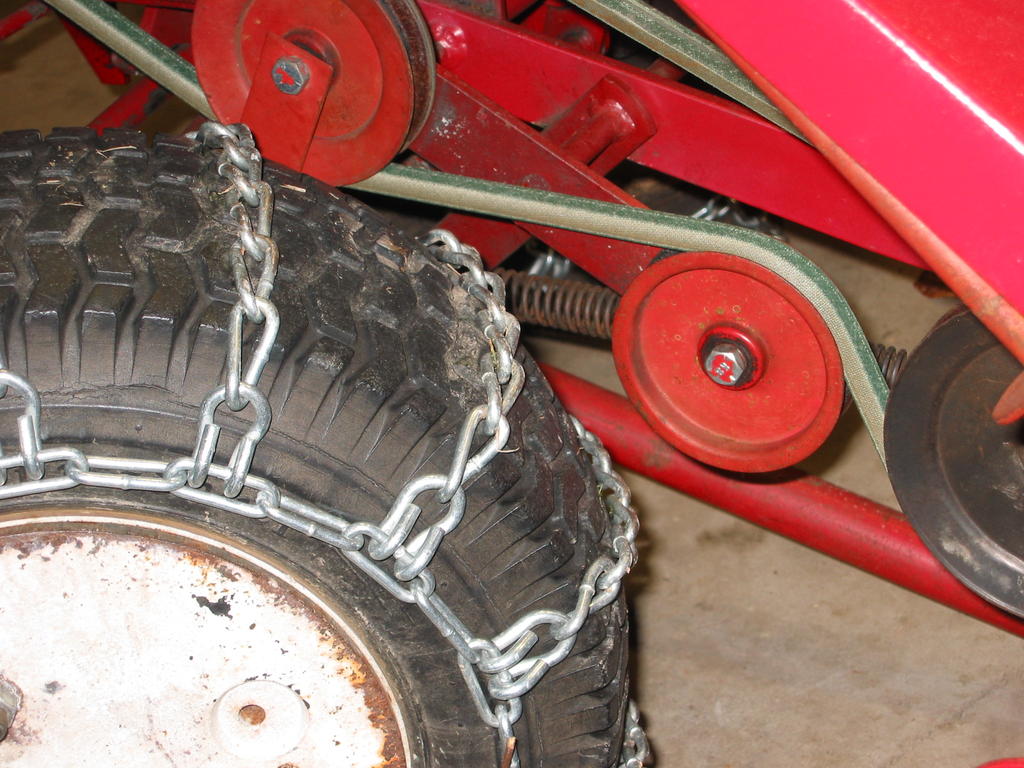

Chris1055 106 #1 Posted December 29, 2017 Hi I just mounted the snowblower and went pretty easy but the belt hits the front axle so bad I won't run it like this. Do I have the routing wrong seems like it only goes one way ? That bottom pulley is loose in the pic but was wondering if there's any adjustment on these Share this post Link to post Share on other sites

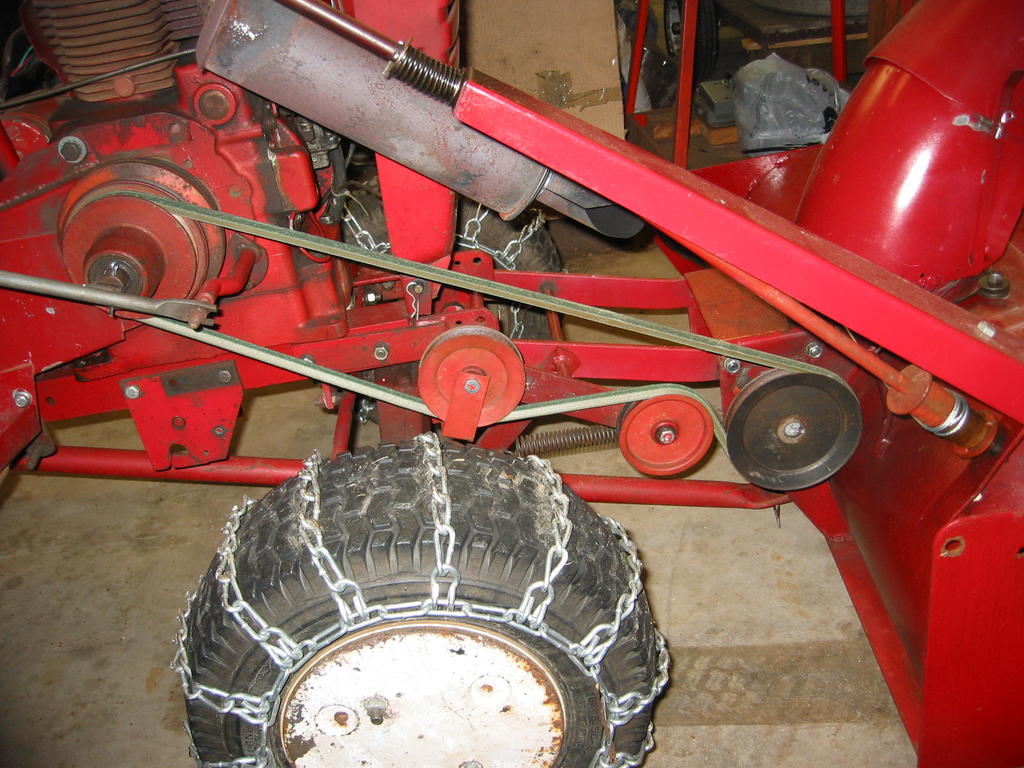

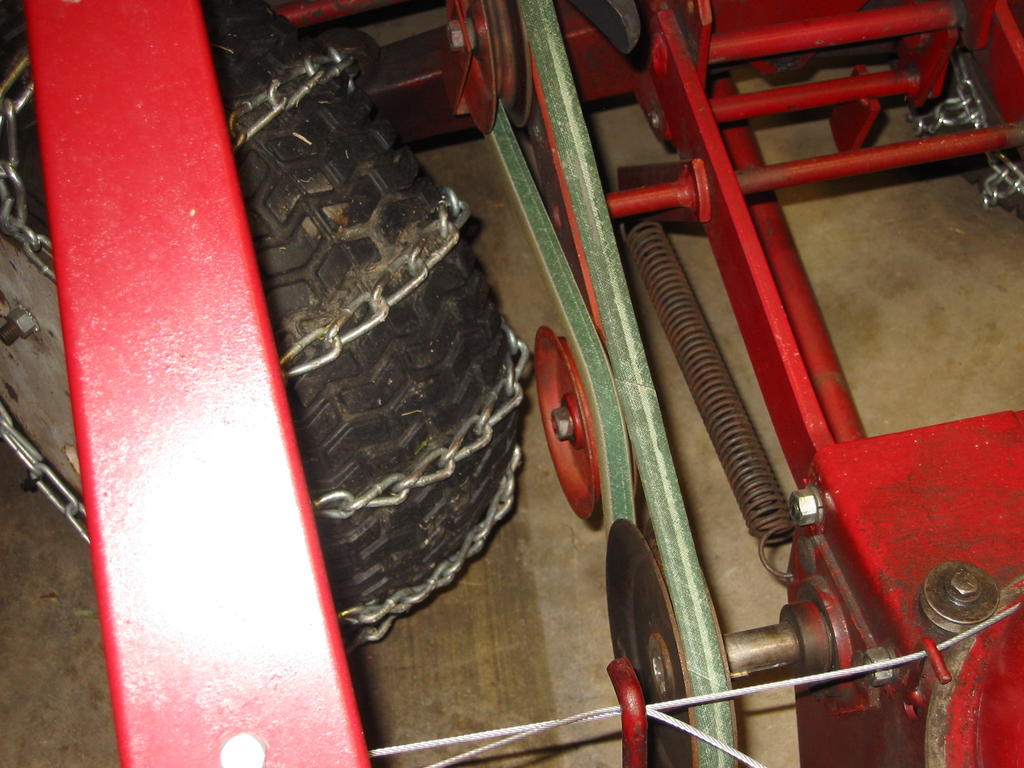

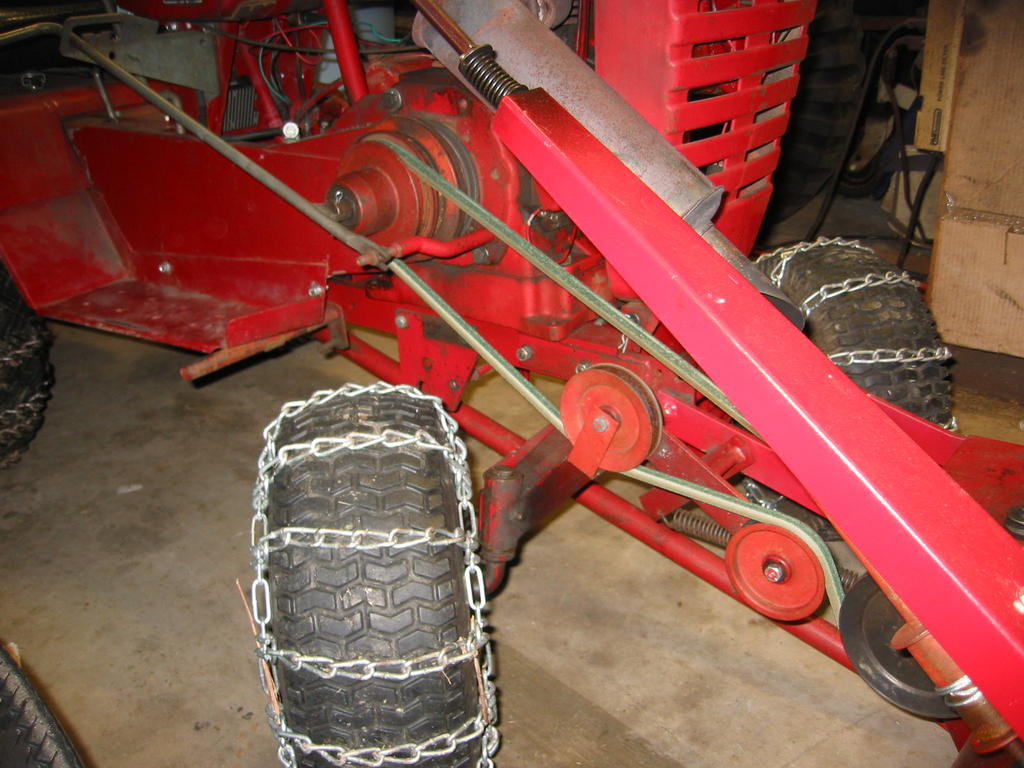

pfrederi 18,373 #2 Posted December 29, 2017 Try this routing. There should be NO idlers contacting the top belt run. 4 3 Share this post Link to post Share on other sites
Ed Kennell 40,637 #3 Posted December 29, 2017 Paul, do the front chains come close to the blower belt when turning your (Raider ?) to the left? I had to remove the right chain on my520 because it hit the belt. Share this post Link to post Share on other sites
Chris1055 106 #4 Posted December 29, 2017 ok thanks I will try that Share this post Link to post Share on other sites
pfrederi 18,373 #5 Posted December 29, 2017 3 minutes ago, Ed Kennell said: Paul, do the front chains come close to the blower belt when turning your (Raider ?) to the left? I had to remove the right chain on my520 because it hit the belt. Its an Electro (16). Cleared last years blizzard with out any issues. Gets a bit close turning left but no problems. They are not original front wheels they are later model wider ones with 16 x 6.50 8 tires not the original 16 x 5.50 8. The wheels are probably from a C series. Did the 520 front wheel have a different backset??? 1 Share this post Link to post Share on other sites
Ed Kennell 40,637 #6 Posted December 29, 2017 Don't feel bad Chris. It takes at least 3 snow blower installations to remember this. There is never a spring loaded idler on the drive loop of the belt. The engine pulley will always be pulling the belt from the implement. With a front mounted implement, this is the top loop. Rear mounted implements and the transmission, it is the bottom loop. Thanks Paul. My 520H is a '88 therefore has the straight axle. I think my chains were heavier and they were the VEE BAR design. Share this post Link to post Share on other sites
Chris1055 106 #7 Posted December 29, 2017 I'm also having trouble with the chute cable. I've read the directions in the manual. It states that to begin routing the cable the chute has to be rotated to the right 90 degrees. But is it to the right standing behind it or in front? I've been routing the cable with the chute turned to the crank side of the blower Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,272 #8 Posted December 30, 2017 Left's and right's are always from the operator in the seat position. Garry 2 Share this post Link to post Share on other sites
Chris1055 106 #9 Posted January 3, 2018 Ok so I have everything set pretty much on the snowblower chain is on, chute cable is good and belt is now on correctly and it runs good. The only thing I noticed is the auger has about 1/8 inch of play side to side any ideas? Share this post Link to post Share on other sites
Ed Kennell 40,637 #10 Posted January 3, 2018 If the bearings are quiet and free, keep them greased and blow some snow. 2 Share this post Link to post Share on other sites
pfrederi 18,373 #11 Posted January 3, 2018 I have a couple of blowers they all have some end play on the auger. The one hooked up now blew the 28+inch snow last March without a problem... Share this post Link to post Share on other sites
Machria 78 #12 Posted January 5, 2018 How long are these drive belts? I have a GT!4 with snow blower, just snapped the belt. I think I recall it being 79 or 80"? Does that sound correct? Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,272 #13 Posted January 5, 2018 Gt-14 belt has been added to this page. Click on the picture Garry Share this post Link to post Share on other sites
Machria 78 #14 Posted January 5, 2018 16 minutes ago, gwest_ca said: Gt-14 belt has been added to this page. Click on the picture Garry Thanks Garry. But I have that manual already, it just says "Drive Belt", nowhere does it say what lenght it is. My belt got completely destroyed, so I can't even measure it... Share this post Link to post Share on other sites
pfrederi 18,373 #15 Posted January 5, 2018 (edited) last page #8160 Drive Belt Edit 8160 = 82.9" 21/32 width (B cross section) (A gates Green 6983 83" x5/8 probably works) Edited January 5, 2018 by pfrederi 2 Share this post Link to post Share on other sites
moe1965 752 #16 Posted January 6, 2018 not positive but i think your belt is on the wrong pulley on the engine. not that it will help with your issue. just something i saw in the picture... Share this post Link to post Share on other sites
pfrederi 18,373 #17 Posted January 6, 2018 Outer sheeve for snow blower inner for mower decks Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,272 #18 Posted January 7, 2018 On 2018-01-05 at 10:03 AM, Machria said: Thanks Garry. But I have that manual already, it just says "Drive Belt", nowhere does it say what lenght it is. My belt got completely destroyed, so I can't even measure it... If you click on the picture in the link it will take you to the cover page for that file. That is where notes can be added to supplement the downloadable files. Answers the most common questions without downloading a file only to find out the info is not in them. You can download the files from the cover page also. Garry Share this post Link to post Share on other sites
