Adams94

520-8 pto arm clevis

Recommended Posts

Adams94

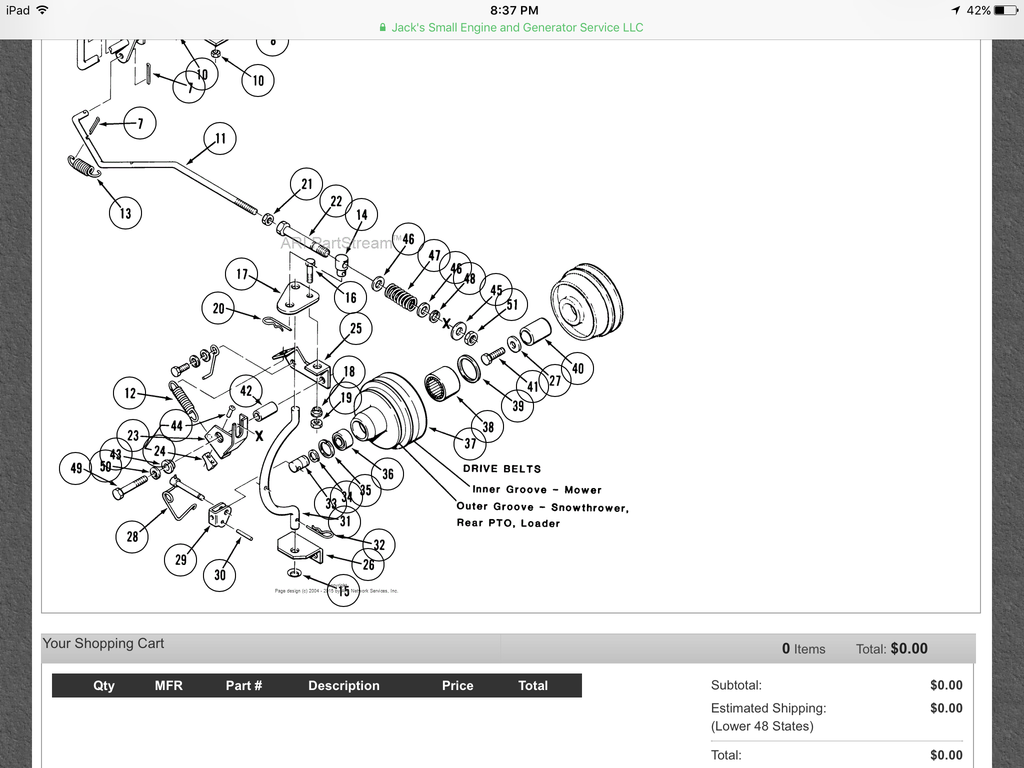

I have a 1990 520-8 and a 1982 c195, the c195 is the top picture and the 520 is on bottom.  My agrivation is the pto clevis where the clip pin goes in,  on the c195 it is made to just flip down and swing but on the 520 you have like 4 more steps to get the arm to move,  why would the make it more of a pain on a newer model.  I'm wanting to change the 520



Share this post


Link to post
Share on other sites

953 nut
39 minutes ago, Adams94 said:

 why would the make it more of a pain on a newer model.

Image result for lawyers cartoon

  • Like 4

Share this post


Link to post
Share on other sites

Adams94

And of course the one for c195 is discontinued.  Oh well I will get one, no hurry

Share this post


Link to post
Share on other sites

Racinbob

My 1976 purchased new had the 520 style and I converted it to the swing down style. It definitely does save a couple steps. You should be able to find a used one. :)

Share this post


Link to post
Share on other sites

bitten

TSC has them.

Share this post


Link to post
Share on other sites

Adams94
10 hours ago, bitten said:

TSC has them.

Not the pin, the clevis itself



11 hours ago, Racinbob said:

My 1976 purchased new had the 520 style and I converted it to the swing down style. It definitely does save a couple steps. You should be able to find a used one. :)

Yea I like it a lot better, especially if you are changing the belt when that exhaust right above it is nice and hot!

Edited by Adams94

Share this post


Link to post
Share on other sites

cleat

I am interested as well.



I see 3 listed on ebay right now for a 312A, C-161, and C-165.



Will any of those fit ?

Share this post


Link to post
Share on other sites

c-series don

Yah, what Cleat said!!

Share this post


Link to post
Share on other sites

Adams94
9 hours ago, cleat said:

I am interested as well.



I see 3 listed on ebay right now for a 312A, C-161, and C-165.



Will any of those fit ?

None that I saw are correct but I may have missed it, the wheel horse part number is 109717 but discontinued.

Share this post


Link to post
Share on other sites

Racinbob

Do a search for 'Wheel Horse PTO'. Searching the part number didn't show anything but there are several of both styles still attached to the yoke listed. :)



I'm not certain about the yoke but the clevis would swap out on the 312, 161, 165 or others.



Obviously, keep in mind that you'll have to drill a new hole for the pivot point.

  • Like 1

Share this post


Link to post
Share on other sites

Adams94
3 hours ago, Racinbob said:

Do a search for 'Wheel Horse PTO'. Searching the part number didn't show anything but there are several of both styles still attached to the yoke listed. :)



I'm not certain about the yoke but the clevis would swap out on the 312, 161, 165 or others.



Obviously, keep in mind that you'll have to drill a new hole for the pivot point.

Thanks, if I found the right Clevis already mounted I would just change the arm

Share this post


Link to post
Share on other sites

cleat

Well, I thought I would have a go at designing something.

This is what I came up with.

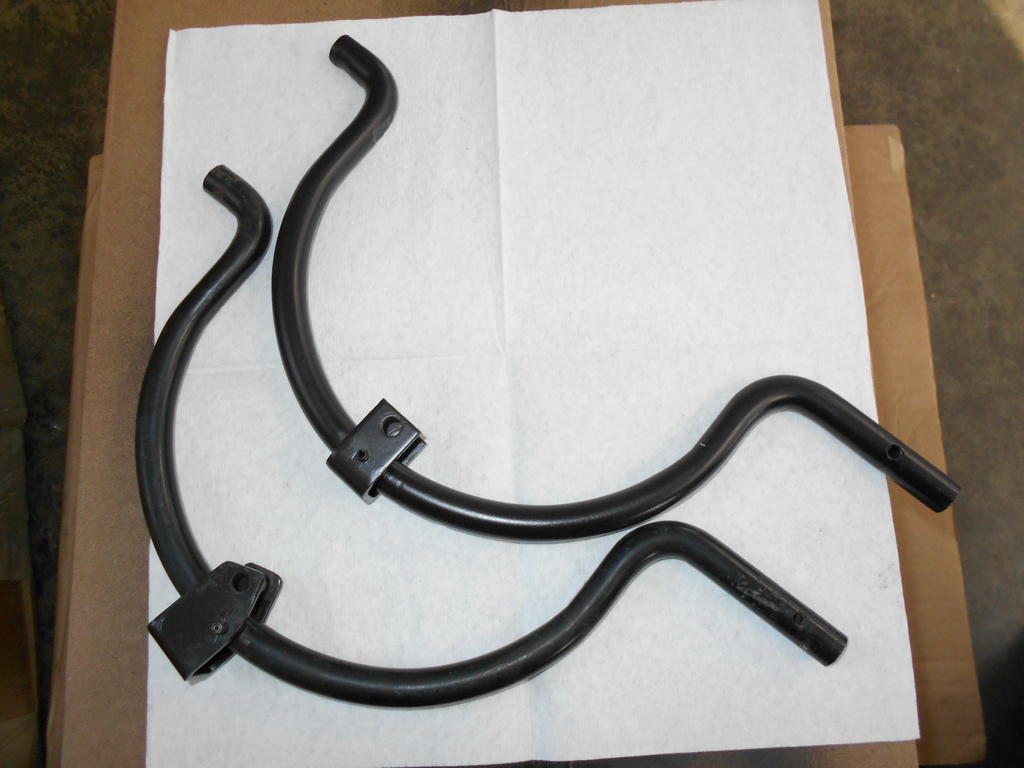

Here is a comparison with the swingaway on the left and stock on the right.

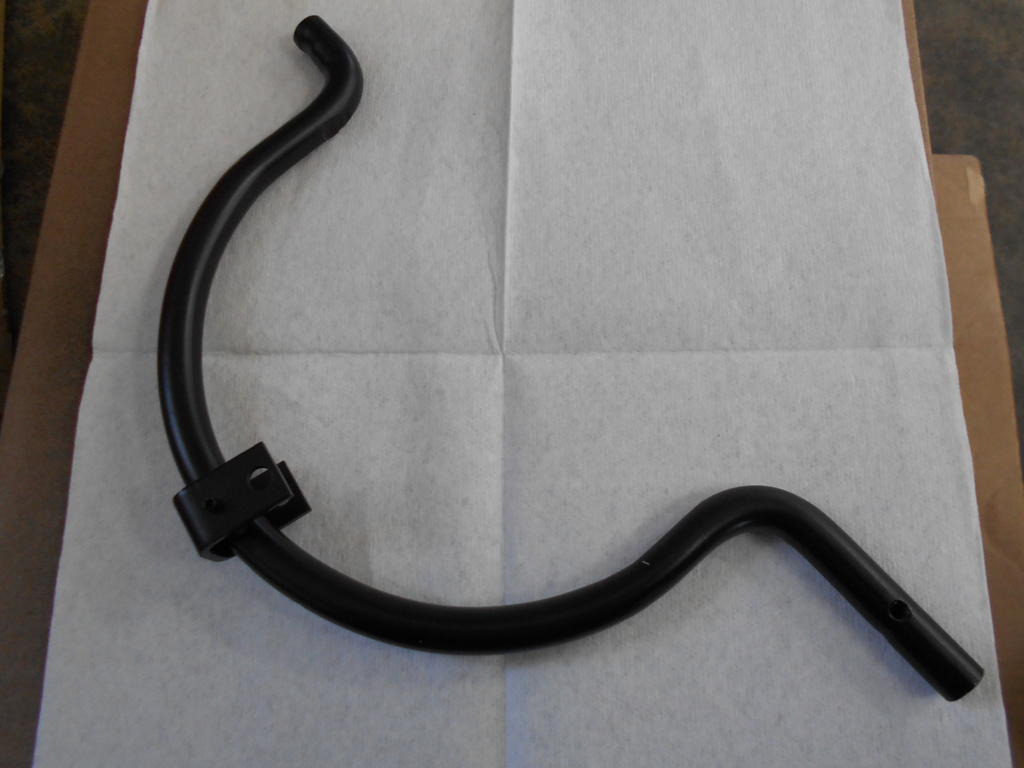

Standard OEM clevis installed.

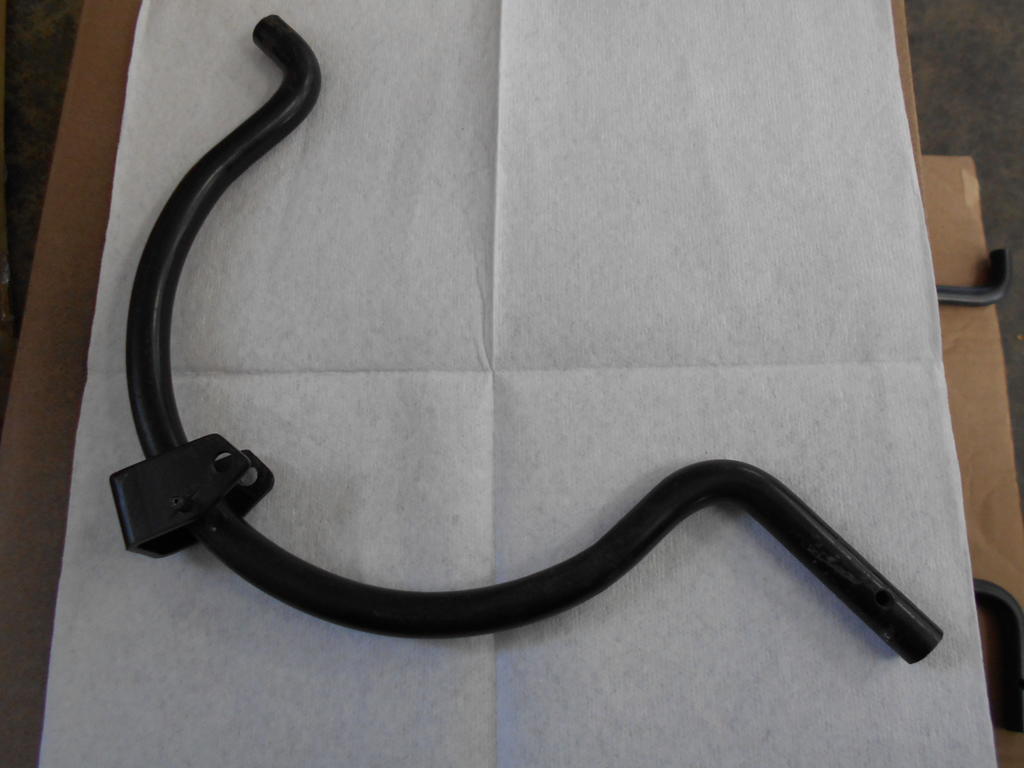

Swingaway clevis installed in normal running position.

5a4a786aca36f_Swingawayclevisinstalledinnormalposition.JPG.6324e12a0cbdf720dfc4d5728d47877a.JPG

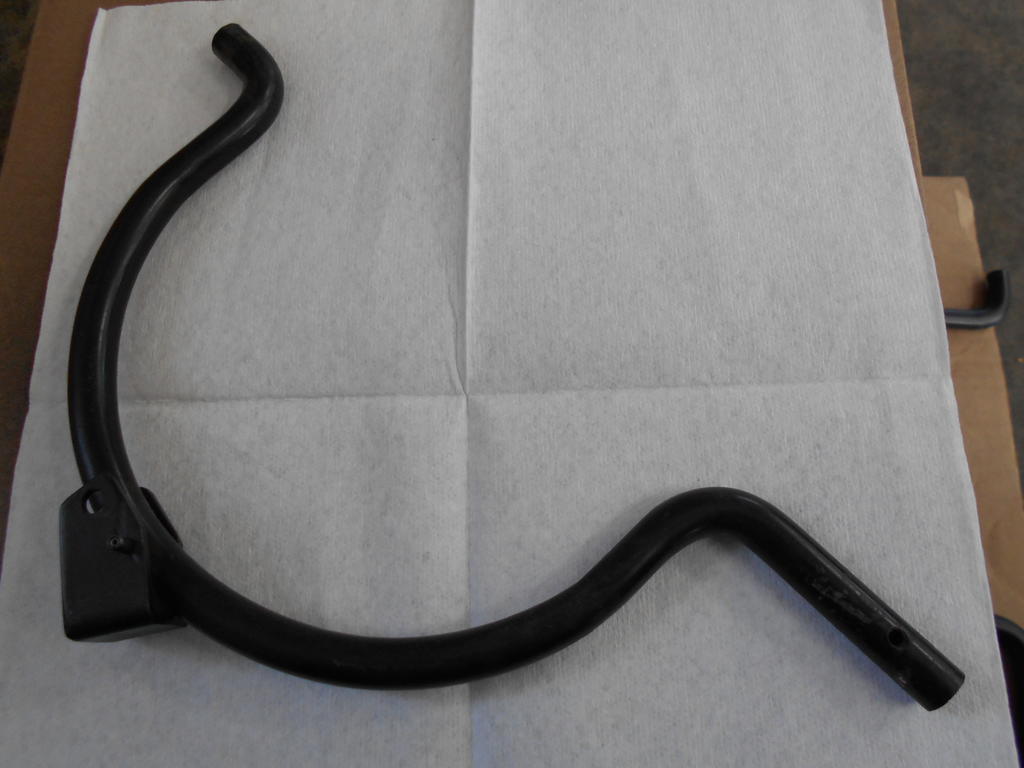

Swingaway clevis in open position.

5a4a787325546_Swingawayclevisinstalledinopenposition.JPG.fd5dd4359d2e122b838bebe01d055ad8.JPG

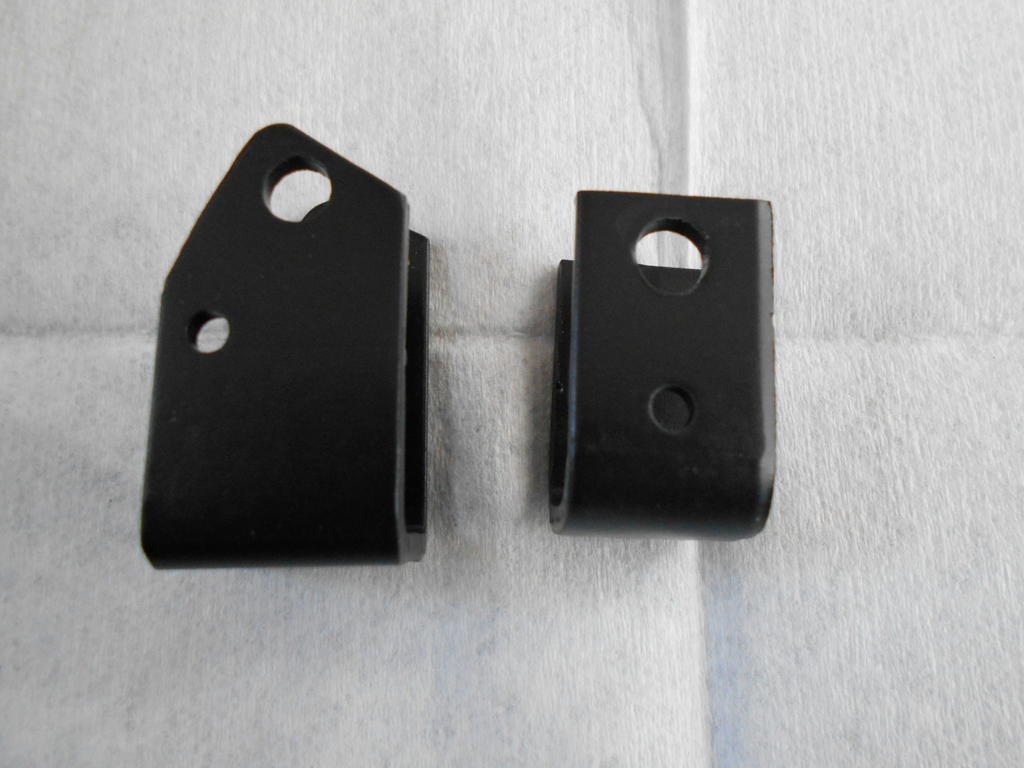

Both styles of clevises shown.

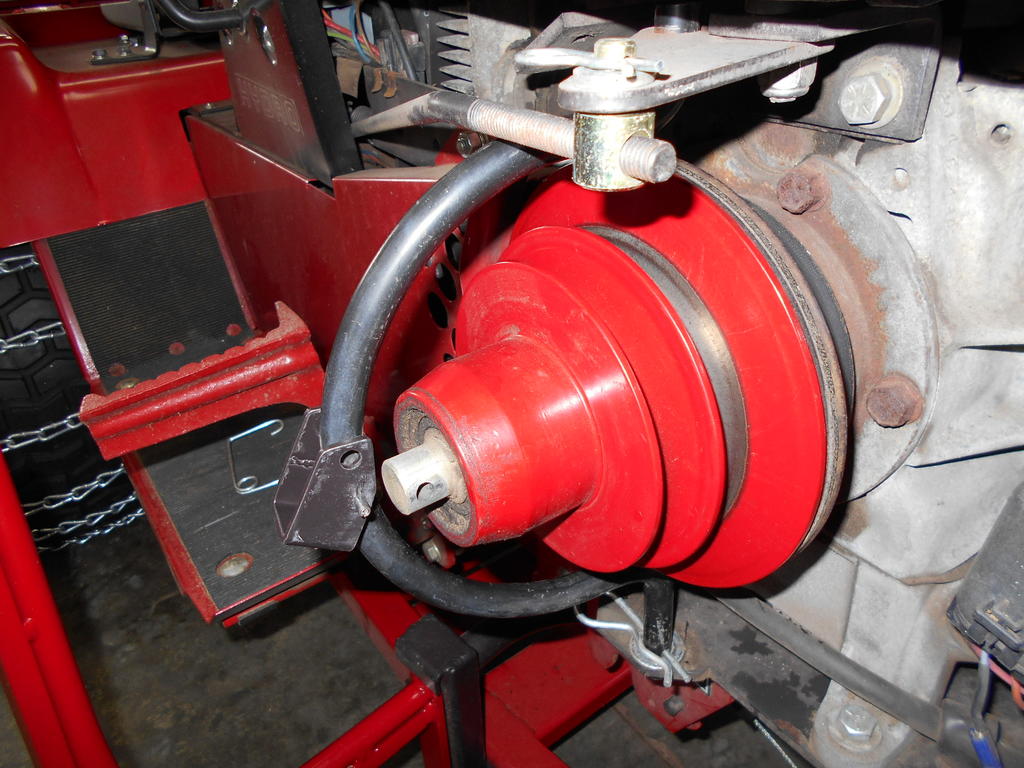

Swingaway clevis in open position partly swung to the side.

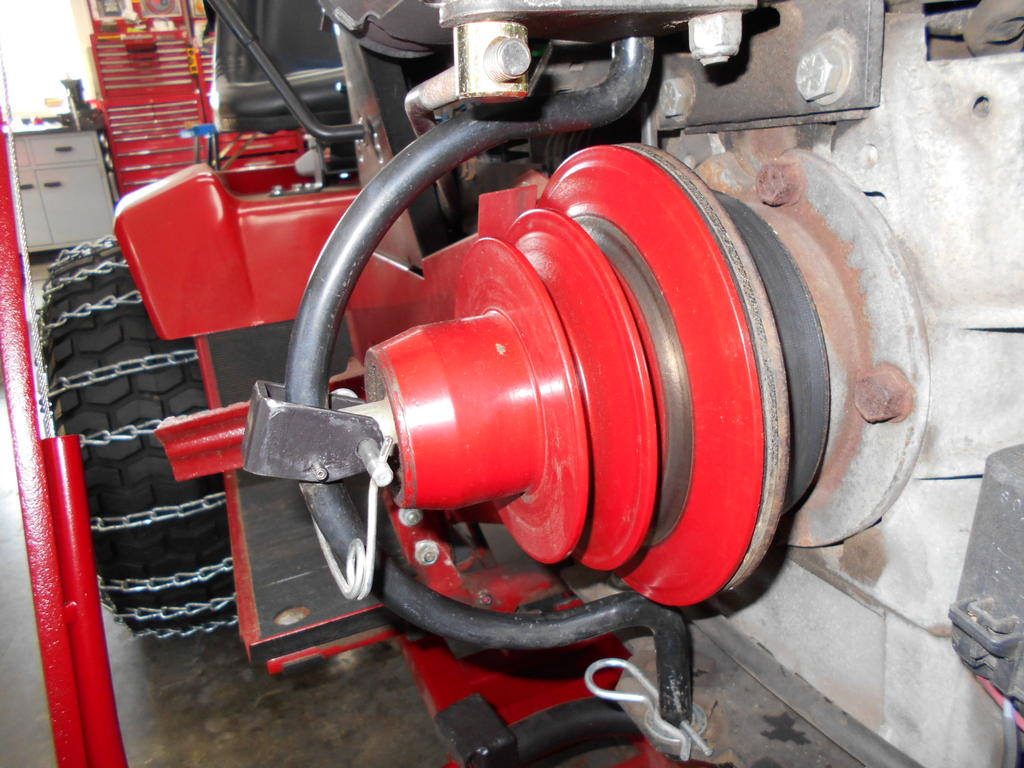

Complete unit with PTO disengaged.

5a4a783ecd960_ClevisinnormalpositionPTOdisengaged.JPG.ad43be8ac2e0c1fa0ac1d82a37af33c3.JPG



Complete unit with PTO engaged.

5a4a7848c43cc_ClevisinnormalpositionPTOengaged.JPG.2630e92396b32e85e62bb851febb1fc6.JPG



Here are the plans.



Wheel Horse swingaway PTO clevis.pdf



  • Like 4
  • Excellent 1

Share this post


Link to post
Share on other sites

Sarge

Big thanks - we love to make new parts , especially pre-designed with dimensions .



Sarge

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Adams94

Awesome!

Share this post


Link to post
Share on other sites

cleat

I forgot to mention the spring pin itself.



I used a 5/32 x 1-1/4" with a 3/32 x 1-1/4" nested inside to increase strength.



Small one is installed first into the larger one then the larger one is installed into clevis (this is right from the manufacturer of these pins).



Start the pin into the clevis then place over the hole in the rod and drive in until it has the same amount protruding from both sides.



Same hole is used in rod, no new hole was drilled.



I put a little piece of 3/4" wood in the open end of the clevis so it does not get bent down when installing spring pin.



Edited by cleat

Share this post


Link to post
Share on other sites

Adams94

Sounds like it should work!

Share this post


Link to post
Share on other sites

Tankman
On 1/1/2018 at 1:32 PM, Adams94 said:

Awesome!

:text-yeahthat: Going to make a couple!

Great idea, excellent project, thank you!

  • Like 1

Share this post


Link to post
Share on other sites

cleat

Those of you with eagle eyes probably noticed the different lower hole position in the rod itself.






I did some comparisons on my machines and found out why.



The early 520's used a motor mount plate that stayed flat where the PTO rod passes through and is held.



Later 520's have the plate slightly stepped up.



Rods are identical except for the hole being drilled further up around 1/2" on the later models.



Just something to watch out for if you replace or swap out this rod and or motor mount plate.



Cleat
