M. Weiner

Broken 103916 dipstick

Recommended Posts

M. Weiner

I'm in the middle of replacing my oil seals and inspecting the transmission on my new 79 C81. When I split the case I noticed my dipstick seems to be in 3 separate pieces, one of which I found after the picture. Can anyone measure the total length of their 103916 dipstick and tell me where they measured from, the high and the low marks? I will either weld up this one or find a junkyard one to cut down and etch. Anyone know how mine broke? I'd like to avoid this in the future.



Anything I need to look for while I have the case apart? All bearings look good.



https://photos.app.goo.gl/OQubpeewD6UaKxf62

Edited by M. Weiner

Share this post


Link to post
Share on other sites

Ed Kennell

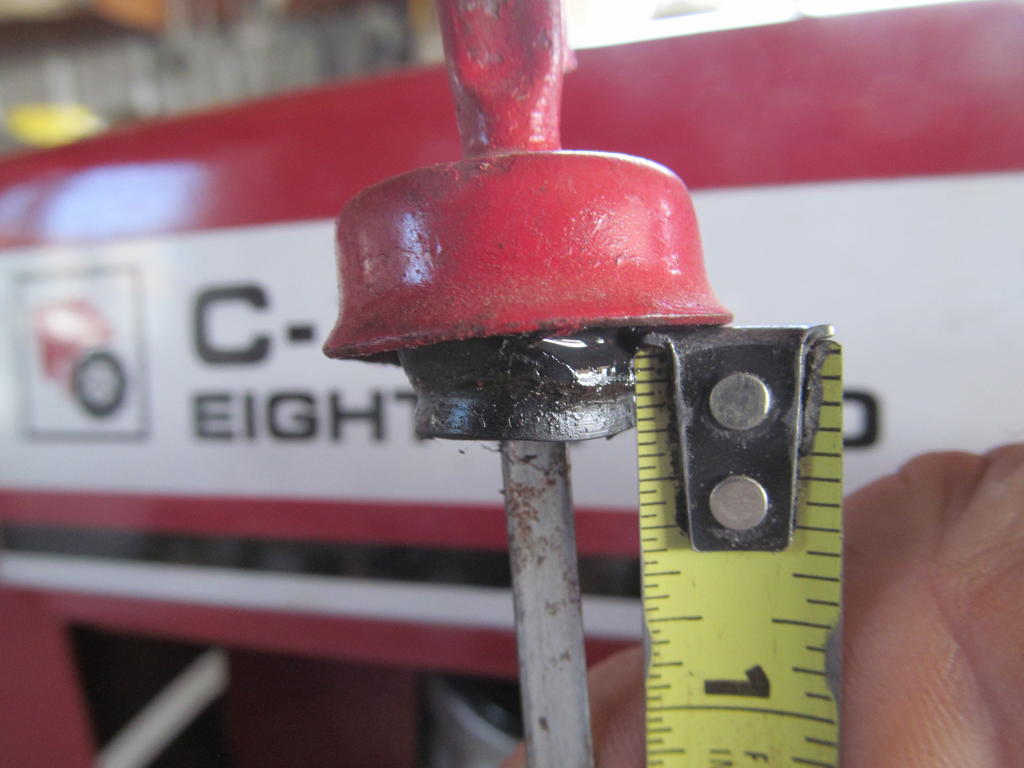

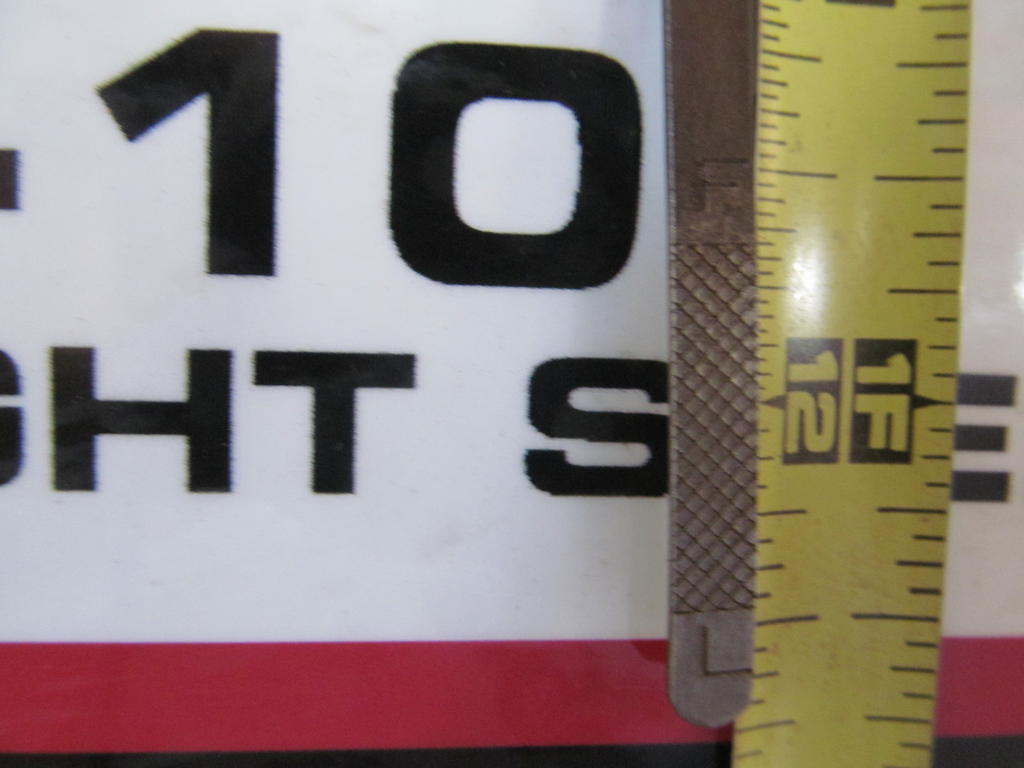

Here is my C-101 ...should be the same tranny.

IMG_8359.JPG.2e51661fef8565a0603ecb35a16d1e2e.JPGIMG_8360.JPG.ea157991f3f5aec18190123f890bc36b.JPG

  • Like 3
  • Excellent 1

Share this post


Link to post
Share on other sites


M. Weiner

I got a new one chopped up out of a spare Subaru dipstick I had and slapped my trans back together.



Thanks all!

  • Like 1

Share this post


Link to post
Share on other sites

Ed Kennell

Great, glad we could help.                    Oh, :text-welcomeconfetti: to the :rs:
