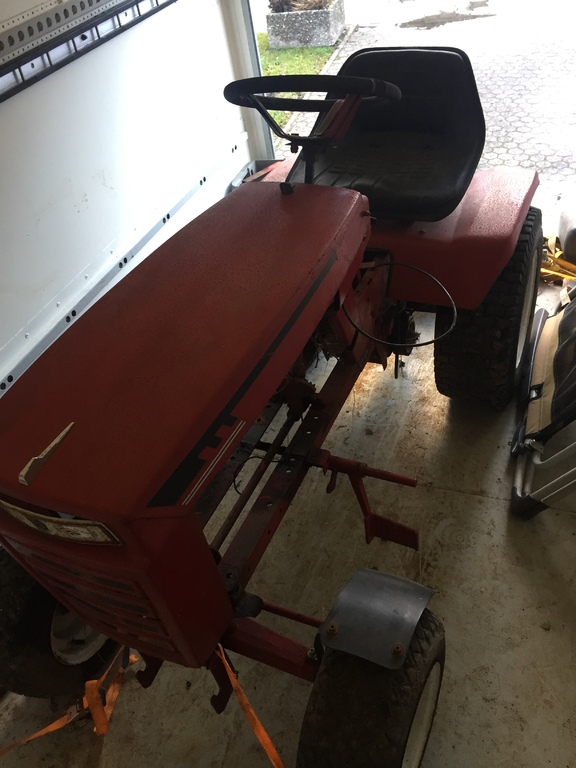

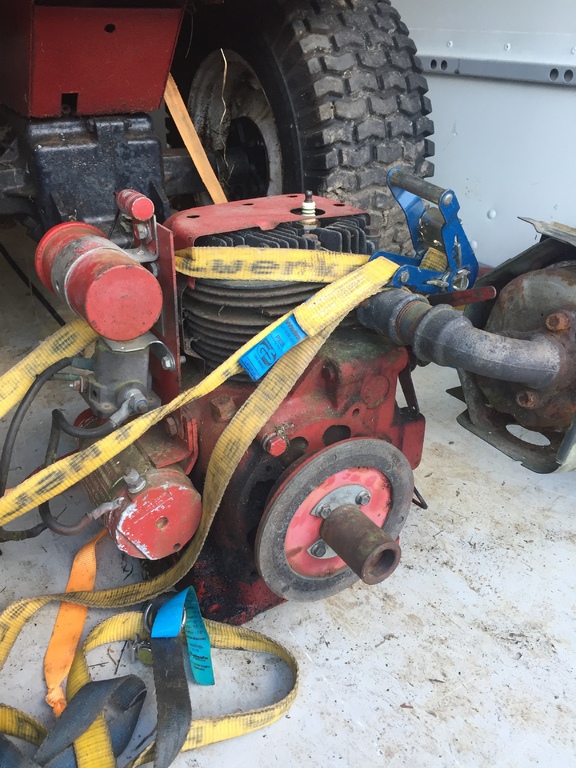

JeBa 2 #1 Posted June 2, 2017 Hello, I come from Germany,can help me someone in determining my Wheel Horse. 8 HP Kohler engine. I can not find a type plate or serial number Raider 8 ?? 2 Share this post Link to post Share on other sites
slammer302 2,156 #2 Posted June 2, 2017 Kinda looks like a B-80 or C-81 1 Share this post Link to post Share on other sites
JeBa 2 #3 Posted June 2, 2017 Thanks for the tip. There are some serial numbers on the frame?? Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,276 #4 Posted June 2, 2017 Welcome to the forum. Does your transmission have 3 forward speeds or 6 forward speeds with a hi and low range? Garry Share this post Link to post Share on other sites
JeBa 2 #5 Posted June 2, 2017 Had completely dismantled the wheelhorse. I will check the gear tomorrow and post photos. Share this post Link to post Share on other sites

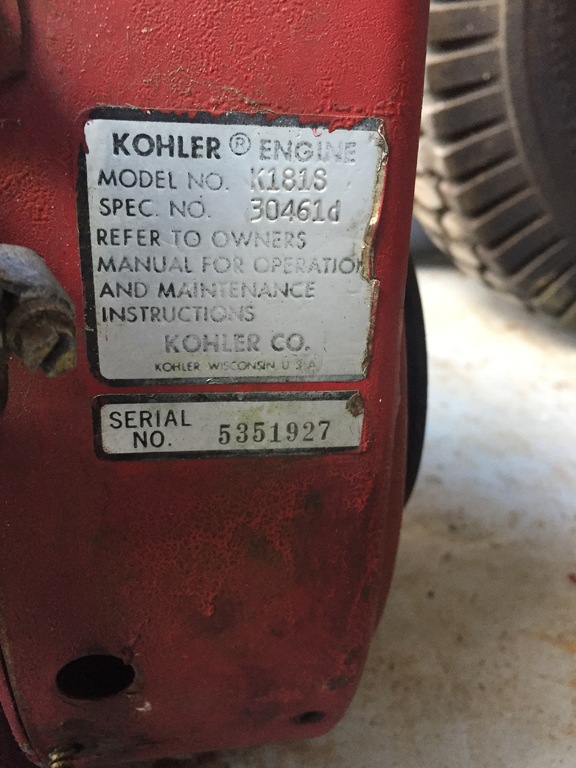

gwest_ca-(File Mod) 11,276 #6 Posted June 3, 2017 No serials numbers on the frame. Some have a plated riveted to the flat panel below the dash housing but up high. One must almost get down and look up to see it. The 5351927 Kohler serial number was made in 1973 so the tractor should be a 1973 or 1974 model. 1973 model 1-0120 or 1-0130 - 8 hp 4-speed but often named a Commando 800 for the European market (3 forward speeds and 1 reverse speed) 1974 model 1-0140 or 1-0145 - B-80 4-speed but often named a Commando 800 for the European market 1973 model 1-0370 - 8 hp 8-speed (3 forward speeds and 1 reverse speed x 2 for high and low range) Garry 2 Share this post Link to post Share on other sites

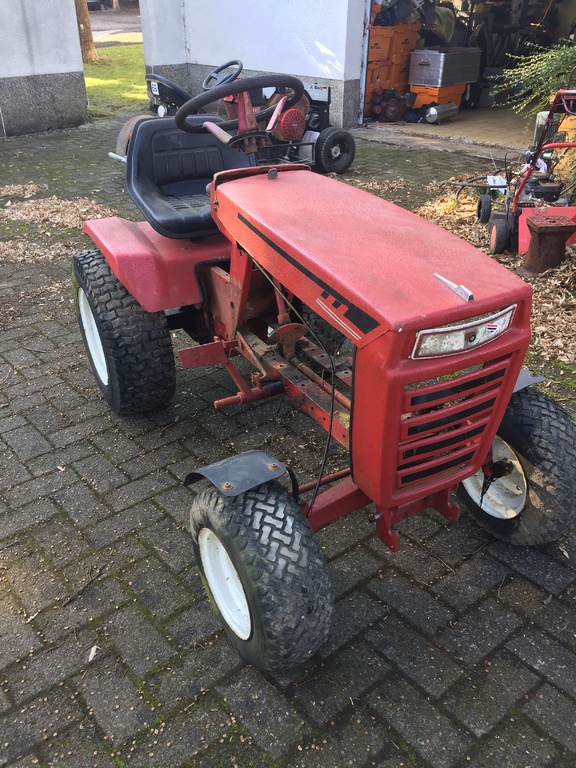

mikeeyre74 289 #7 Posted June 3, 2017 Those front wheel fenders are hysterical! 2 Share this post Link to post Share on other sites
JAinVA 4,629 #9 Posted June 3, 2017 Can't help with the horse but the front fenders rank right up there with the license plates on the UK machines.Not something we, in the US are used to seeing.Thanks for sharing.JAinVA Share this post Link to post Share on other sites
dells68 7,498 #10 Posted June 3, 2017 Maybe I'm weird, ok I AM weird, but I actually kind of like the front fenders. They remind me of newer model 4x4 farm tractors. 1 Share this post Link to post Share on other sites

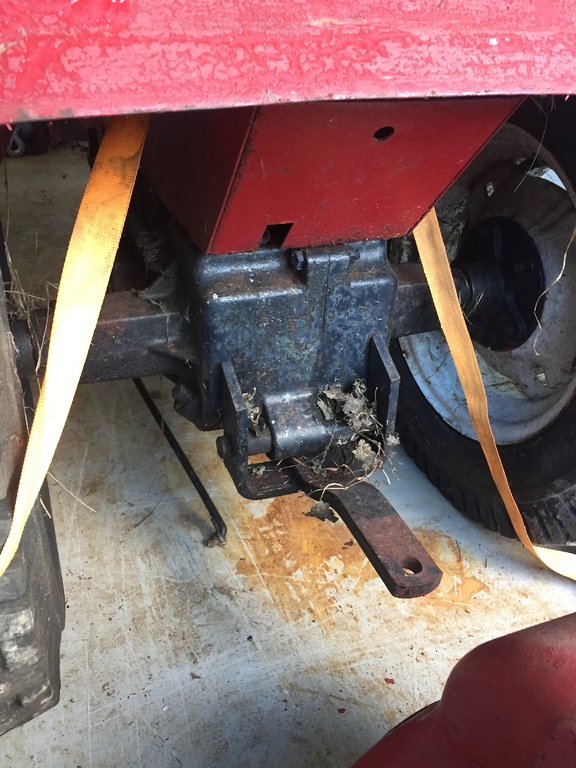

JeBa 2 #11 Posted June 3, 2017 Thanks to all who try to help me. The gearbox is removed and is very difficult to operate. I can not determine the number of forward speed and reverse speed. On the transmission are left and right numbers. There is only one lever available for switching. Numbers in transmission 6941 J18 other side K19 9900 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,276 #12 Posted June 3, 2017 The 4-speed would have one shift lever. The 8-speed would have 2 shift levers. 1973 1974 Best guess. These models used the K181S-30461d engine. Garry 2 Share this post Link to post Share on other sites
JeBa 2 #13 Posted June 3, 2017 The comando have not very short engine hood. My hood is 84cm long, this is the longest of our wheelhorse we have. Share this post Link to post Share on other sites
Aldon 4,828 #14 Posted June 3, 2017 16 hours ago, dells68 said: Maybe I'm weird, ok I AM weird, but I actually kind of like the front fenders. They remind me of newer model 4x4 farm tractors. Then I am as well. I like the look Share this post Link to post Share on other sites
