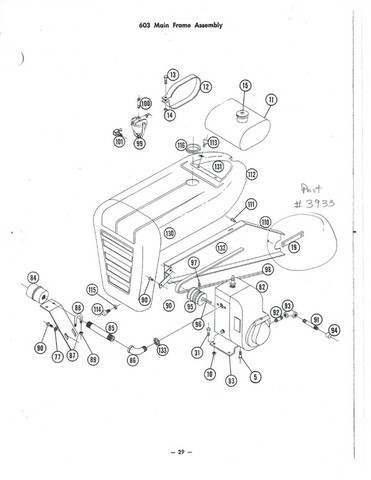

Lane Ranger 11,678 #1 Posted June 7, 2016 (edited) Does anyone know what the PART # 3933 link was used for on the 603, 654 and 704 tractors (shown in the Wheel Horse manuals at the end of the belt guard) ? Edited June 7, 2016 by Lane Ranger Share this post Link to post Share on other sites

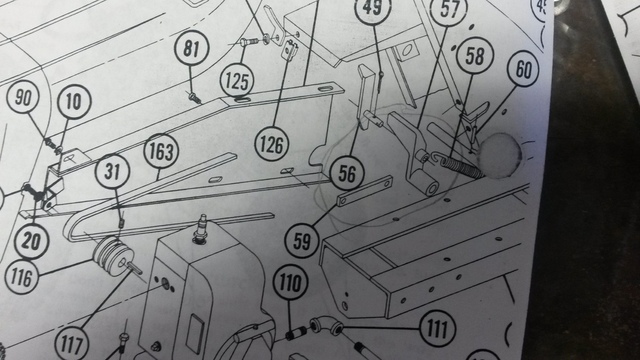

squonk 44,870 #2 Posted June 7, 2016 (edited) Lane I believe it's the link that connects the PTO pedal to the PTO idler pulley. In the parts manual I have it shows it right next to the pedal. #59 in this pic Edited June 7, 2016 by squonk 2 Share this post Link to post Share on other sites
Racinbob 12,430 #3 Posted June 7, 2016 (edited) This one is a couple years newer and became #5385. Edited June 7, 2016 by Racinbob 2 Share this post Link to post Share on other sites
Lane Ranger 11,678 #4 Posted June 7, 2016 Ok Thanks Bob - I just could not get this from the manual drawing into my head ! Share this post Link to post Share on other sites

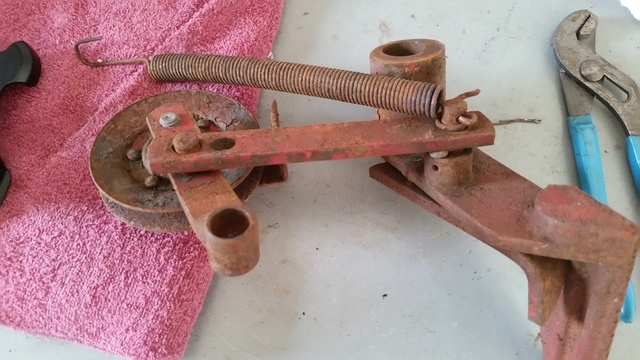

Racinbob 12,430 #5 Posted June 7, 2016 No problem Lane. It can be confusing in the drawings. That one is for my 500 Special and is now a pretty red. The arm with the idler pulley should be turned 180 degrees. 1 Share this post Link to post Share on other sites
DBlackston 323 #6 Posted October 26 Racinbob, I have these same parts in my leftovers from disassembling my 704. Unfortunately that was 3 or so years ago when I disassembled this machine. I too wondered what they were when I stumbled across this thread. What are these items actually used for? Aside from t#56 and #57, the pedal and brake lever. Assuming they are an idler for a mower deck belt or something like that? I don't see the Idler, bolt, or arm on the drawing so I would assume those would have come with something driven? On 6/7/2016 at 2:19 PM, Racinbob said: This one is a couple years newer and became #5385. 1 Share this post Link to post Share on other sites
adsm08 3,869 #7 Posted October 26 14 minutes ago, DBlackston said: Racinbob, I have these same parts in my leftovers from disassembling my 704. Unfortunately that was 3 or so years ago when I disassembled this machine. I too wondered what they were when I stumbled across this thread. What are these items actually used for? Aside from t#56 and #57, the pedal and brake lever. Assuming they are an idler for a mower deck belt or something like that? I don't see the Idler, bolt, or arm on the drawing so I would assume those would have come with something driven? It's the PTO belt tensioner assembly. The pedal locks forward on a roll-pin through the arm and lets the deck belt go slack. You push the pedal in, flip the small arm, and let the pedal out, which draws the belt tight. Share this post Link to post Share on other sites

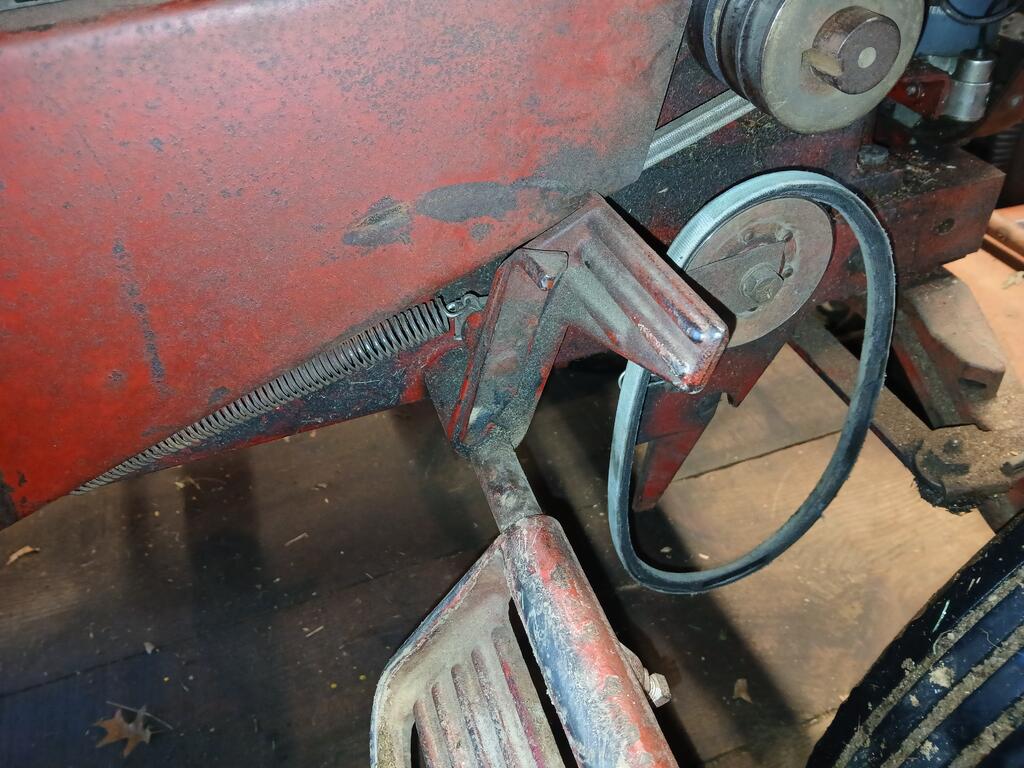

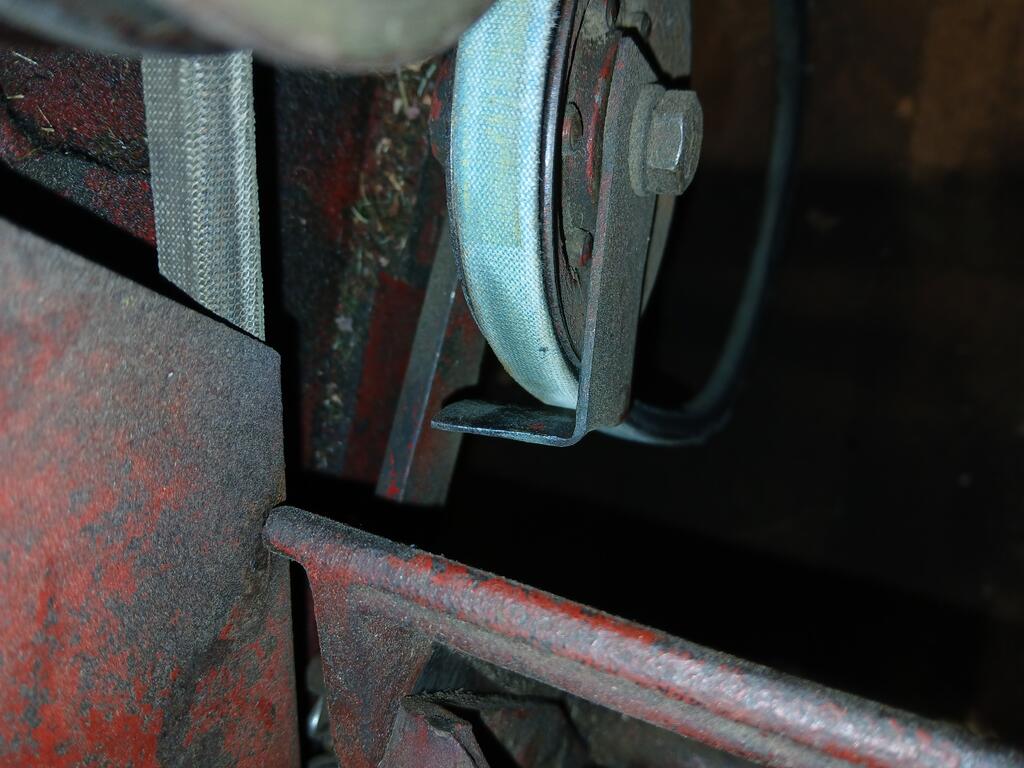

702854boy 385 #8 Posted October 26 This is what it looks like on a tractor Share this post Link to post Share on other sites

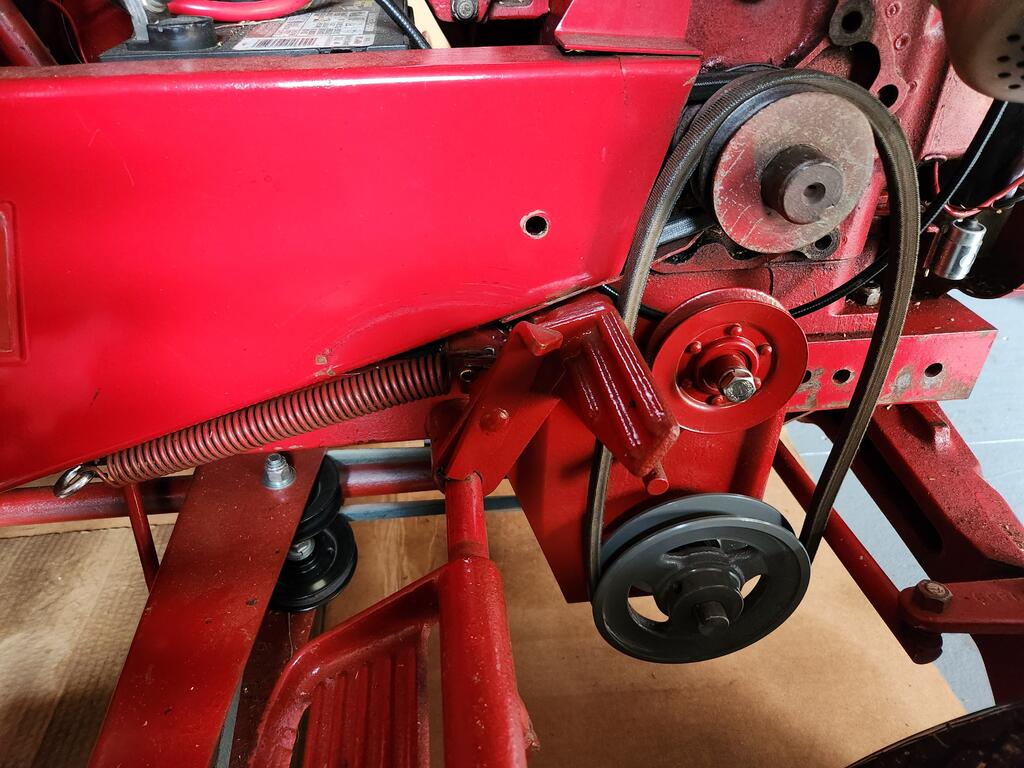

Racinbob 12,430 #9 Posted October 26 Here it is mounted to operate a sickle bar mower. The idler is the v-pulley in the picture. It works the same way for a belly mower but keep in mind that the plates bolted to the frame are different. The belly mower used the early version of the tach-o-matic mount. I'm sure somebody here has a picture of that. 1 Share this post Link to post Share on other sites

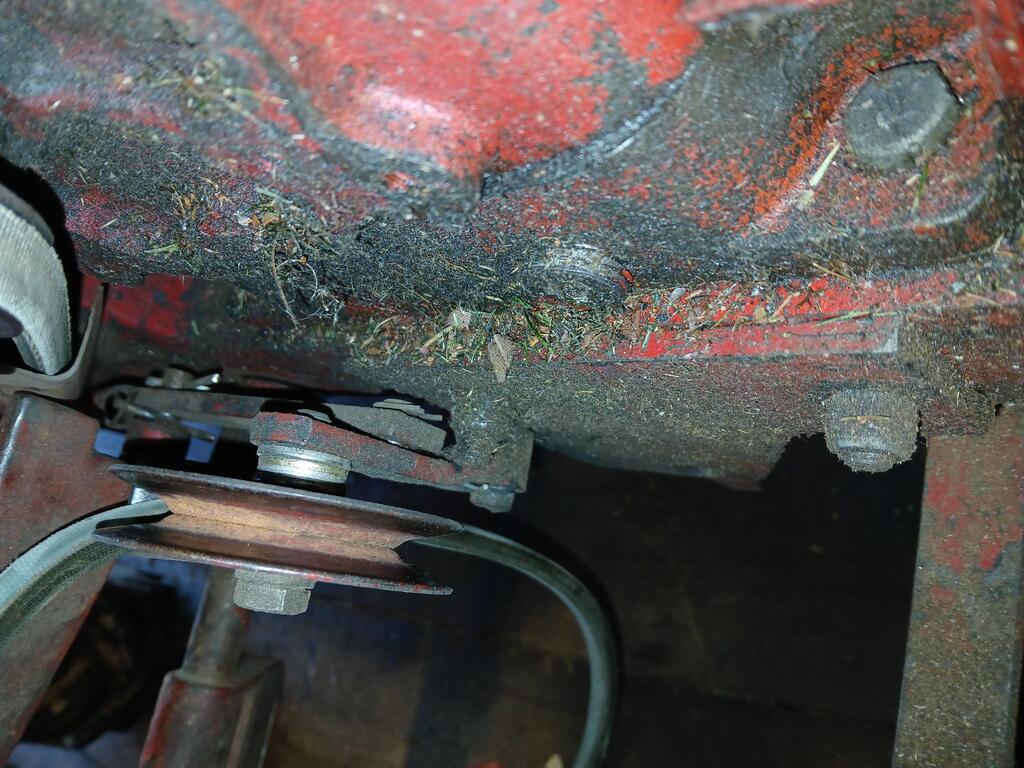

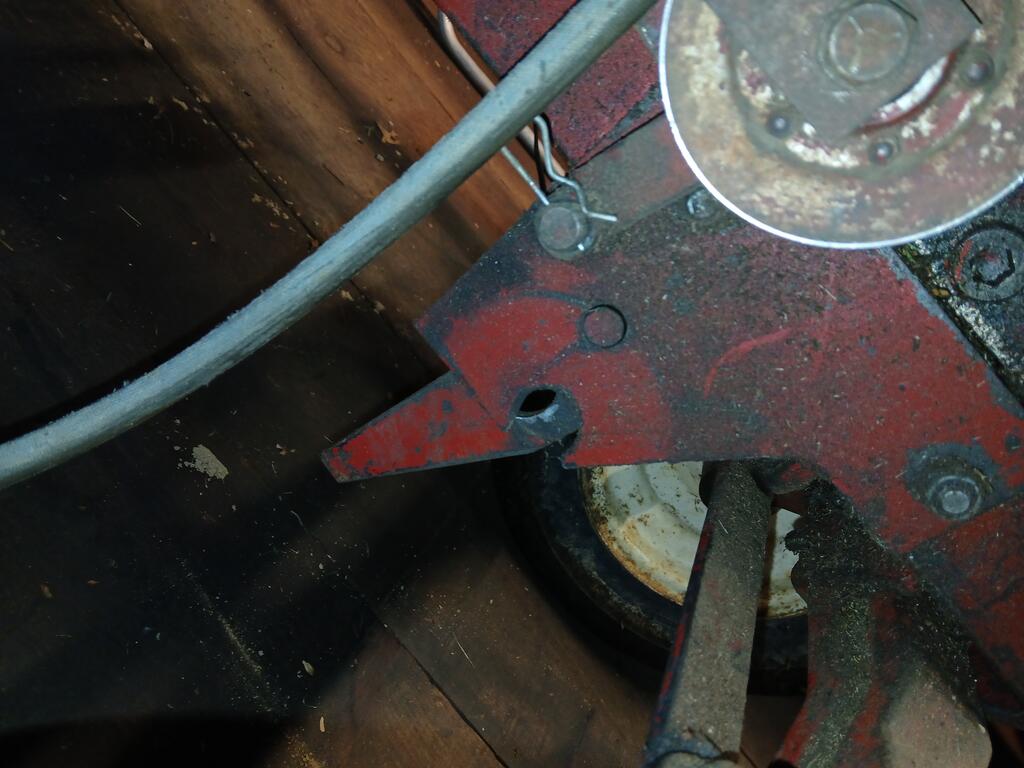

702854boy 385 #10 Posted October 26 6 minutes ago, Racinbob said: I'm sure somebody here has a picture of that. I guess that someone would be me 1 Share this post Link to post Share on other sites

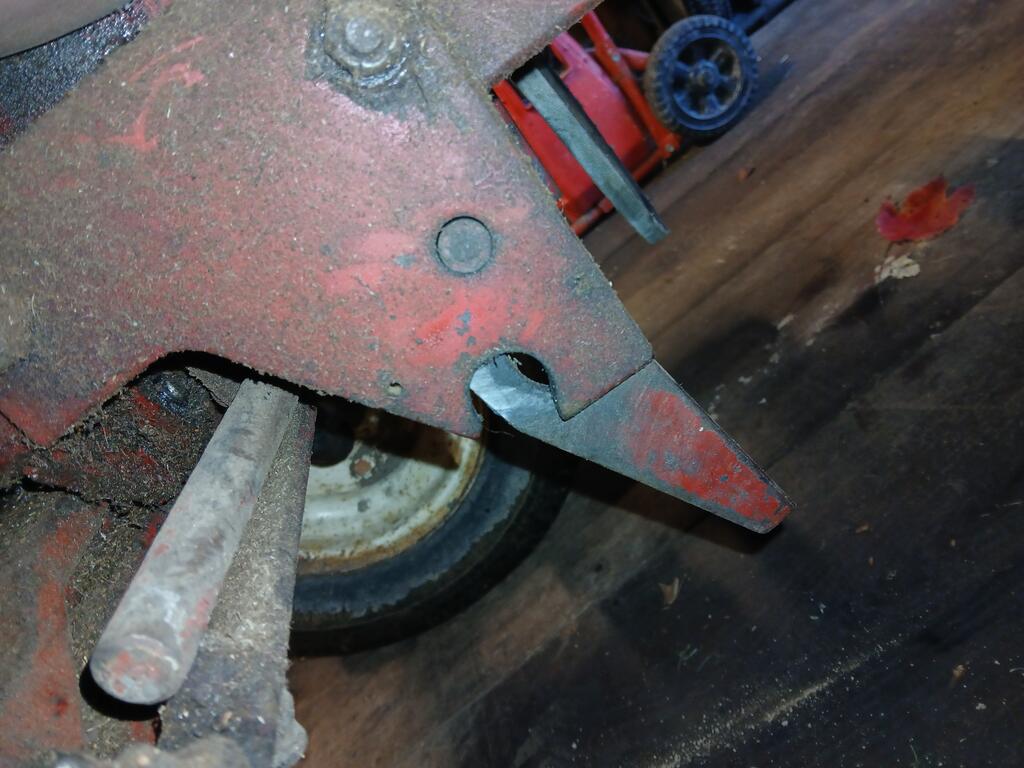

Racinbob 12,430 #11 Posted October 26 Yupper dupper! The second picture shows where the idler arm attachs. 1 Share this post Link to post Share on other sites
DBlackston 323 #12 Posted October 26 Thank you all for the help! This answered a lot of questions for me! 1 Share this post Link to post Share on other sites
702854boy 385 #13 Posted October 26 You're welcome 2 Share this post Link to post Share on other sites
Retired Wrencher 6,170 #14 Posted October 28 (edited) On 6/7/2016 at 7:32 PM, Lane Ranger said: Ok Thanks Bob - I just could not get this from the manual drawing into my head ! Lane isn’t it fun getting old sometimes it takes a while to figure out what goes where but ,we have all day to figure it out. Edited October 28 by Retired Wrencher 1 Share this post Link to post Share on other sites
