stevasaurus

SO, YOU WANT TO SAVE THAT WH 3 PIECE TRANNY

Recommended Posts

proama

I wish I was steves neighbor  !  you rock! I feel like I know this transmission personally ! this will be a big help as I am trying to get hubs off to rebuild my transmission on my 401 suburban

  • Like 2

Share this post


Link to post
Share on other sites

Tractorhead

Hi,

read the whole Story.

my deepest Respect to all who are involved.



Fantastic work at all, no doubt about it.



About E- Tank i doing somevtry's in the past, but never tried to remove Rust.

very impressive also!



Thanks for Sharing all this Info



Stefan

  • Like 1

Share this post


Link to post
Share on other sites

stevasaurus

Let's see, it is August 11, 2023.  I just re-read this whole thread.  It brought back a lot of good memories.  It still reads well and has a fair amount of humor.  I love that we did this thread.  :USA:  :occasion-xmas:

  • Like 1

Share this post


Link to post
Share on other sites

TheGrinch

I just finished one for my friend Tim (VT Tim) thanks to Steve and others info here it was a breeze except for a couple of issues.

The pictures of the bearing installation in an early post was wrong and of course I installed the bearings in the wrong places so I ruined them getting them back out with the welder lol.

 The original early seal style axle tubes are quite a bit longer than the later ones with the outer type axle seal. I replaced his and had to trim them quite a bit, I forget how much.

After about 10 beers I got all of the gears in correctly.

Ground Bearing R12https://www.mcmaster.com/60355K185/
Un-ground Bearinghttps://www.mcmaster.com/6383K49/
Outer Tube Bushingshttps://www.mcmaster.com/6391K726/

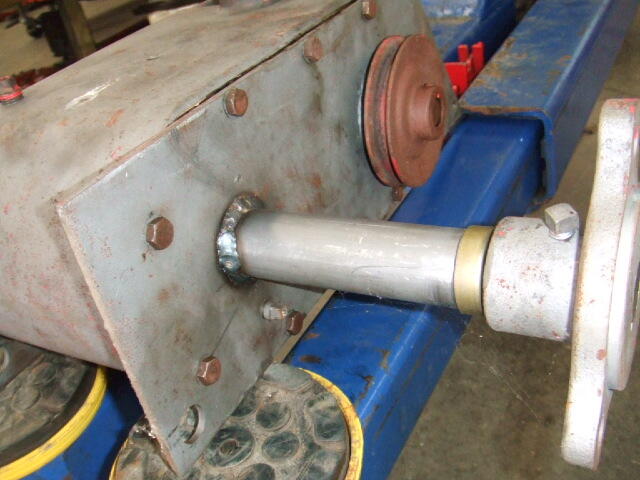

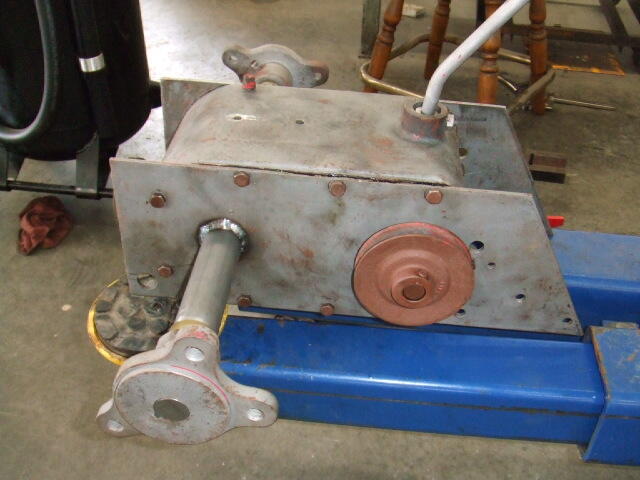

DSCF1351.JPG.ea21f315cc9a5e394e349bc8d3850cd4.JPGDSCF1350.JPG.e75680564f61c5a9865e7e0e69088330.JPG





Share this post


Link to post
Share on other sites

Keaton

how did you get the hubs off the trnasmission i almost got one

Share this post


Link to post
Share on other sites

Handy Don
Posted (edited)
19 hours ago, Keaton said:

how did you get the hubs off the trnasmission i almost got one

Do a search of this site for threads about “pulling hubs” or “hub puller” and you’ll find a lot of information

Edited by Handy Don

Share this post


Link to post
Share on other sites

WHX??

Get a bearing collar on back of them. DO NOT pull by the ears. Ask me how I know.


Share this post


Link to post
Share on other sites
