953 nut

Wiki:953

Recommended Posts

953 nut

                      Specifications

Length                                                                         69"           Engine                       Kohler K241S        46135A

Wheelbase                                                                  47"           Transmission             Wheel Horse             5045

Width                                                                        36.5"           Engine displacement              23.9 Cubic Inches

Height                                                                         42"            Engine Oil Capacity                               2 Quarts

Net Weight                                                           656 lbs.            Air Cleaner                      Novo Updraft Oil Filled

Engine    (4 cycle, single cylinder air cooled)      9.6 H.P.            Spark Plug               Champion H-10   Gap .025"

Fuel Capacity                                                     2.75 Gal.            Ignition points gap                                       .020"

Tires, front                4.00 X 8" Pneumatic (16" diameter)

Tires, Rear              6.40X 15" Pneumatic (27" diameter)

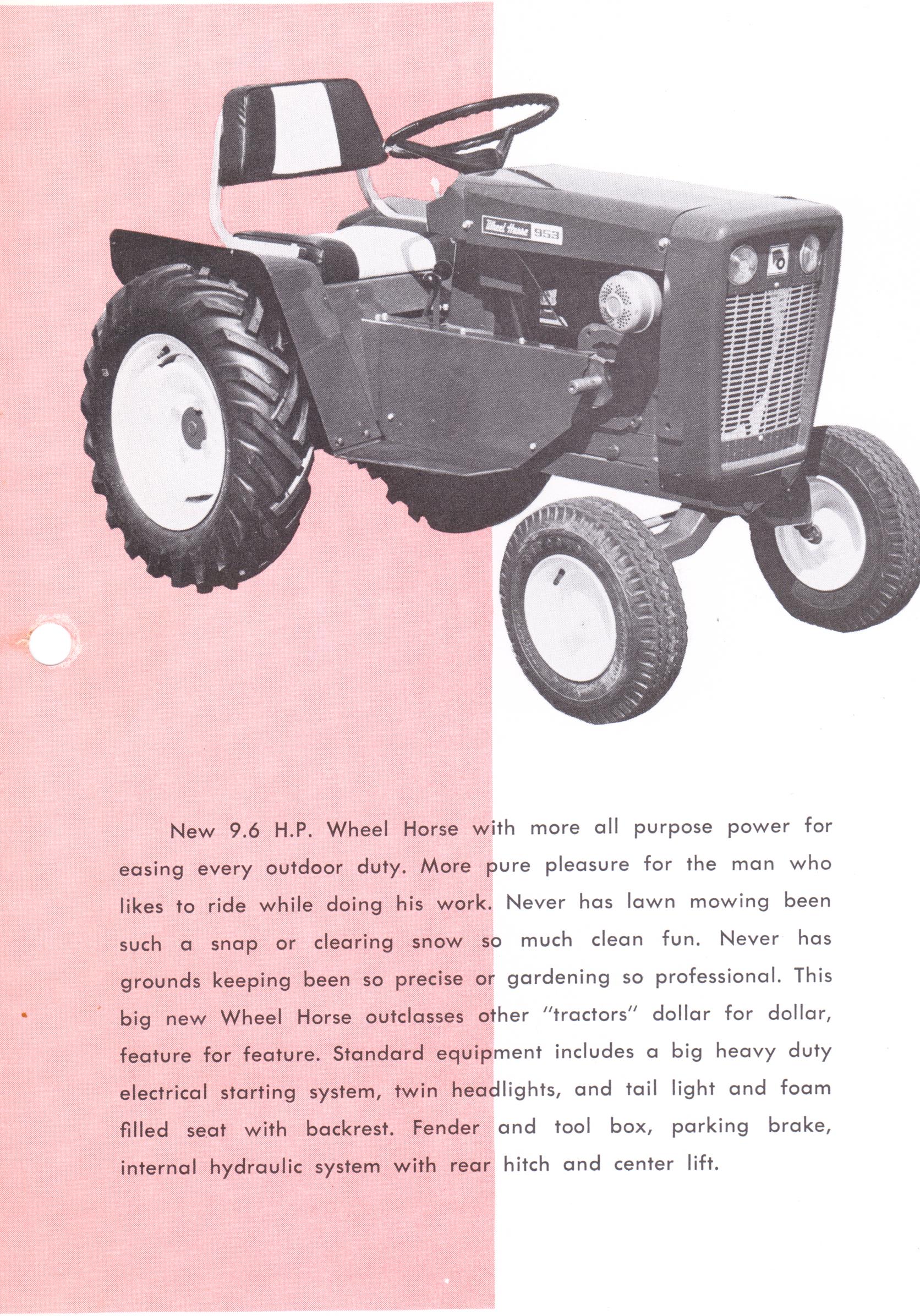

566619e3ba686_953brochure.thumb.jpeg.33e

Early production 953s can be distinguished by four primary features. The headlights are recessed behind the grill rather than protruding from it, they use a "Ross" steering gear rather than the later "Fan Gear", Have Serial Numbers beginning with "62" and the steering wheel has a diamond shaped center cap rather than a round one. It is thought that only about one thousand early models were produced though no actual production numbers are available.

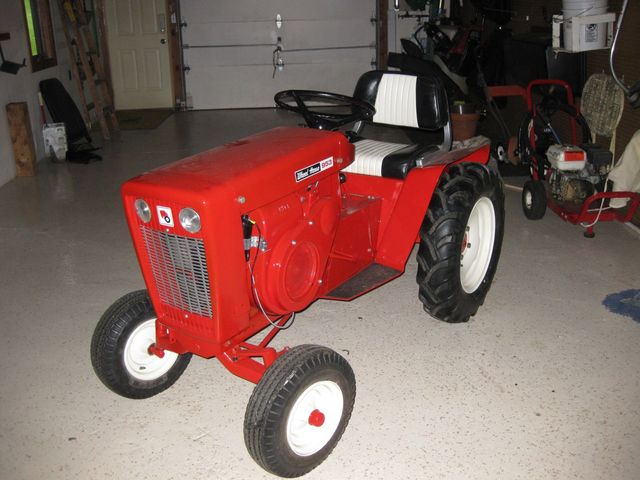

953.thumb.jpg.a0053ad3dd00ac13debeffdf60

5664d7a8bfffc_953survivor.JPG.7db809cd80

5664e032c5d41_953atWHToroMuseum.jpg.0796

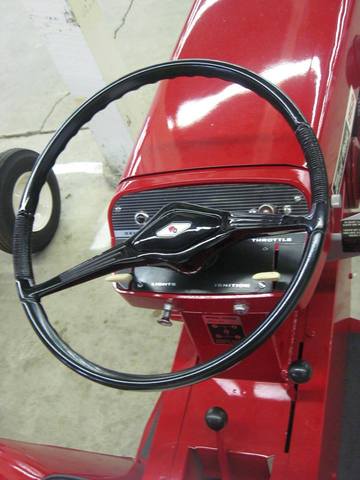

Early 953 Steering Wheel.

5664e3cb8722c_early953steeringwheel.thum

Ross Steering Box

5664e7f52e2f3_RossSteeringBox.jpg.580653


View full wiki

  • Like 2
  • Excellent 3

Share this post


Link to post
Share on other sites

oliver2-44

Per recent request, The Starter Generator light uses a #57 bulb

  • Like 1

Share this post


Link to post
Share on other sites

charging10

love those 953s, 1054s

Share this post


Link to post
Share on other sites

Maxwell-8

those early steeringwheels are a beauty!

Thanks for the info!:handgestures-thumbupright:
