c 121 starts but turns off when ignition switch is on run

Recommended Posts

jgsmith16

I just re-wired my c-121 and followed the wiring diagram in the manual.  I am having an issue where the engine will stop running when the ignition switch is turned to run.  I must have some wire switched but can't figure it out.  Any help would be very helpful.



Jeff

Share this post


Link to post
Share on other sites

nylyon

When is it running just when the key is turned to start, then when released the engine stops?

Share this post


Link to post
Share on other sites

rmaynard

When you rewired it, did you replace the ignition switch?

Share this post


Link to post
Share on other sites

jgsmith16

Nylyon,

Yes runs in start. When I release it shuts off.

Rmaynard,

Yes I did replace the switch, but it did the same thing with the old switch.

Thanks for the help.

Share this post


Link to post
Share on other sites

wallfish

:WRS:

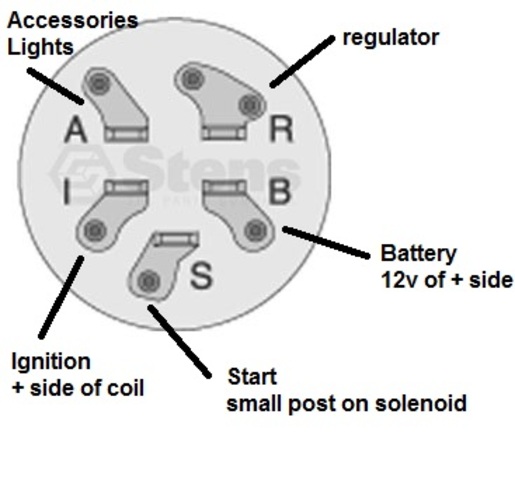

Here's how a battery ignition switch should be connected. A magnito ignition switch can ground the wire to the coil. Check your switch for the little letters next to the posts and not just the position of them on the switch

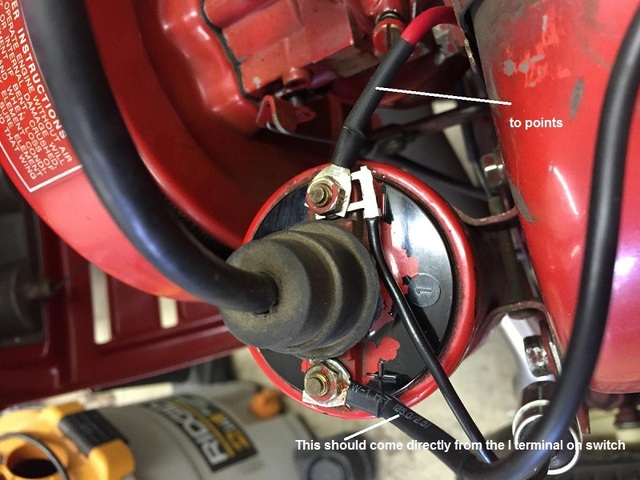

Something seems funny since it's supplying 12v to the coil when starting. Maybe some more info on the type of engine and the new wiring could help figure out what is going on.




Edited by wallfish

Share this post


Link to post
Share on other sites

jgsmith16

I will take some pictures tonight and post them.

Thank!

Share this post


Link to post
Share on other sites

jgsmith16

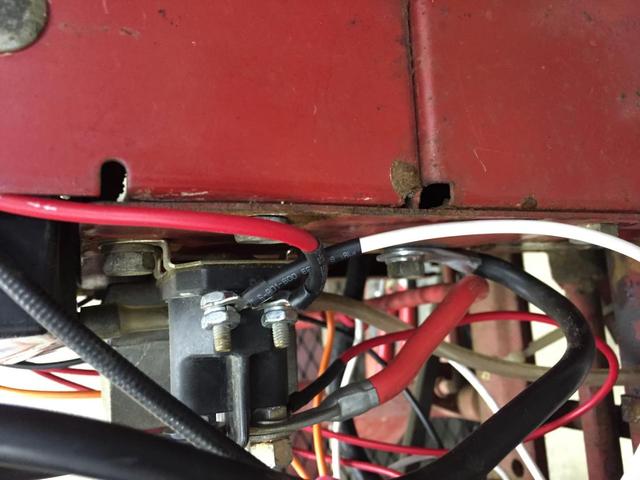

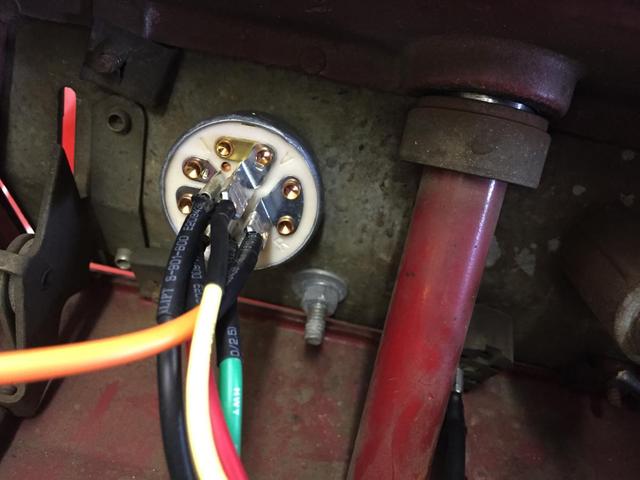

Here are some picture. Another weird part is I have no power on the accessory terminal.

Thanks again!

post-15012-0-32932500-1429141455_thumb.j

post-15012-0-50670200-1429141475_thumb.j

post-15012-0-36803900-1429141512_thumb.j

Share this post


Link to post
Share on other sites

jgsmith16

Engine is a K301

Share this post


Link to post
Share on other sites

wallfish

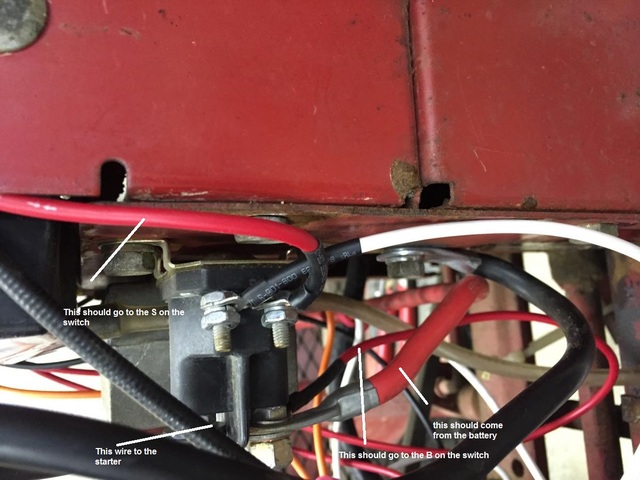

Is that white wire from the A terminal of the switch going to the little post on the solenoid? If so, disconnect it.



Only one small post on the solenoid will trigger it when 12v + is supplied. Make sure that small post is connected to the S of the switch. The other small post is not used at all.

Where does that green wire to the B (battery) on the switch come from?







  • Like 2

Share this post


Link to post
Share on other sites

jgsmith16

John that did the trick.  I had the green wire going to the ammeter.  I would like to connect the ammeter and the cigarette light.  Thanks again for the help!

Share this post


Link to post
Share on other sites

wallfish

Nice!

The meter can be connected in between the regulator and the switch.

Never had one with the cig lighter so not totally sure if that should connect to the A terminamal or not. As a guess, that's where I would connect it. Did your wire diagram show where it might be connected?

Probably not a bad idea to have a separate fuse inline for it no matter where it's connected.

Edited by wallfish
