Photos/sanity-check of 520h (or similar) terminal connections for tacho & gas gauges needed

[darren 49]

My restoration of 'George' the unloved 520h is 99% complete but I've realised the photos I took of the terminal connections for the tacho and gas gauges aren't too clear, so I need to check them.



It's a big ask because to take the pictures, you'd probably need to remove the battery (perhaps not to confirm with a flashlight..) you'd really be helping me out!



I *think*, looking at the back of the gauges, it should be as follows;



Tacho

(lamp)

a      b

   c



where

a is 1x grey (tacho feed)

b is is 2x black (earth)

c is 2x pink (+ve)



Gas

(lamp)

    x

y    z



where

x is two lots of 2x black (earth)

y is 1x brown (fuel sender)

z is 2x pink (+ve) and 2x green (lamps +ve)



Thanks if you can help.

Edited October 7, 2014 by darren

[km3h 543]

I have a complete harness in the shop connected to the gages. I will take a few photos tomorrow and post them for you.

[Geno 1,929]

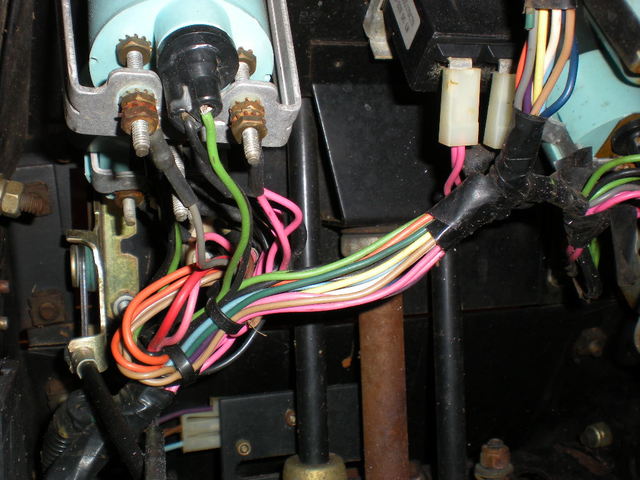

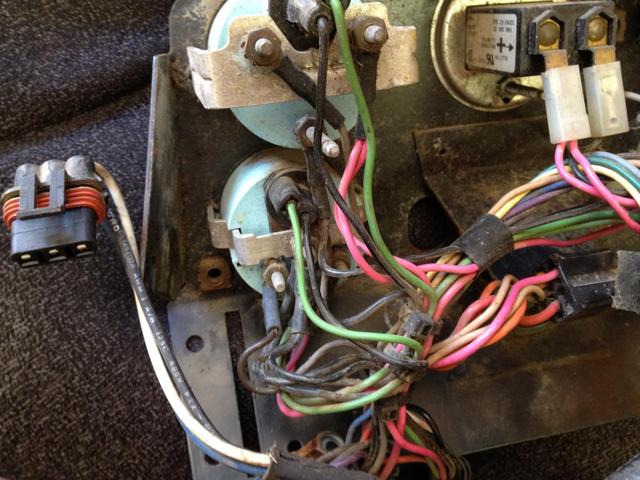

Can't get a good pick of the fuel, but the tach came out ok.







[darren 49]

Thanks Nick, I owe you!



Thanks too Geno, for the shot of the taco, that's great. Much appreciated

Edited October 8, 2014 by darren

[km3h 543]

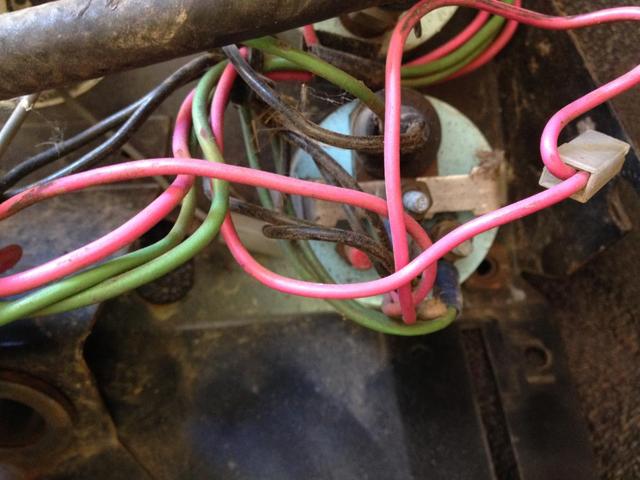

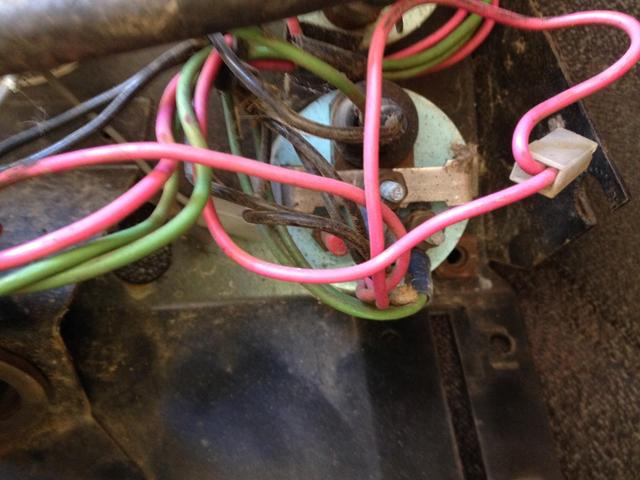

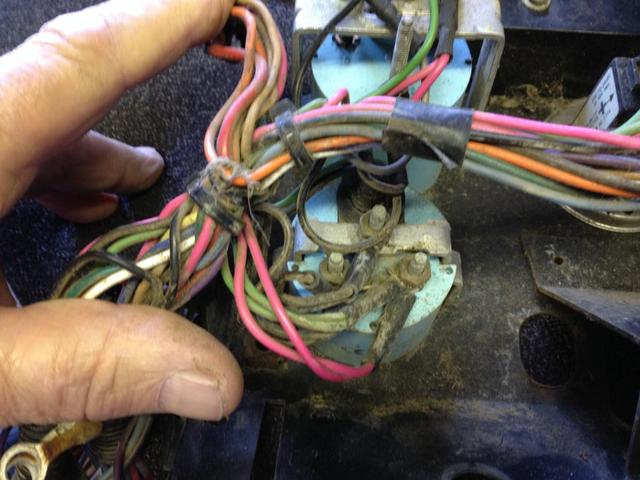

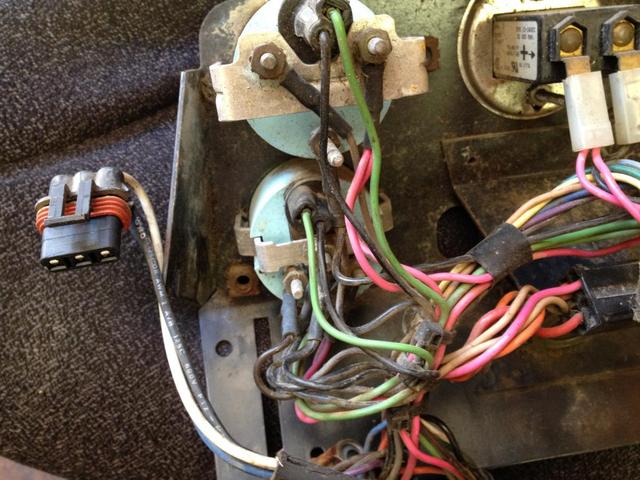

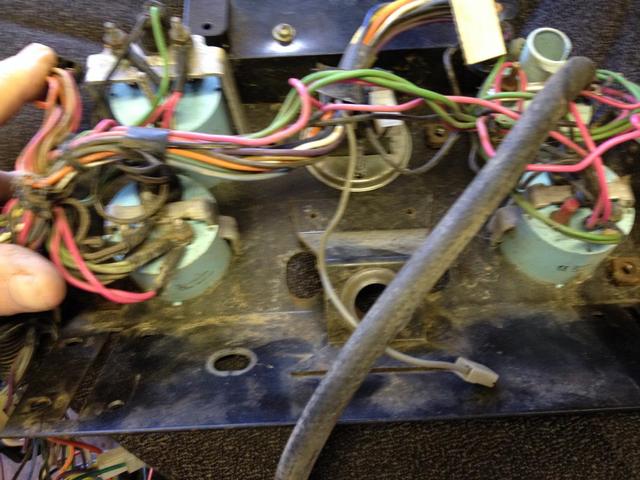

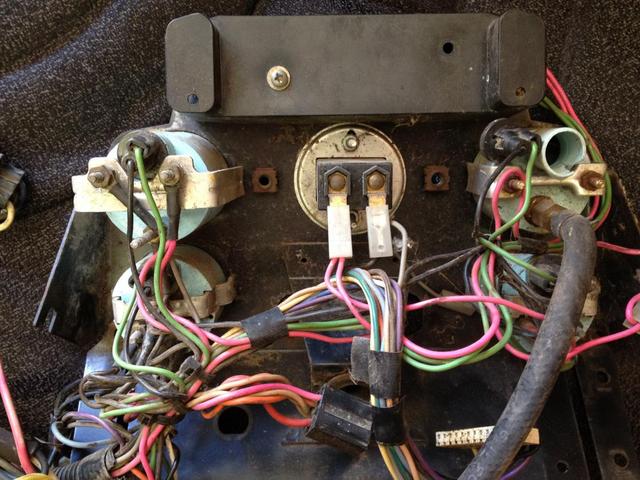

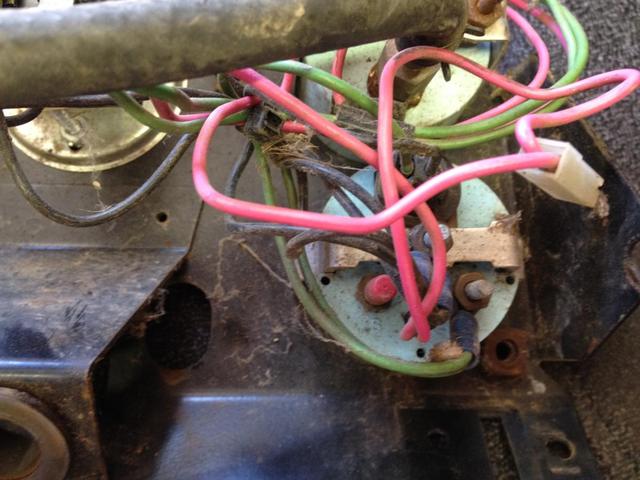

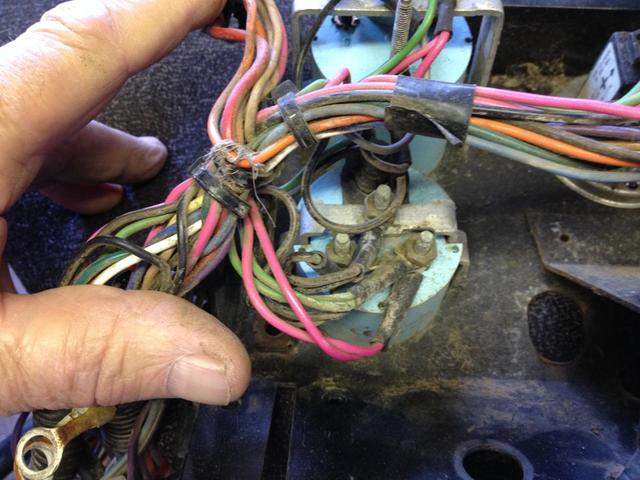

I hope this helps. I tried to get as many angles as I could, If you look closely you will be able to determine the orientation of the gages. I have not worked on this tractor as yet but I am now sure that if I have to remove any of these wires, I will not only take photos, but will label them. What a nightmare. If you need more photos just let me know. I have a meeting tonight but can do more tomorrow.

[Geno 1,929]

Awesome Nick, you rock.

[km3h 543]

Geno

It's the nature of this forum. It gets to you and makes you want to help any way you can. I have received so much help from others here I just want to return the favor any way I can. It's the same for everyone else here. What a great bunch of guys and girls.

[darren 49]

Nick, you're a a saint. Thank you ever so much, that's just what I needed. I really appreciate the time and trouble you've gone to for me. Armed with this information I should be able to get the electrics finished off and George finished before the winter season sets in; there's no heating in the shed!



Your comments I think epitomise the majority of members attitude on here. it really is an inclusive, knowledgable and helpful community!

[km3h 543]

Darren, do not hesitate to ask for more if these are not clear enough for you. I bought this harness including all the gages so I would not have to splice the butcher job that was done to my 520. So it absolutely no trouble to go back out and take more photos.
