Magnum 12 with Walbro carb

[persof 14]

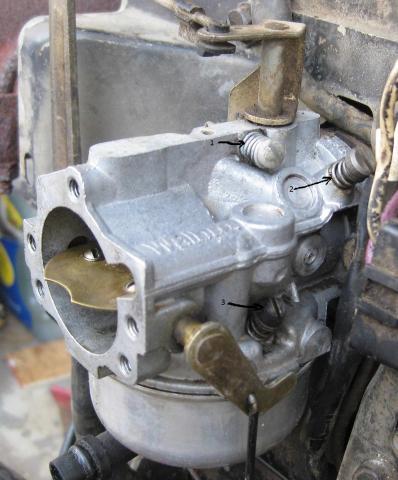

I have a 312-8 with a Kohler magnum 12HP engine that uses a Walbro carburetor.  Please see my attached pic and let me know which is the high-speed needle and which is the low-speed needle.  #1 on obviously the idle speed.  The Kohler manual only shows the somewhat different Kohler carb.



Thanks

Francis

[Hodge71 665]

Thought i had the answer for ya but unfortunately my Walboro is a fixed jet unit and I can't be of assistance. . Someone with may more knowledge will be along to help you I'm sure

[Kai Thomsen 17]

http://gardentractorpullingtips.com/images/walbro.jpg

[rmaynard 16,221]

 Number 1 is the idle speed adjustment, and number 2 is the low speed adjustment, 3 is the main jet

Edited February 2, 2014 by rmaynard

[Wheel-N-It 2,976]

Bob Maynard is correct. You may need to remove both the high speed and low speed needles and clean them, plus take a can of spray brake cleaner and spray down in the passageways. Not the whole can, just a little bit.

[persof 14]

Thanks!

[oaktown1987 82]

All walbro carbs that came on magnums have fixed main jets aka high idle

Sent from my iPhone using Tapatalk

They did that for emission purposes

Sent from my iPhone using Tapatalk

The k series had Carter's and kohlers later kohler bought rights to carter carbs for the k

Sent from my iPhone using Tapatalk

[tunahead72 2,536]

Francis,



Look around in the Manuals section for a different Kohler manual.  You should be able to find one that shows both the Kohler and the Walbro carbs.  I know there's an owner's manual for the K-series engines that shows them all, and gives instructions for adjusting them.  I'll check back later and give you a direct link if you don't find one by then.
